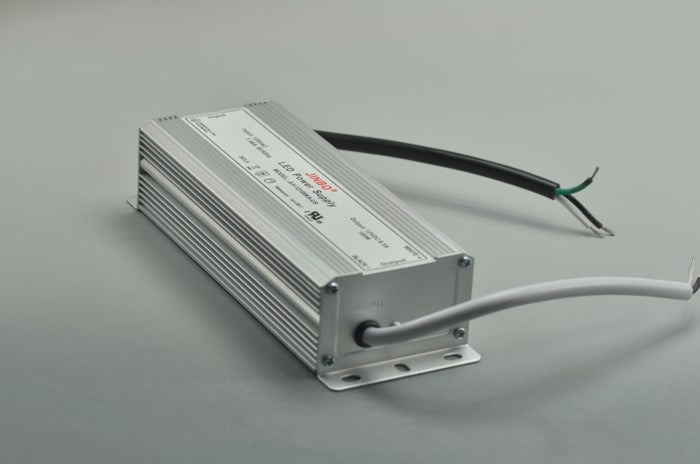

100 Watt LED Power Supply 12V 8.33A LED Power Supplies Waterproof UL Certification For LED Strips LED Light
$44.99
| Model | GY-PS-JB-W-100-12 | ||||
| Output | Dc Voltage | 12V | |||
| Rated Current | 8.33A | ||||
| Rated Power | 100W | ||||
| Ripple&Noise | 180mvp-p | ||||
| Voltage ADJ.Range | 10.8-13.2V | ||||
| Voltage Tolerance | ±1.0% | ||||
| Line Regulation | ±0.5% | ||||
| Load Regulation | ±1.0% | ||||
| Setup,Rise Time | 300ms,50ms/230VAC 800ms,50ms/115Vac at full load | ||||
| Hold Up Time(typ.) | 90ms/230vac 12ms/115vac At Full Load | ||||
| input | Voltage Range | 120VAC | |||
| Frequency Range | 47-63Hz | ||||
| Efficiency(typ.) | 74% | ||||
| Ac Current(typ.) | 5.6A/115V Â 2.8A/230Vac | ||||
| Inrush current | Cold Start 25A/115Vac 50A/230V | ||||
| leakage Current | 3.5mA/240VAC | ||||
| Protection | Overload | 105-150% rated output power protection type:hiccup mode,recovers automatically after fault condition 115-135% rated output voltage |
|||
| Over Voltage | 115-135% rated output voltage | ||||
| Protection Type:hiccup mode,recovers automatically after fault condition | |||||
| environment | Working Temp |  -10~+60°c | |||
| Working Humidity | 20-90%rh non-condesing | ||||
| Storage Temp,Humidity |  -20~+85°c,10-95%rh | ||||
| Temp.Coefficient | ±0.03%°c(0-50°c) | ||||
| Vibration | 10-500hz | ||||
| Safety&EMC | safety standard | CE UL RoHS | |||
| withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | ||||
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH | ||||
| EMI Conduction&radiation | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC Standard | Design refer to GB9254,EN55022 Class A | ||||
| Dimension | L202*W72*H45mm | ||||
| Packing | 0.98kg | ||||
