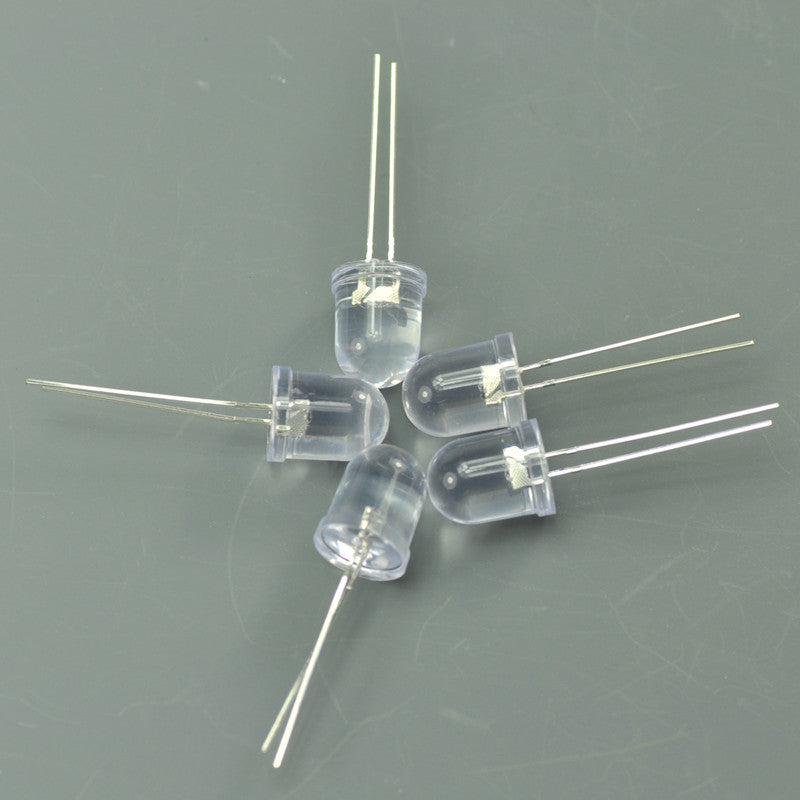

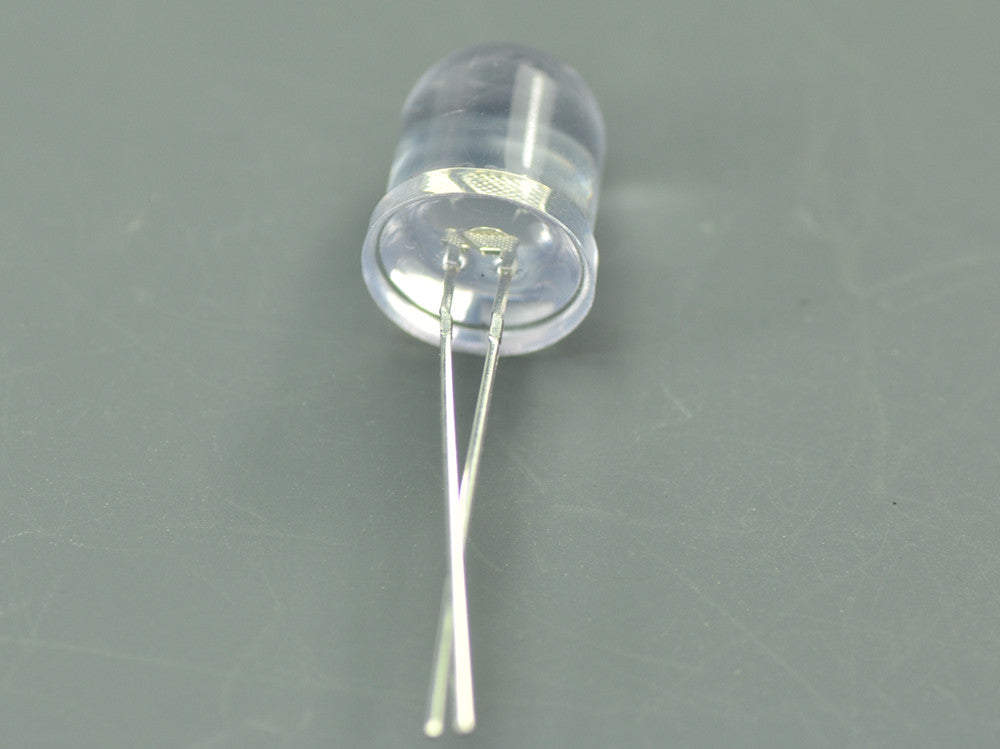

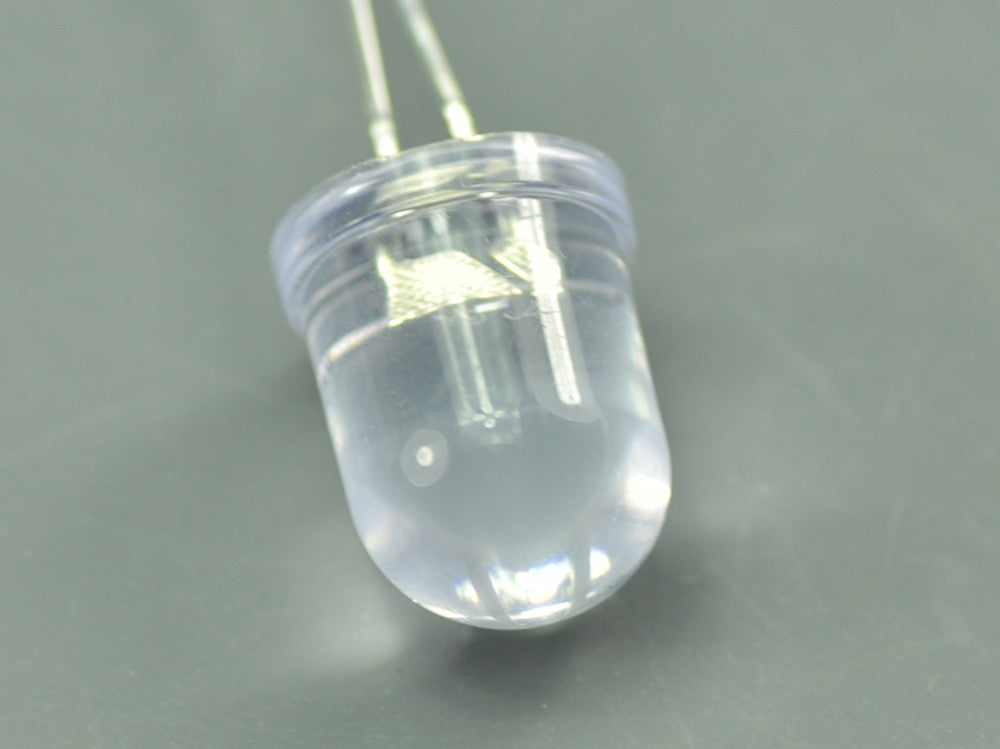

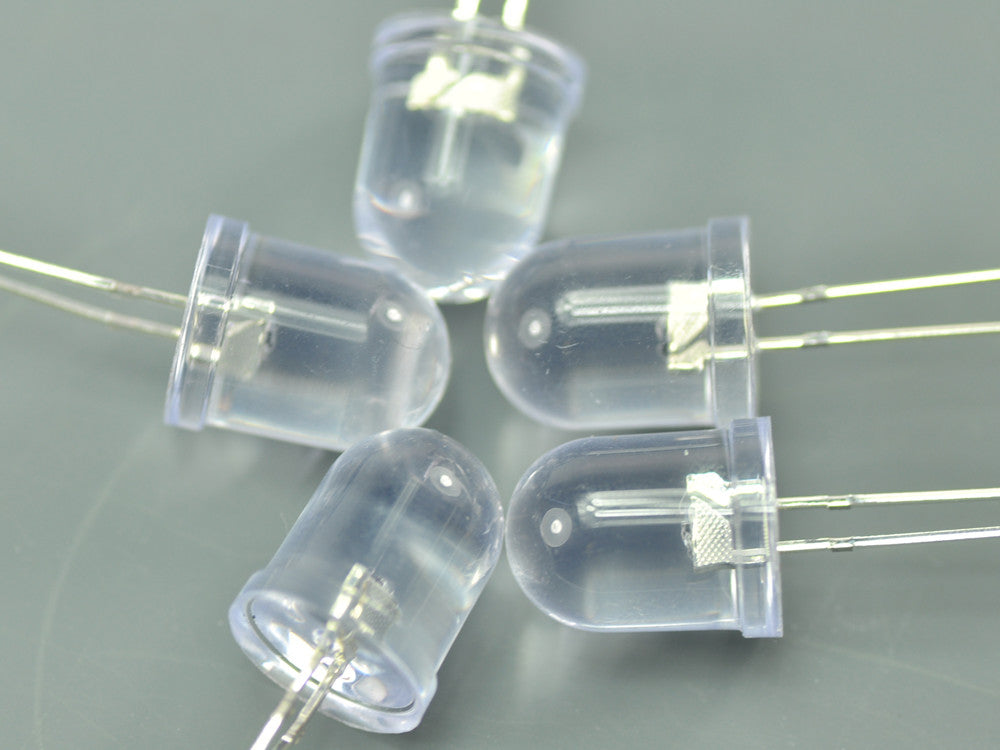

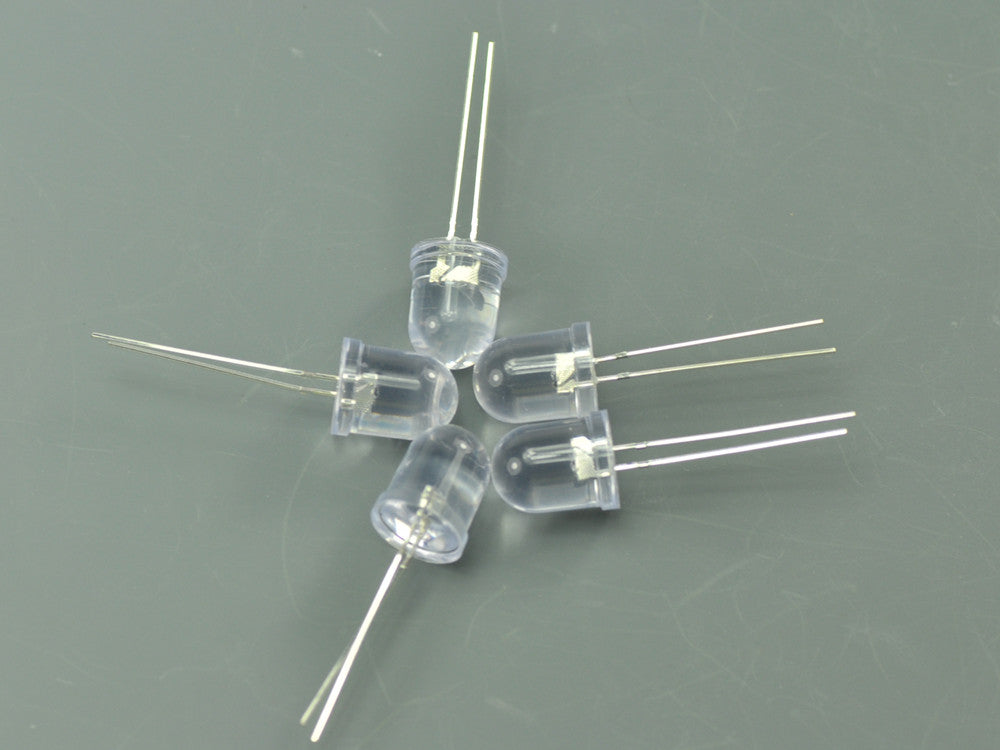

10mm Super Bright Straw Hat Led Lamp
$0.20
FEATURES:
New !
In excellent condition
Long lasting (Last up to 100000hours)
Low Power Consumption
Intensely Bright
Low Forward Voltage Operated
Instant Light (Less than 100ns)
SPECIFICATIONS:

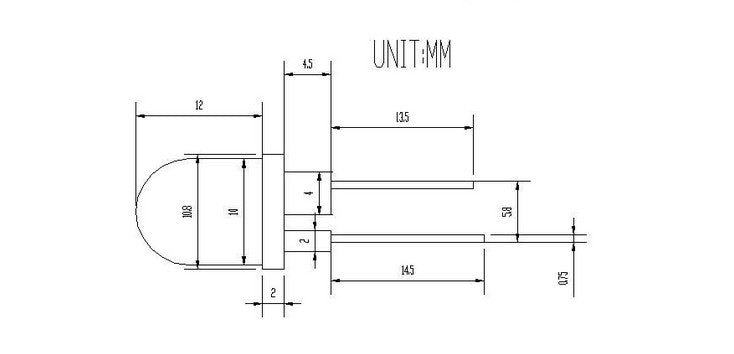

Led size: 10mm Â
Viewing Angel:12 Degree  Â
Source Material: InGaN

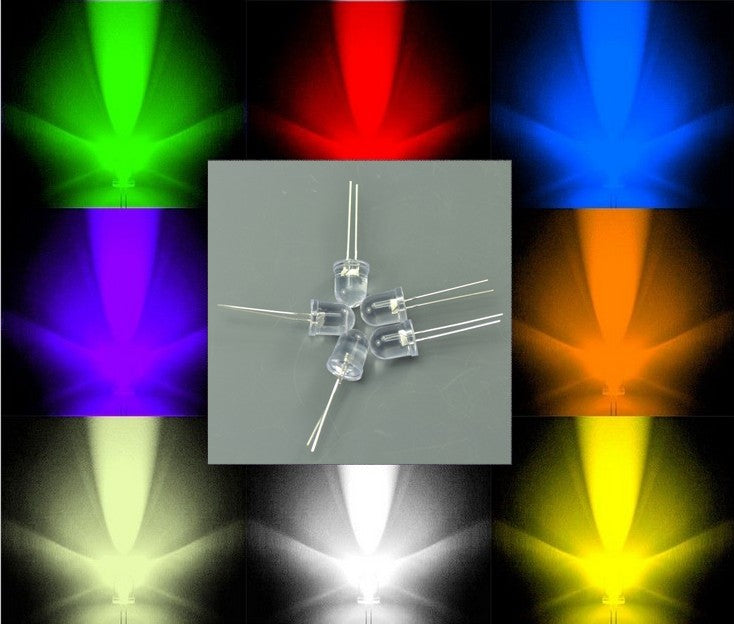

Emitting Colour:Amber
Luminous Intensity-MCD: Min:50000cd  Max: 70000 mcd
Reverse Voltage:5.0 V
DC Forward Voltage: Typical:2.0 V Max: 2.4V
DC Forward Current:20mA
Viewing Angle:12±6 degree
Lead Soldering Temp:260°C for 5 seconds
Intensely Bright
Absolute Maximum Ratings at Ta=25°C
| Items | Symbol | Absolute maximum Rating | Unit |
| Power Dissipation | PD | 100 | mW |
| Forward Current(DC) | IF | 20 | mA |
| Peak Forward Current* | IFP | 30 | mA |
| Reverse Voltage | VR | 5 | V |
| Operation Temperature | Topr | -40~85 | ℃ |
| Storage Temperature | Tstg | -10~100 | ℃ |
| Lead Soldering Temperature | Tsol | Max.260°C for 5 sec Max. (3mm from the base of the epoxy bulb) | |
*Pulse width≦0.1msec duty≦1/10
Electrical/Optical Characteristics at Ta=25°C
| Items | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Forward Dissipation | VF | IF=20mA | 1.80 | / | 2.40 | V |
| Reverse Current(DC) | IR | VR=5V | / | / | 10 | uA |
| Dominant Wavelength | λD | IF=20mA | 600 | / | 610 | |
| Luminous Intensity | IV | IF=20mA | 50000 | / | 70000 | mcd |
| 50% Power Angle | △θ | IF=20mA | / | ±6 | / | deg |
