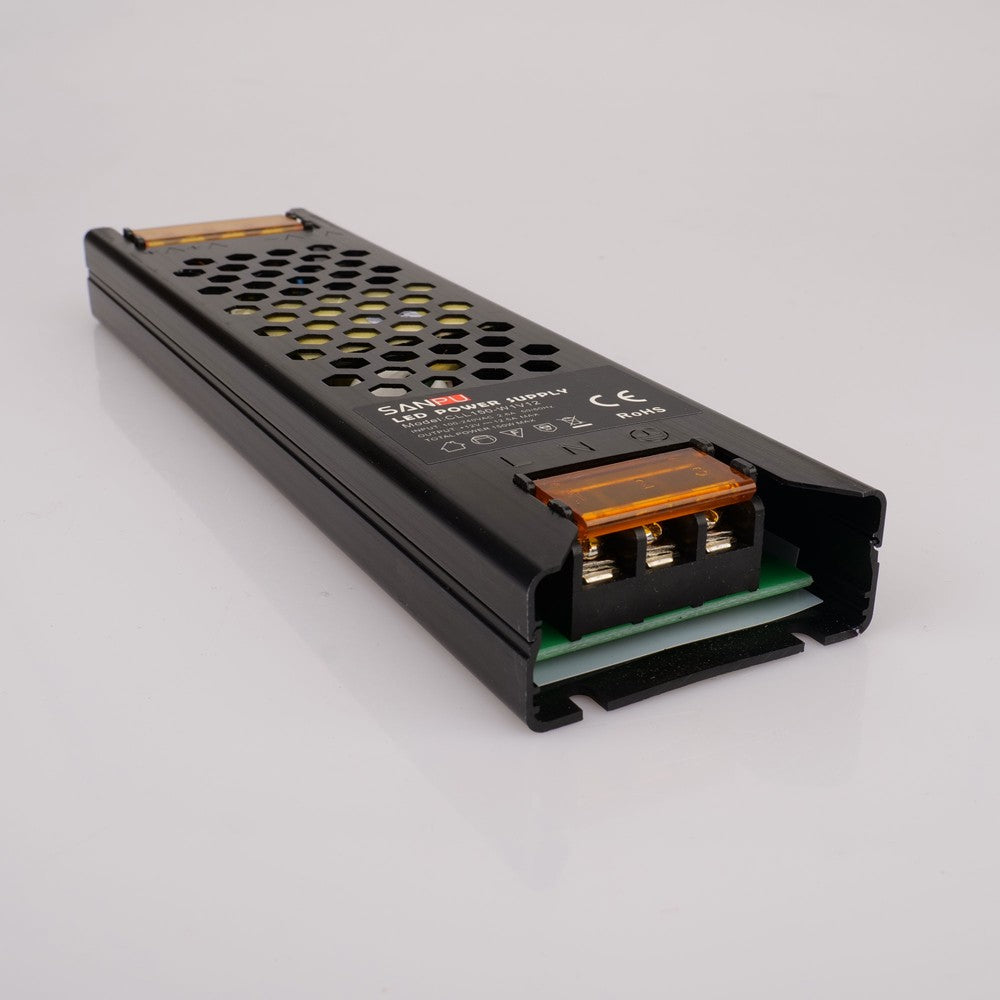

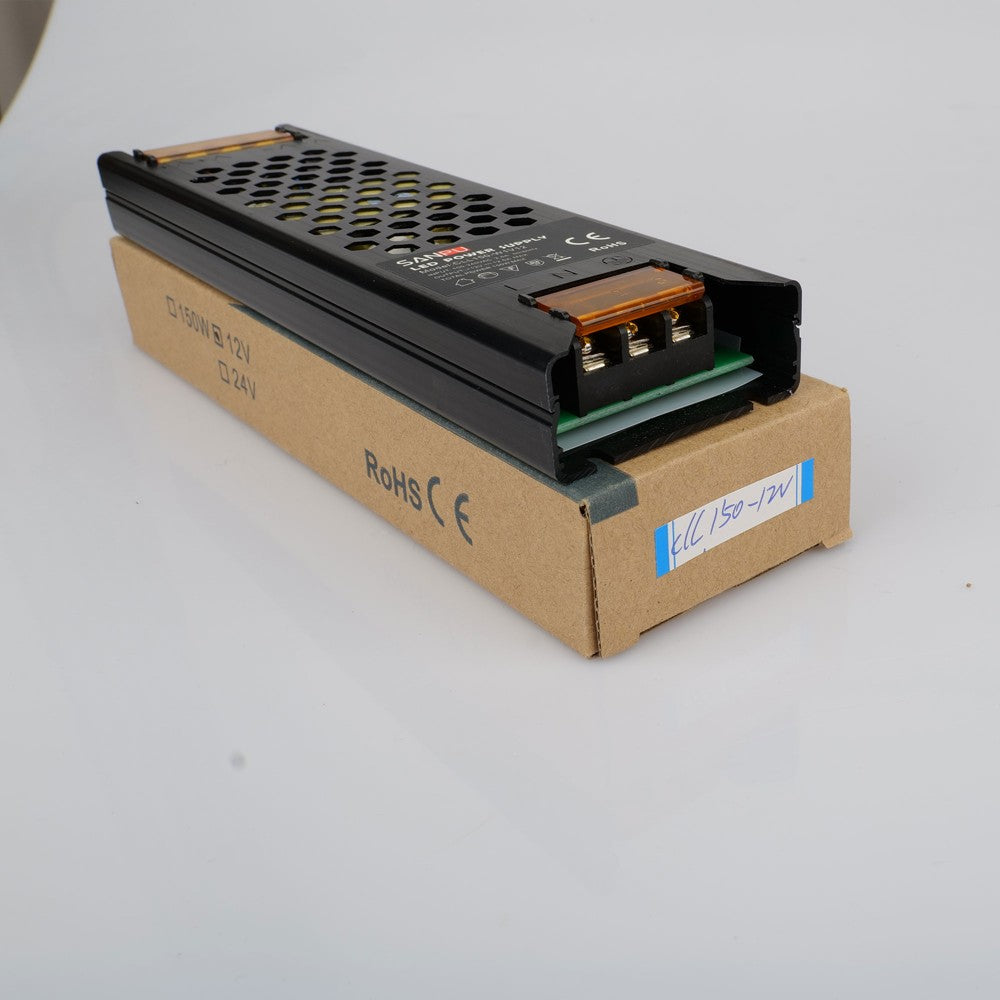

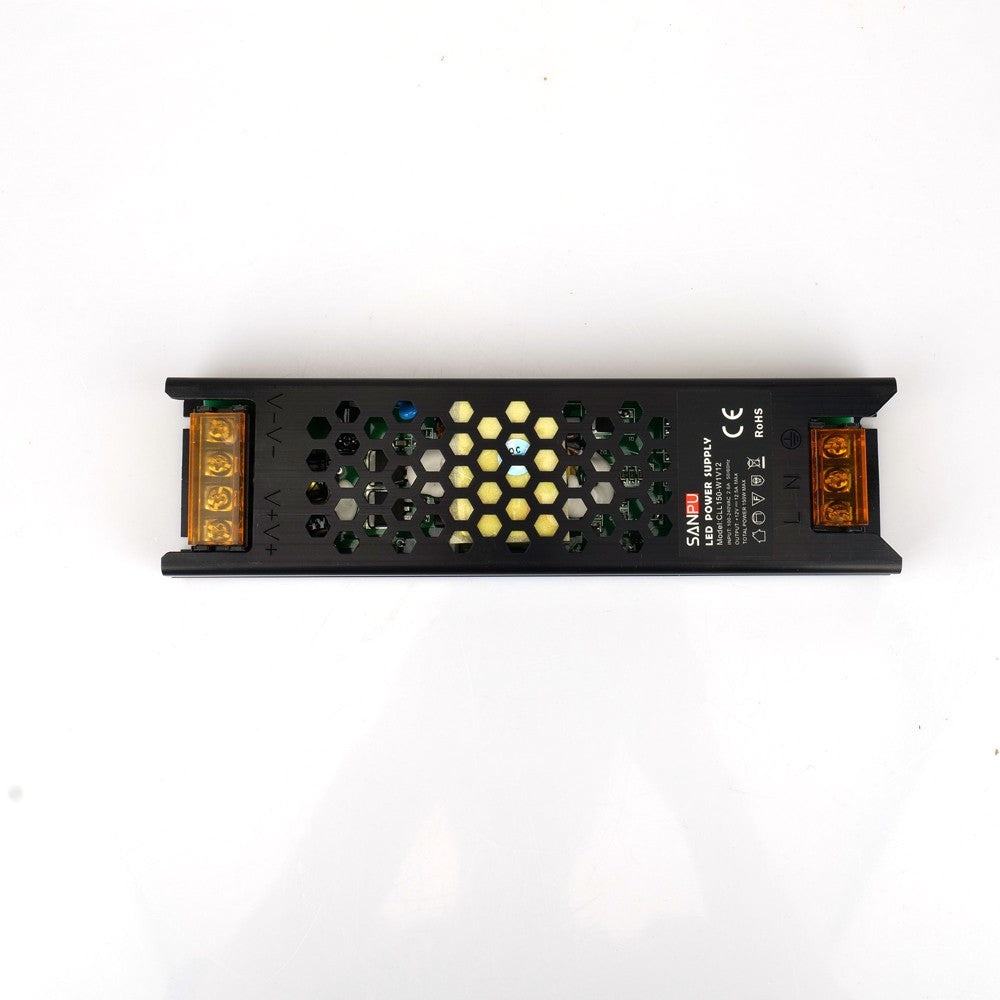

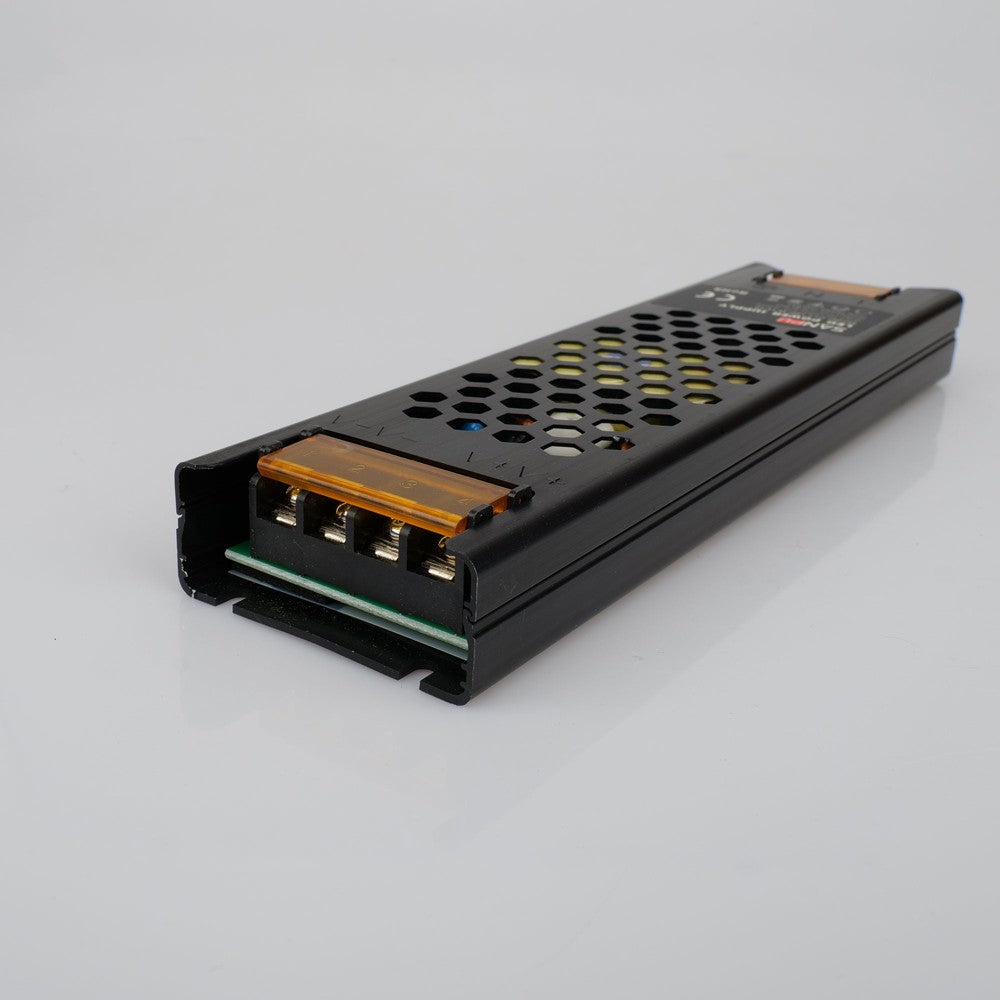

12V 150 WATT LED POWER SUPPLY 12.5A LED POWER SUPPLIES FOR LED STRIPS LED LIGHTING
$23.59
Skip to product information
Model CLL150-W1V12
Output Dc Voltage 12V
Rated Current 12.5A
Rated Power 150W
Ripple&Noise 180mvp-p
Voltage ADJ.Range 10.8-13.2V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup,Rise Time 300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
input Voltage Range 85-264VAC 120-370VDC
Frequency Range 47-63Hz
Efficiency(typ.) 74%
Ac Current(typ.) 5.6A/115V 2.8A/230Vac
Inrush current Cold Start 25A/115Vac 50A/230V
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environment Working Temp -10~+60°c
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity -20~+85°c,10-95%rh
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10-500hz
Safety&EMC safety standard CE RoHS
withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiation Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022 Class A
Dimension L202*W55*H22mm
Packing 0.35kg
