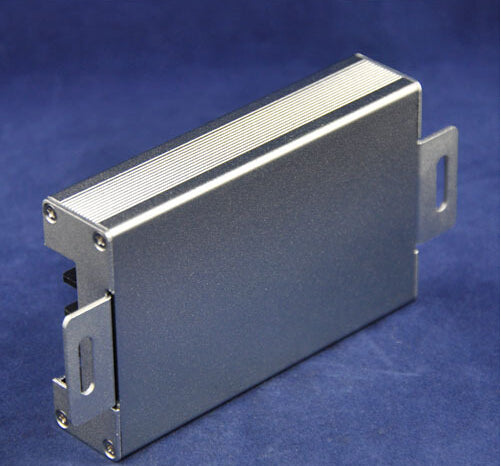

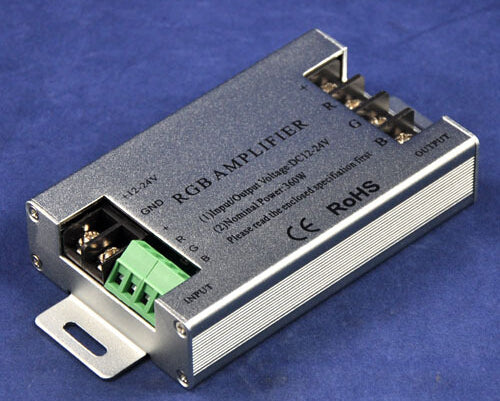

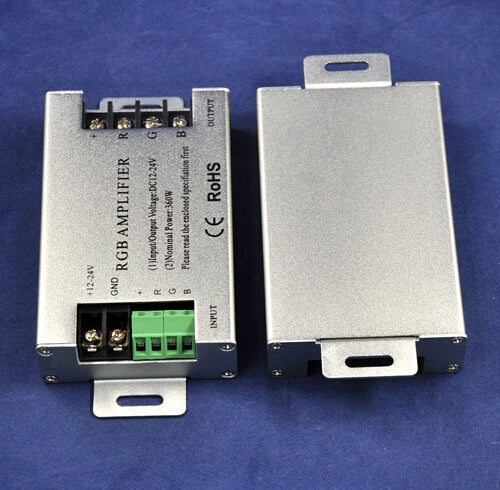

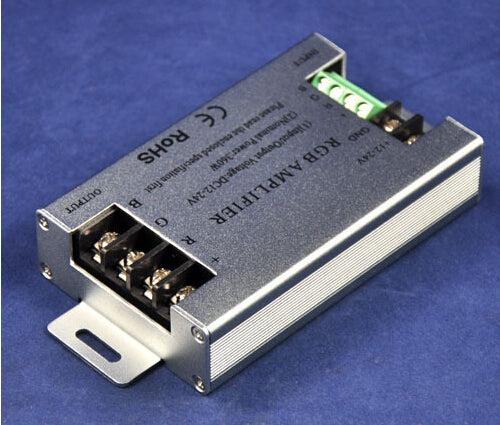

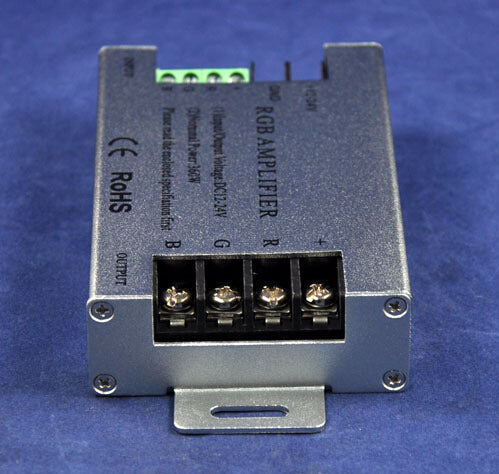

12V-24V 12A LED RGB Amplifier Common Anode LED Amplifier For 5050 SMD RGB LED Strip Light Bulb
$11.50
Skip to product information
12V-24V 12A LED RGB Amplifier Common Anode LED Amplifier For 5050 SMD RGB LED Strip Light Bulb
$11.50
Details:
RGB amplifier applies to all the voltage-controlled LED controller in our company,
it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier,
the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.
Specification:
working temperature: -20 to 60 degree
supply voltage: DC12V-24V
output: three CMOS drain-open output
connection mode: common anode
product dimension:L128ΧW63ΧH23mm
packing size: L133ΧW76ΧH28mm
net weight: 130g
gross weight: 150g
MAX. output current: 10A each color
Package:
1 * LED RGB Amplifier
