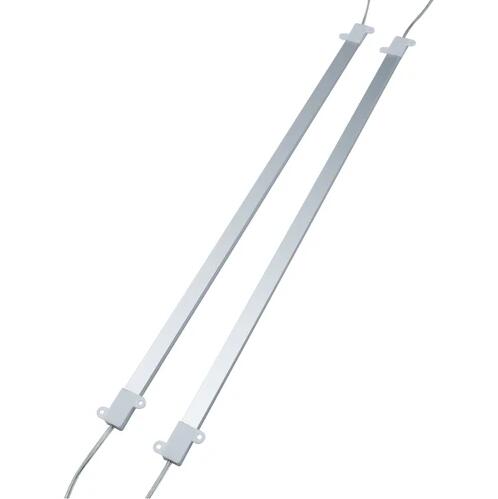

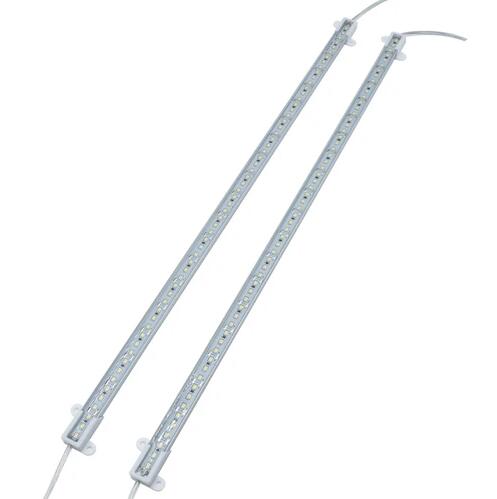

12VDC Waterproof IP65 SMD2835-36-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 36LEDs 4W per piece
Infrared 850NM
$15.95
Skip to product information
LEDLIGHTSWORLD infrared 850nm/940nm LED Linear Rigid Light Strip. This Waterproof IP65 LED Aluminum Shell Rigid Light Strip is sold 50cm long per piece. It's a 12VDC operation. Dimmable with compatible LED dimmers. Customized lengths accept.
Technical Specification
Wattage 4
Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD2835 Strip Section 3LED per 1.93inch
WxH 14x7(mm) (not include end cap size) LED QTY.: 36LED/pc
Length Available 500mm (customized length available)
Available Color 850nm and 940nm
Protection Grade Waterproof IP65
Finish Color Silver
Other Features
Item 12VDC Waterproof IP65 SMD2835-36-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 36LEDs 4W per piece
Weight 150g/pc

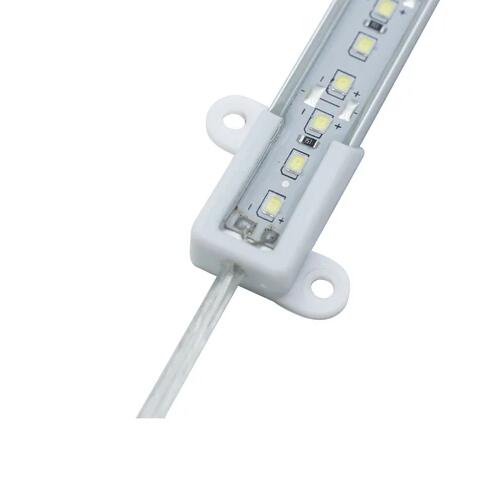

Mounting The light bar end cap with hole on it, can use screw that provided to fix on to object surface.

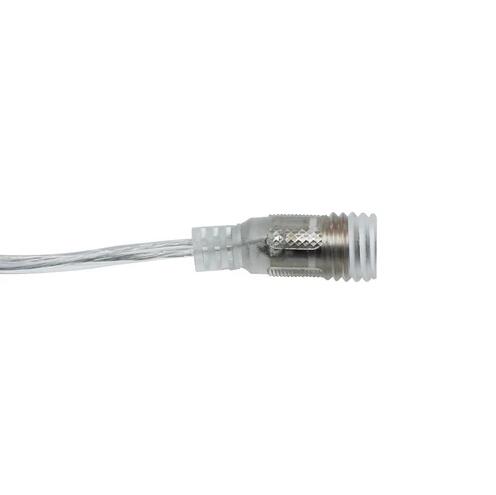

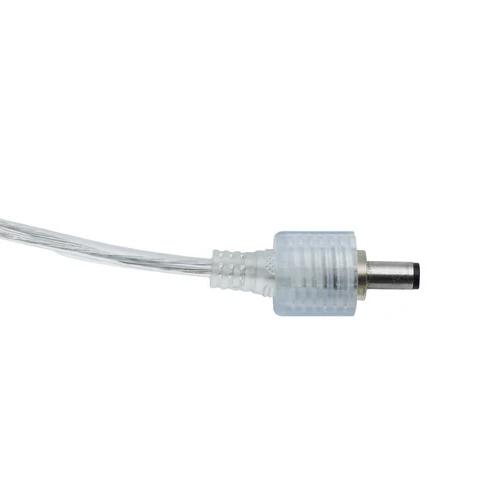

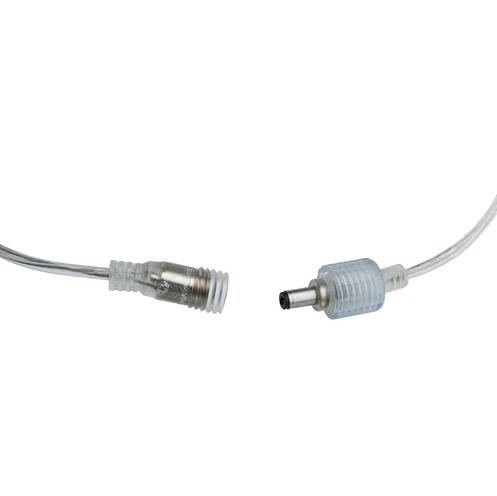

Accesssories Solder with DC5.5x2.1*(mm) plug connector at both ends, one end with female, the other end with male.
Lead V+ and V-, polarities sensetive
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips. directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
Installation Planning
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
