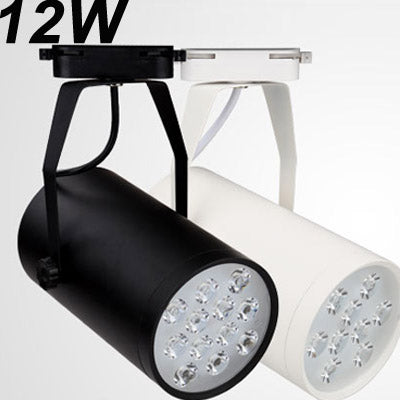

12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight

12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight

Pure White(6000-6500K) / White / With Driver
$31.40
Skip to product information
12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight
  • 12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight
  • 12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight
  • 12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight
  • 12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight
12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight

12W LD-DL-GLB-01-12W LED Track Light LED 12*1W LED Track Lamp Diameter 100mm LED Spotlight

$31.40
LED Color
ColorWhite
Driver and Dimmable
724Light LD-DL-GLB-01-12W series 12W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, info@724light.com)
Product Specifications
Part number: LD-DL-GLB-01-12W
Surface Diameter: 100mm
Power Consumption: 12W
Operating Voltage: 110~250VAC
Body Material: Aluminum +Plastic
Replacement For: 18W CFL
Body Color: White/Black
LED Color: Pure White(5500-6500k),Warm White(3000-3400k)
Lumen: 1020 Lumens
LED Type: Epistar Chip
LED Quantity: 12*1W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens: Frosted
Lifetime: 50000 Hours
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 Years
Weight : 0.55 kg
Dimensions(D*H): 100mm x 187mm
Packaging list : 1* LED Downlight
1* LED Driver
Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install


LD-DL-GLB-01 Series LED Down Light
Part Number Wattage Color Dimension(D*H) Shell Color LED
3W
Pure wthite
Φ55mm*103mm
Black
3*1W
3W
Warm White
Φ55mm*103mm
White
3*1W
5W
Pure wthite
Φ70mm*130mm
Black
5*1W
5W
Warm White
Φ70mm*130mm
White
5*1W
7W
Pure wthite/Warm White
Φ70mm*130mm
Black/White
7*1W
12W
Pure wthite/Warm White
Φ100mm*187mm
Black/White
12*1W
18W
Pure wthite
Φ120mm*200mm
Black
18*1W
18W
Warm White
Φ120mm*200mm
White
18*1W
