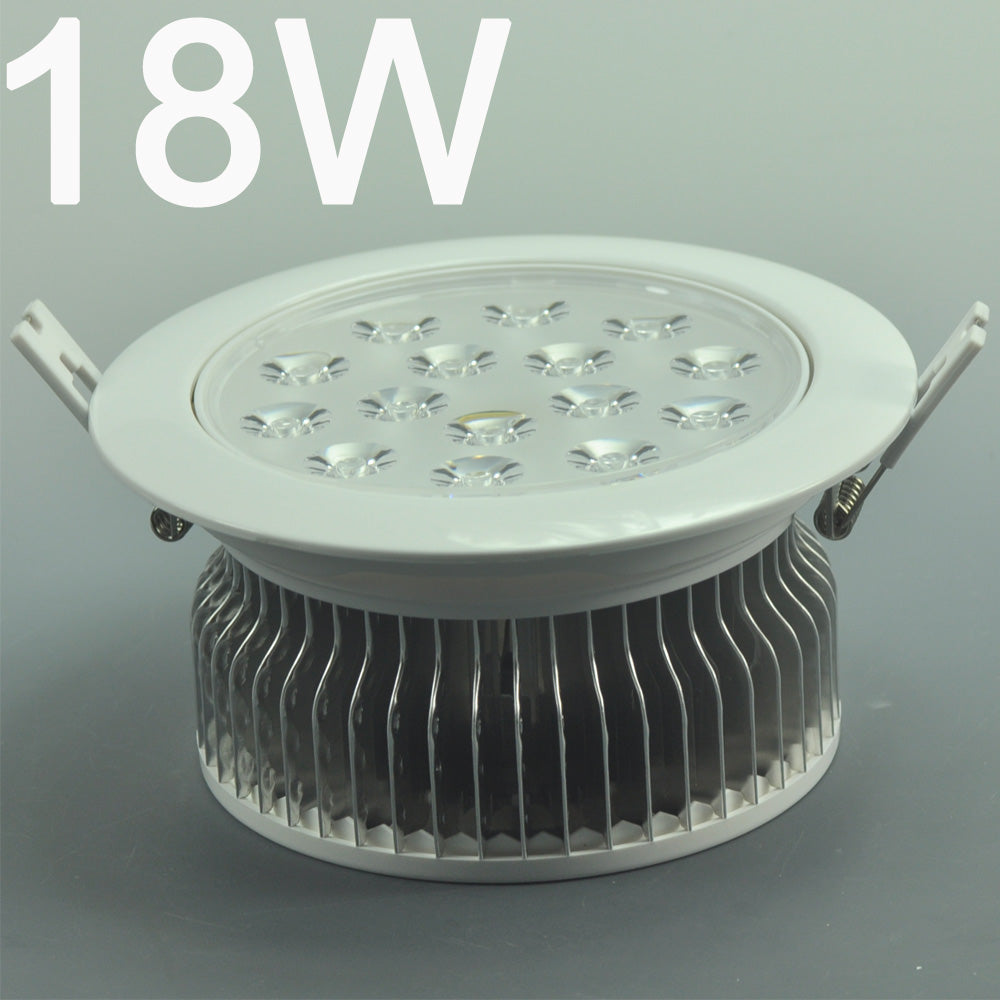

18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light

18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light

Pure White(6000-6500K) / With Driver
$44.60
Skip to product information
18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light
18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light

18W LD-CL-CPS-01-18W LED Down Light Cut-out 137mm Diameter 6.3" White Recessed Dimmable/Non-Dimmable LED Down Light

$44.60
LED Color
Driver and Dimmable
724Light LD-CL-CPS-01 series 18W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, info@724light.com)
Product Specifications
Part number: LD-CL-CPS-01-18W
Cut-out: Φ137mm
Surface Diameter: 6.3"(160mm)
Power Consumption: 18W
Operating Voltage: 100~277VAC
Body Material: Aluminum+Plastic
Replacement For: 27W CFL
Body Color: White
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 1530 Lumens
LED Type: Epistar Chip
LED Quantity: 18*1W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens: Frosted
Lifetime: 50000 Hours
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 Years
Weight : 0.309 kg
Dimensions(D*H): 160mm x 78mm
Packaging list : 1* LED Downlight
1* LED Driver
Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install


LD-CL-CPS-01 Series LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ87mm*51mm
Φ70mm
3*1W LED
0.083kg
5W
Pure wthite/Warm White
Φ108mm*62mm
Φ92mm
5*1W LED
0.137kg
7W
Pure wthite/Warm White
Φ108mm*62mm
Φ92mm
7*1W LED
0.137kg
9W
Pure wthite/Warm White
Φ138mm*63mm
Φ110mm
9*1W LED
0.213kg
12W
Pure wthite/Warm White
Φ138mm*63mm
Φ110mm
12*1W LED
0.213kg
15W
Pure wthite/Warm White
Φ160mm*78mm
Φ137mm
15*1W LED
0.309kg
18W
Pure wthite/Warm White
Φ160mm*78mm
Φ137mm
18*1W LED
0.309kg
21W
Pure wthite/Warm White
Φ190mm*78mm
Φ160mm
21*1W LED
0.422kg
24W
Pure wthite/Warm White
Φ190mm*78mm
Φ160mm
24*1W LED
0.422kg
