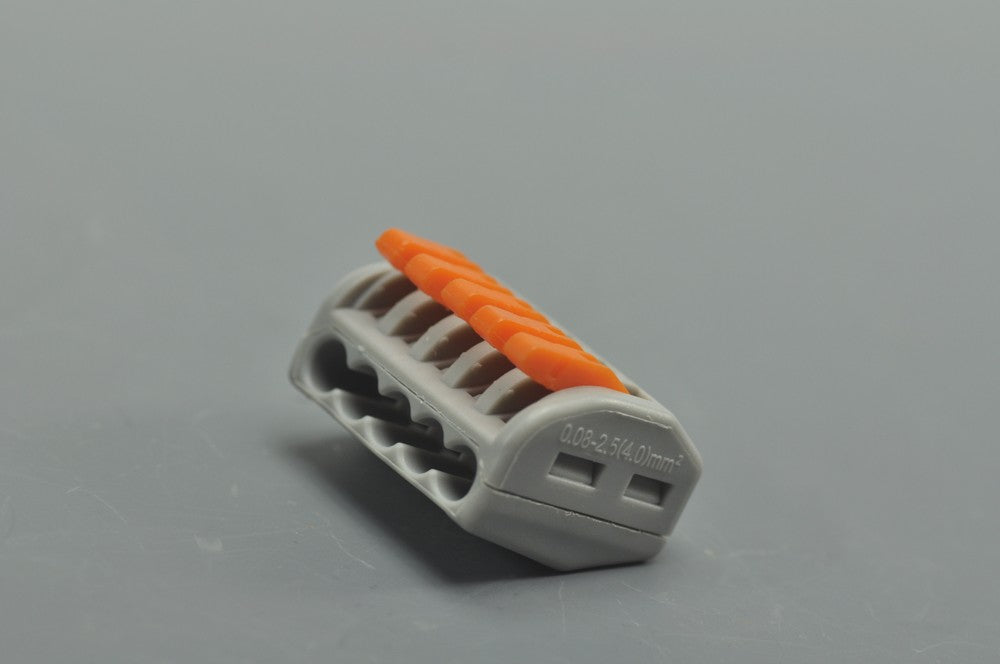

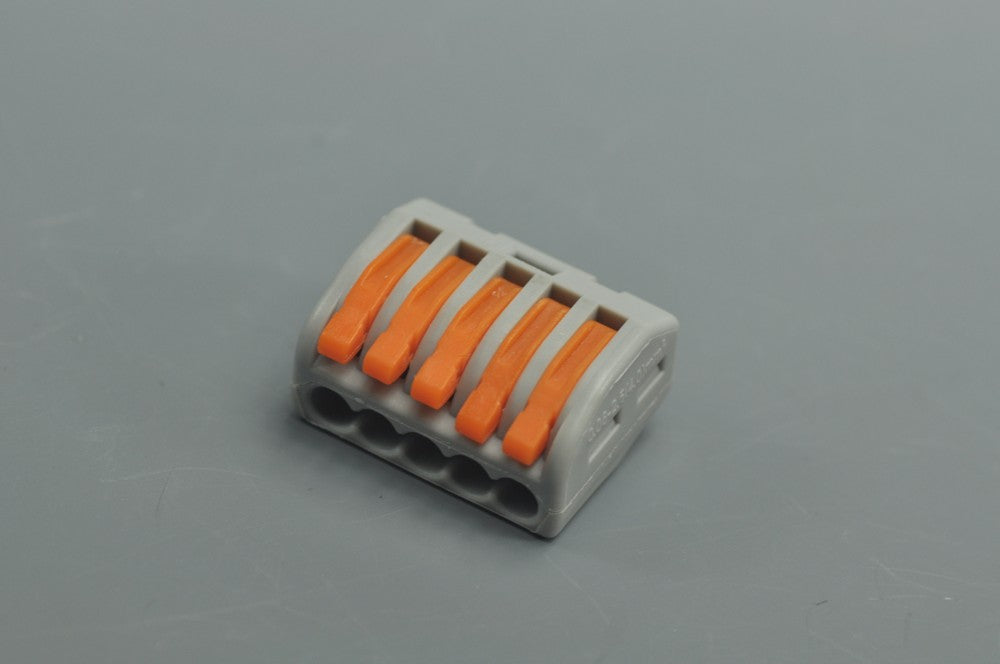

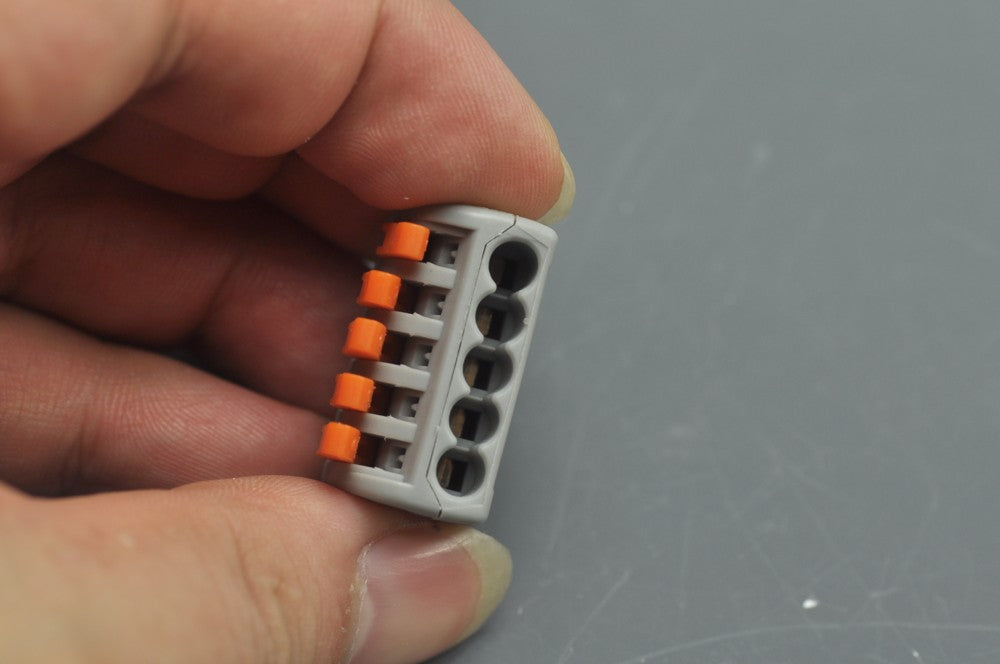

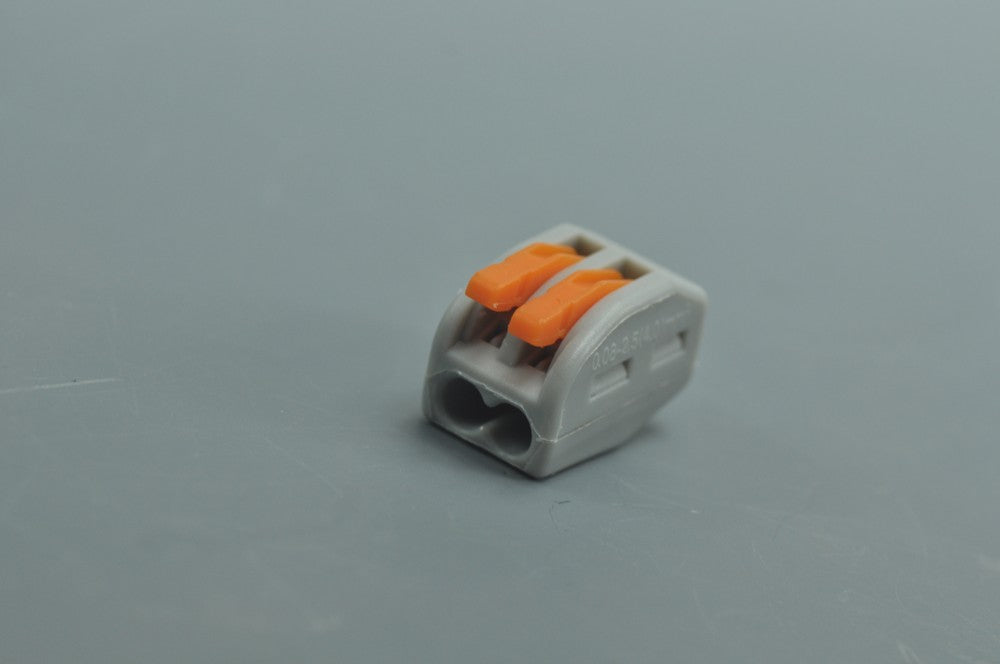

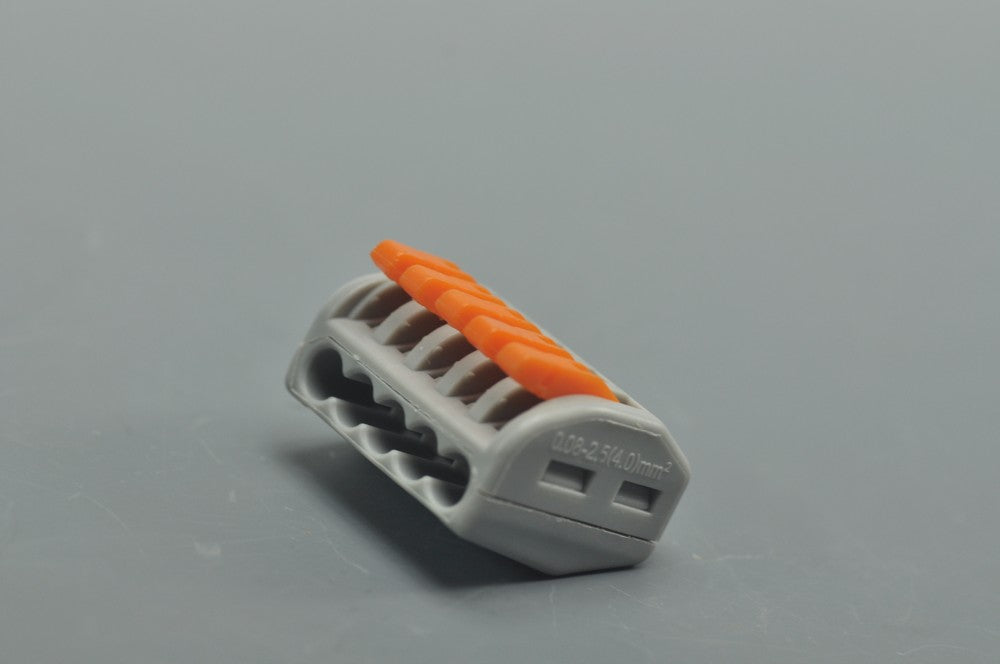

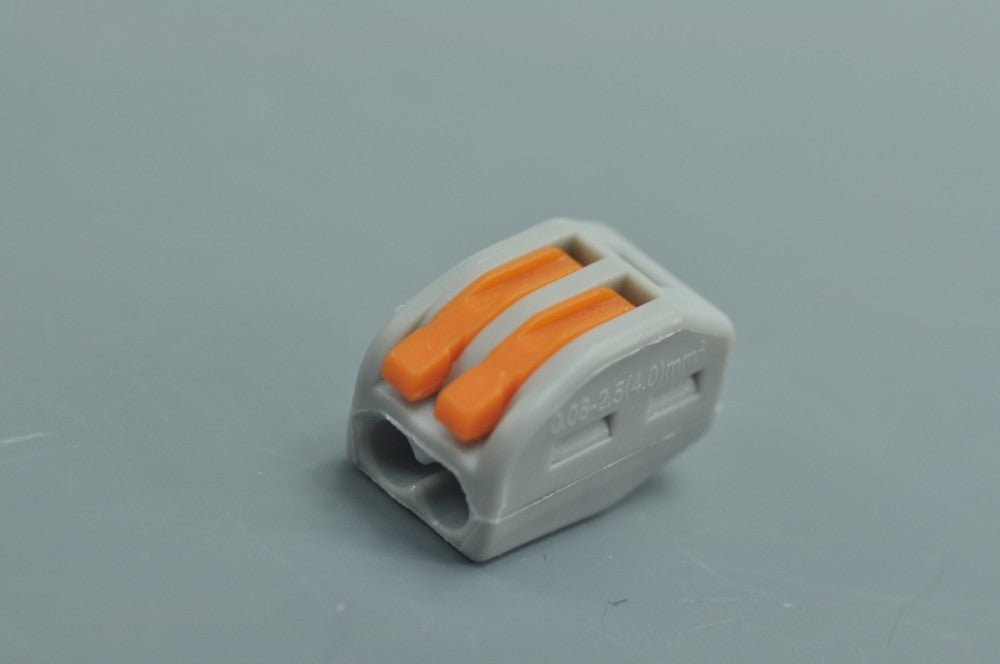

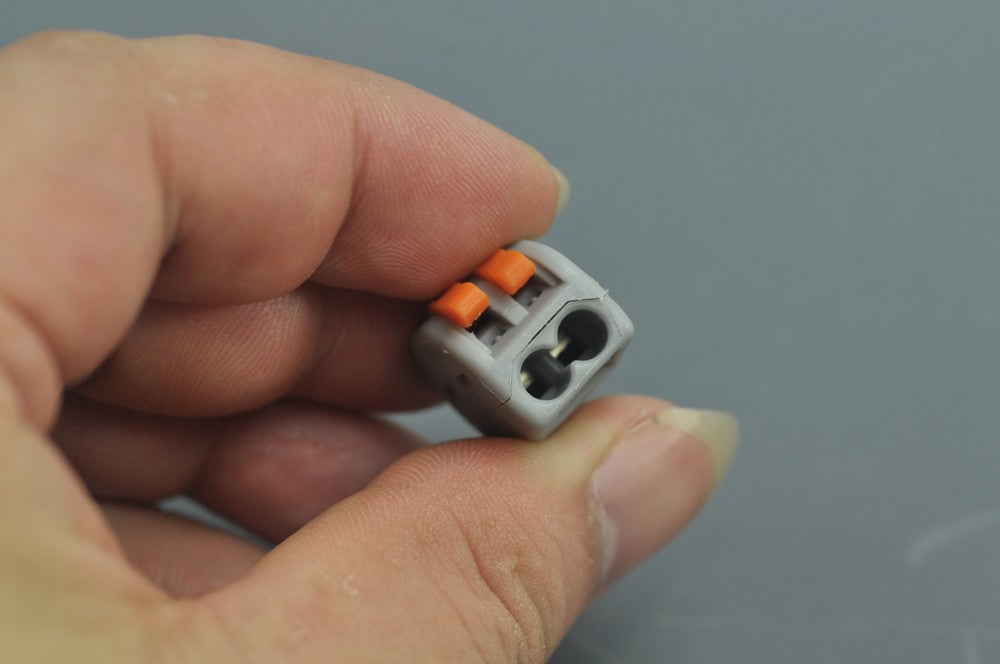

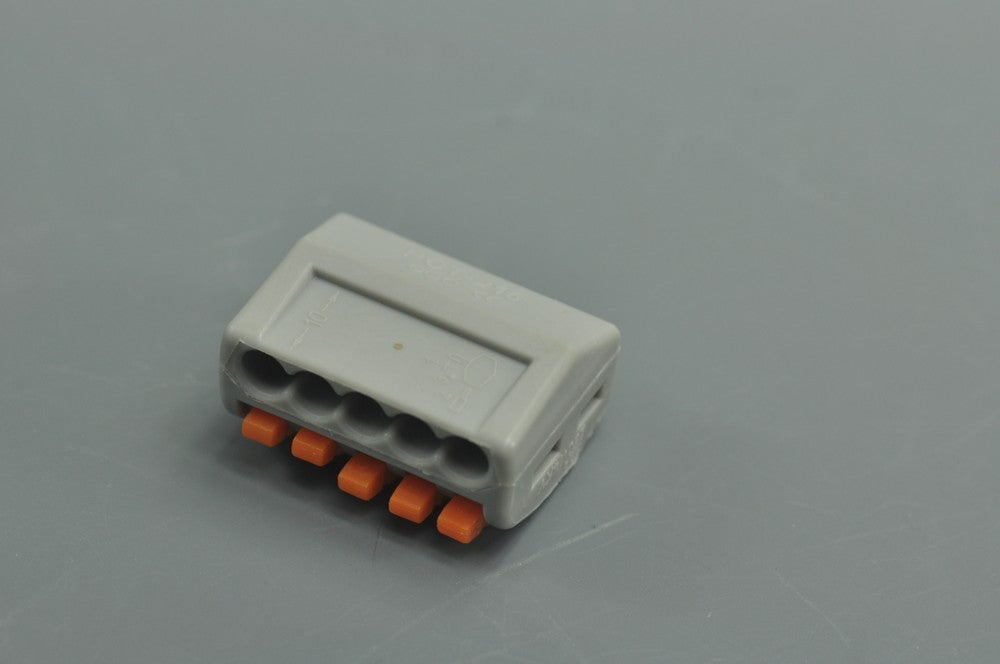

28-12 GA Lever-Lock Quick Connect Terminal Blocks
2PIN
$0.30
Skip to product information
Lever-Lock Quick Connect Terminal Block for 28 to 12 Gauge wire. Alternative solution for traditional wire nuts to create quicker and more secure wire connections. Insert stripped wires and close the lever to secure wire and create a common connection between the other terminals, no tools required. Available with 2, 3 or 5 conductor terminals.
28-12 GA Lever-Lock Quick Connect Terminal Blocks
$0.30
2pin:
Rated voltage:400V
Rated current:32A
Rated Power:7KW
[Wire] single , hard wire 0.08-2.5mm2
    Multi-strand flexible wire 0.08-4mm2
Stripping Length 10mm
Dimensions:20.5mm(L) * 12.4mm(W) * 14.5mm(H)
3pin:
Rated voltage:400V
Rated current:32A
Rated Power:7KW
[Wire] single , hard wire 0.08-2.5mm2
    Multi-strand flexible wire 0.08-4mm2
Stripping Length 10mm
Dimensions:20.5mm(L) * 17mm(W) * 14.5mm(H)
5pin:
Rated voltage:400V
Rated current:32A
Rated Power:7KW
[Wire] single , hard wire 0.08-2.5mm2
    Multi-strand flexible wire 0.08-4mm2
Stripping Length 10mm
Dimensions:20.5mm(L) * 26.6mm(W) * 14.5mm(H)
