$69.20
LED Color
Kits Bar Quantity
724Light LD-RG-SH009-Kit100 series 39.3inch(1000mm) 18W LED Bar Fixture uses high power SMD 5630 LEDs to produce up to 2520lumens/bar. The LD-RG-SH009-Kit series is ideal for cabinet , stairs, parking lots, garages, tunnels, or any other house Interior . Safe 12V DC operation , 100% 6030 aluminium channel . Available in Pure White and Warm white with wide flood 120 degree beam patterns. support custom desgin(info@724light.com)
Product Specifications
Part number: LD-RG-SH009-Kit100
Wattage: 18W/pcs
Compares to: 30W Fluorescent
Kits include Bar: 4/5/6 pcs optional
Color Temperature: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 2520 Lumens/bar(35Lumens/leds)
LED Type: SMD 5630
LED Quantity: 1*72PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+50 °C
Materials: Aluminum/Stainless Steel
Operating Voltage: 12 DC
Length: 39.3inch(1000mm)
Wire Connector: 2000mm OneSide 2Pin Power Cord with connector
Lifetime: 40000 Hours
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight(Net): 0.22kg/bar
Dimensions(LxWxH): 39.3inch(1000mm) x 16mm x 16mm
Package Weight:
Install : direct install with power supply , clip and screw

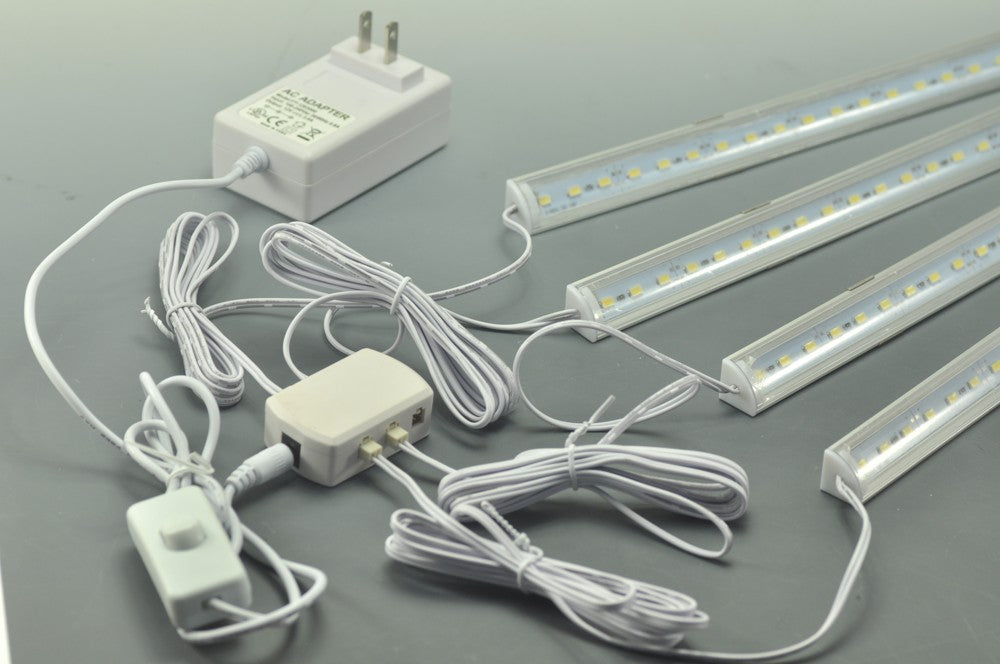

Packaging list:
1)LED Bar (according your choose pcs)
2)LED Power Supply (according your choose pcs )
  • 4PCS--12V 6A
  • 5PCS--12V 8A
  • 6PCS--12V 10A

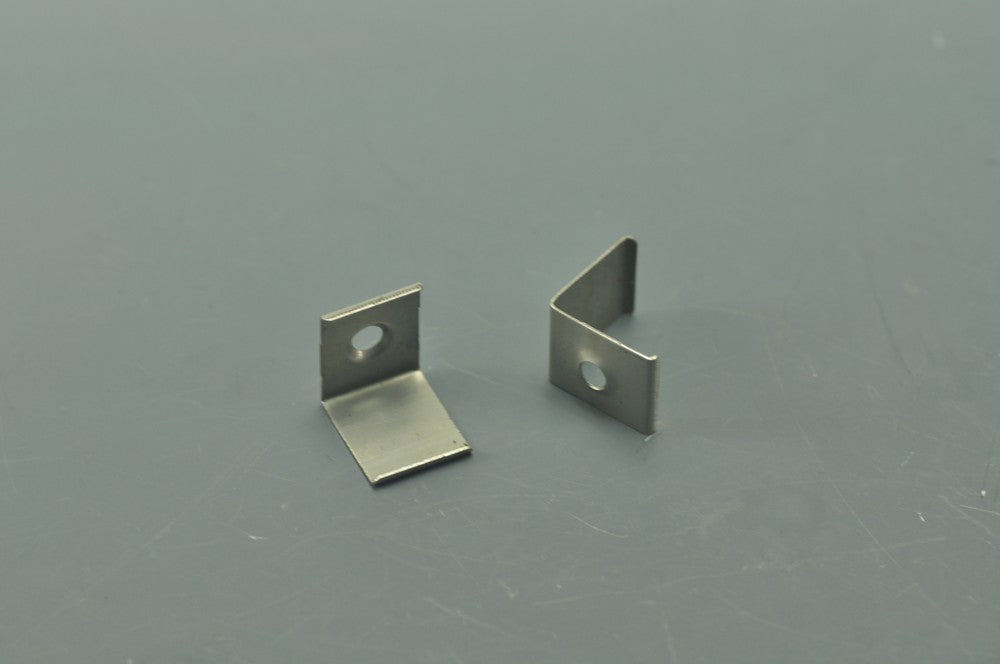

3)Install Clip and screw

ALL LD-RG-SH009 Series (One pcs Bar)

Part Number Length Lumens Watts Compares to LEDS Weight
LD-RG-SH009-Kit033 13inch(330mm) 840 Lumens 6W 10W Fluorescent 24 Pcs 5360LEDs 0.073Kg
LD-RG-SH009-Kit050 19.7 inch(500mm) 1260 Lumens 9W 15W Fluorescent 36 Pcs 5360LEDs 0.11Kg
LD-RG-SH009-Kit100 39.3inch(1000mm) 2520 Lumens 18W 30W Fluorescent 72 Pcs 5360LEDs 0.22Kg
