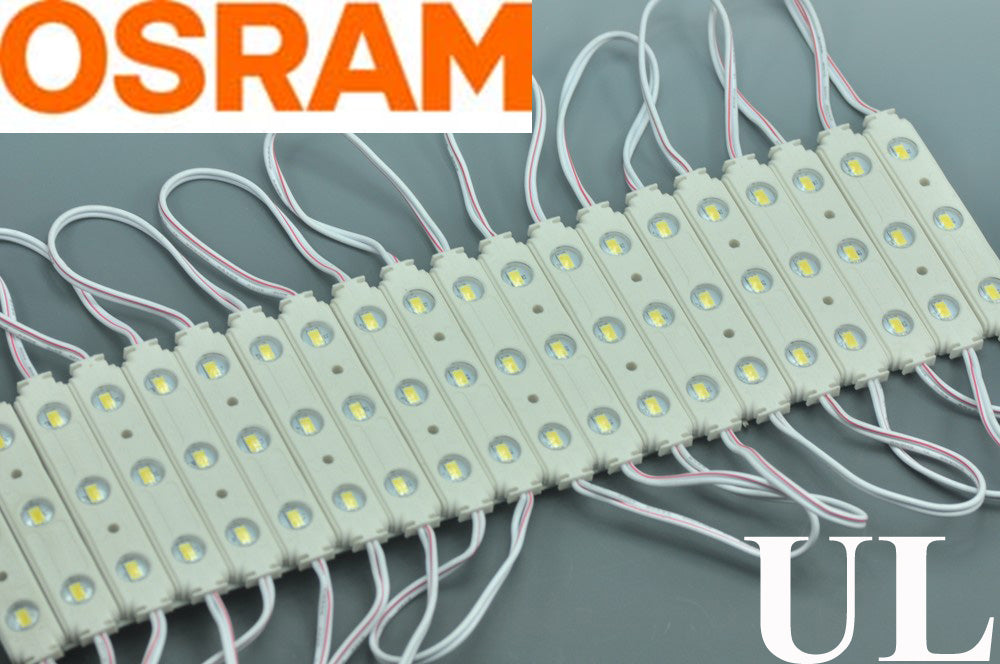

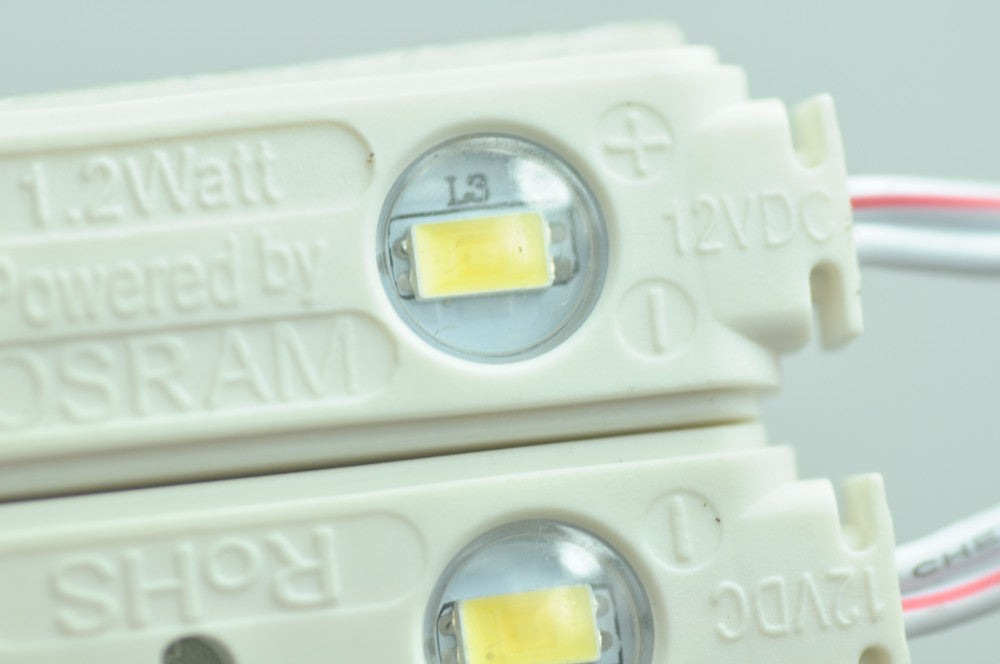

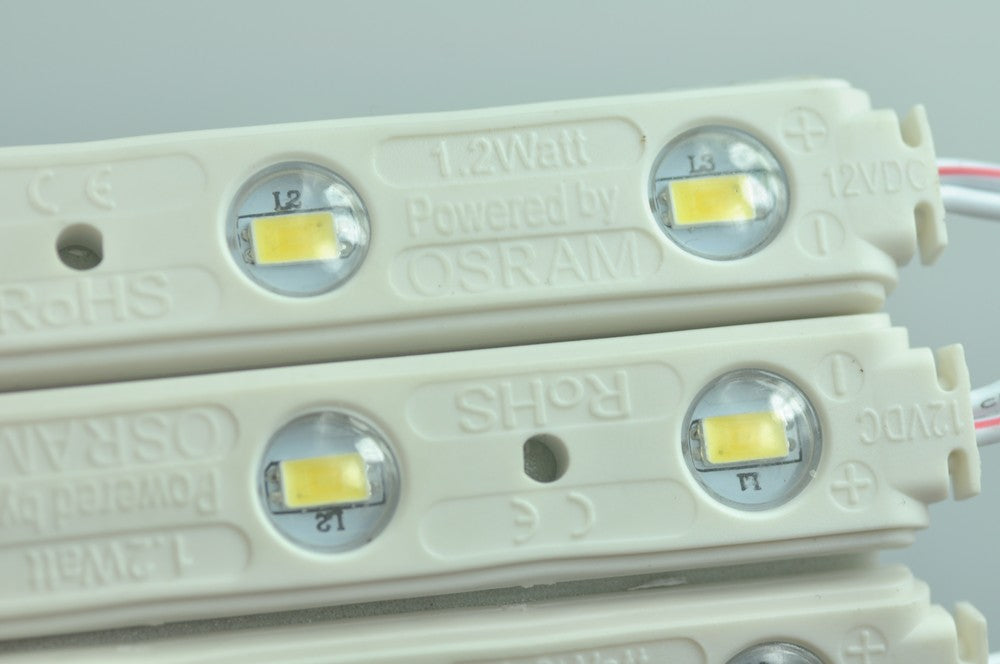

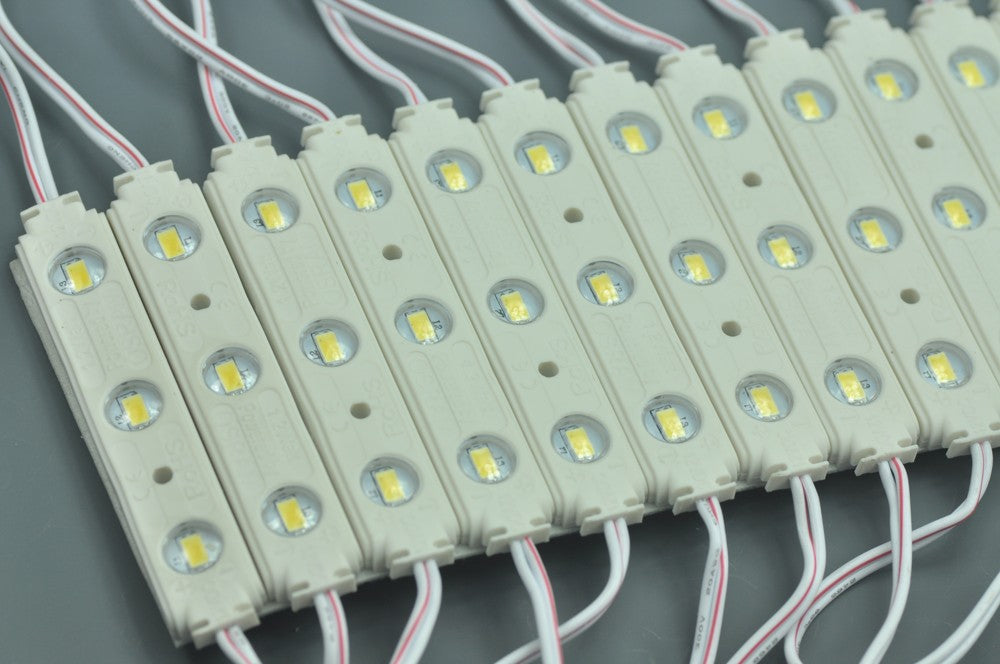

5630 Osram LED Modules 78mm*15mm SMD5630 12V 1W Osram LED Modules Light

Parameter

• LED type:Osram SMD5630 150mA 57Lm/LED

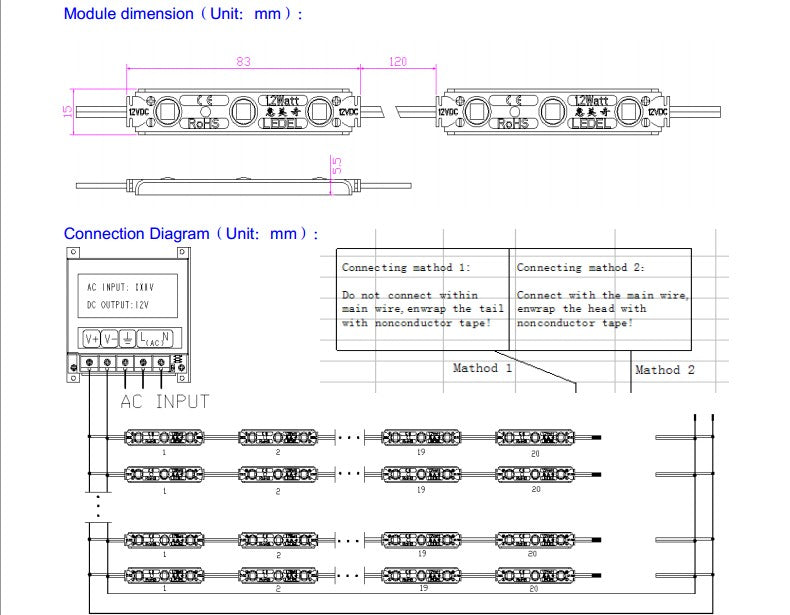

• Physical dimension：78mm*15mm*5mm
• Power consumption：1.20Watt
• Emitting color：Pure white 6000~7000Kelvin
• Beam angle：120 degrees
• Defend grade：IP66
• Weight：12.5KG/1000pcs
• Application：Backlights for channel letters
• LED quantity：1 piece
• Operating voltage：12VDC
• Operating temperature：-40oC ~ +70oC
• Luminous output each color：57.6 lumens per led, white
• Life span：50000 hours
• Driven mode：Constant voltage
• Package：20pcs per string

Product Feature

• 1.Osram 5630 SMD led as light source,super luminous flux.
• 2.large viewing angle with even light shadow.
• 3. lower light decay and long life span up to 35000 hours.
• 4.Low cost against high performance, good color uniformity.
• 5.Energy saving,environment-friendly.
• 6.Suitable for backlighting to channel letters and light boxes.
• 7. Suitable for accent lighting, edge lighting.
• 8. Waterproof, IP65, ideal for outdoor use
• 9. Easy installation and maintenance free.
