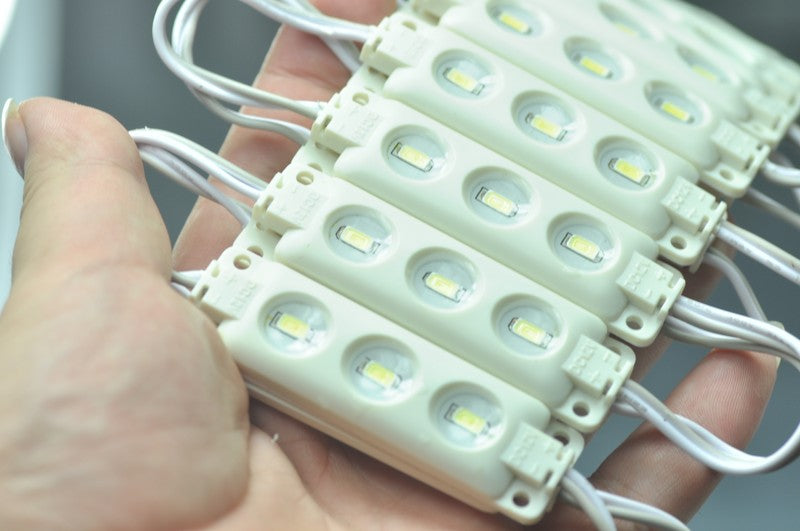

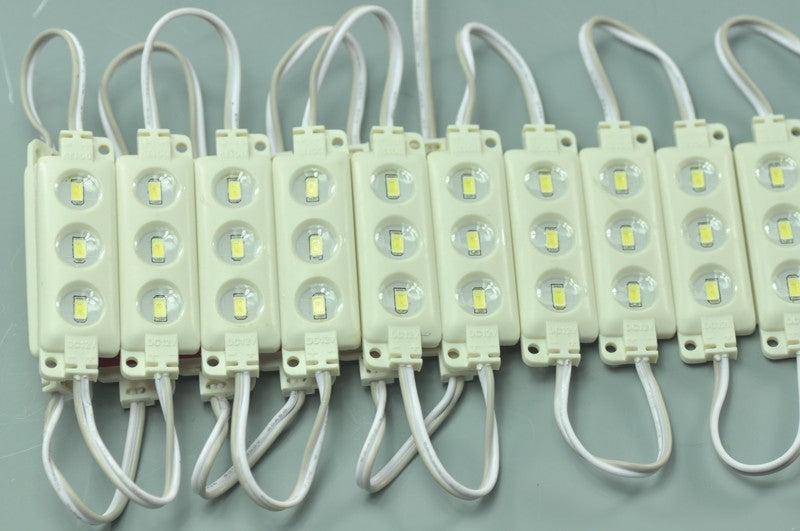

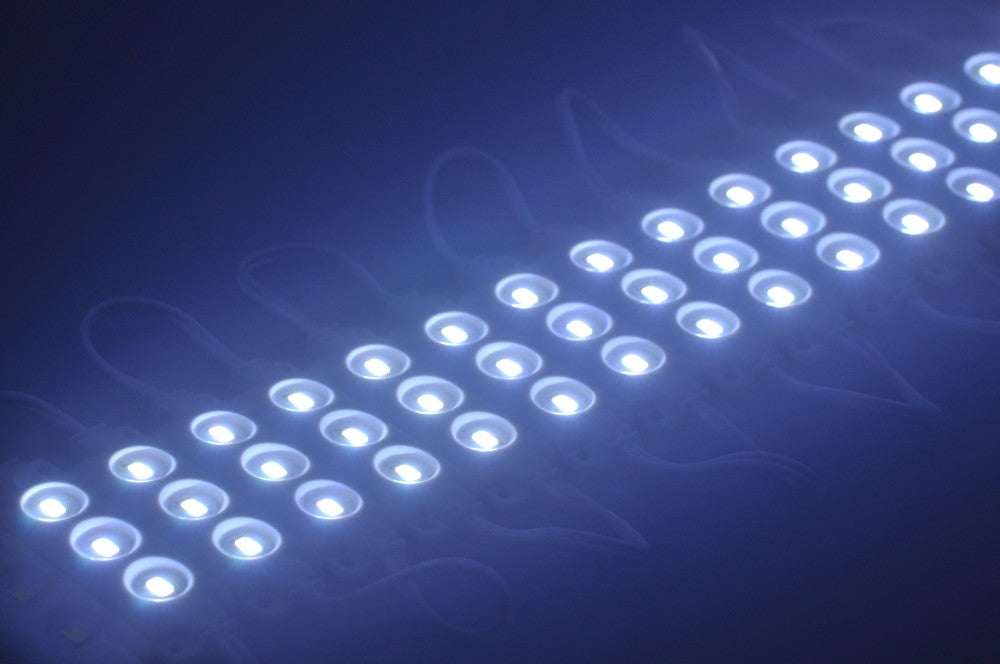

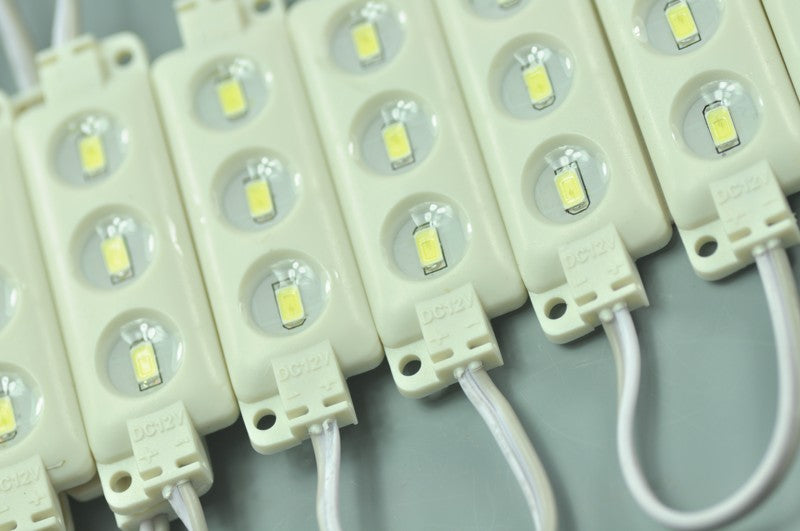

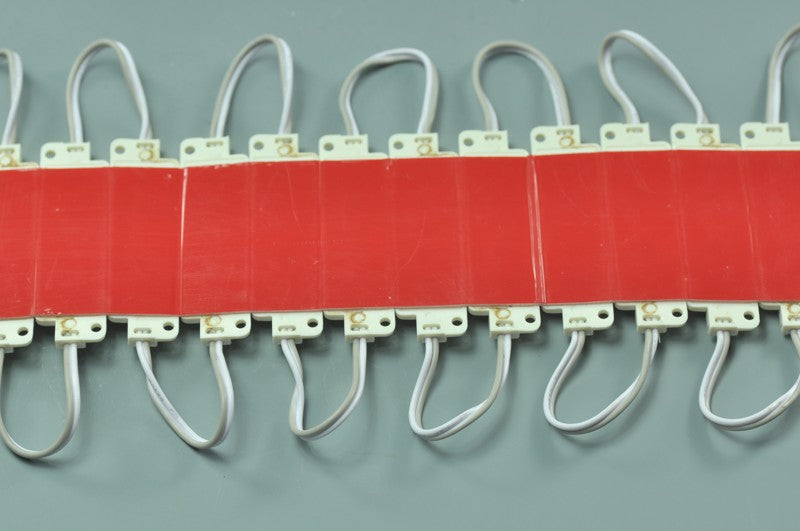

5630 SMD LED Injection Modules 5630 3 LED Modules Injection Molding 78x15MM 12V 1.5W Waterproof Modules
Pure White(6000-6500K)
$0.83
Skip to product information
5630 SMD LED Injection Modules 5630 3 LED Modules Injection Molding 78x15MM 12V 1.5W Waterproof Modules
$0.83
| LED Type: | 3 x SMD 5630 |
| Size(mm): | 78x15MM |
| Light Color: | Pure White/Cold White |
| Input: | 12V DC |
| Power(W) | 1.5w/pcs |
| Min Cutting: | 1pcs |
| Waterproof | IP65 |
| Length(Row): | 316cm(124.4inch) |
| Luminous: | 28-30lm/led |
| Luminous(Row): | 1800lm |
| Life: | 50,000 hrs |
| Materials: | Plastic |
| Temperature: | -40℃- 60℃ (-40℉~140℉) |
| Wire Length : | the lines of the two module light is 8cm(3.15inch) |
| Package: | 20pcs in one string, 100pcs in one package |
The LED Module power consumption calculation: If the power is 1.5W each LED Module, one string power is 20x1.5W.(Suggest 36w or 48w power supply)
