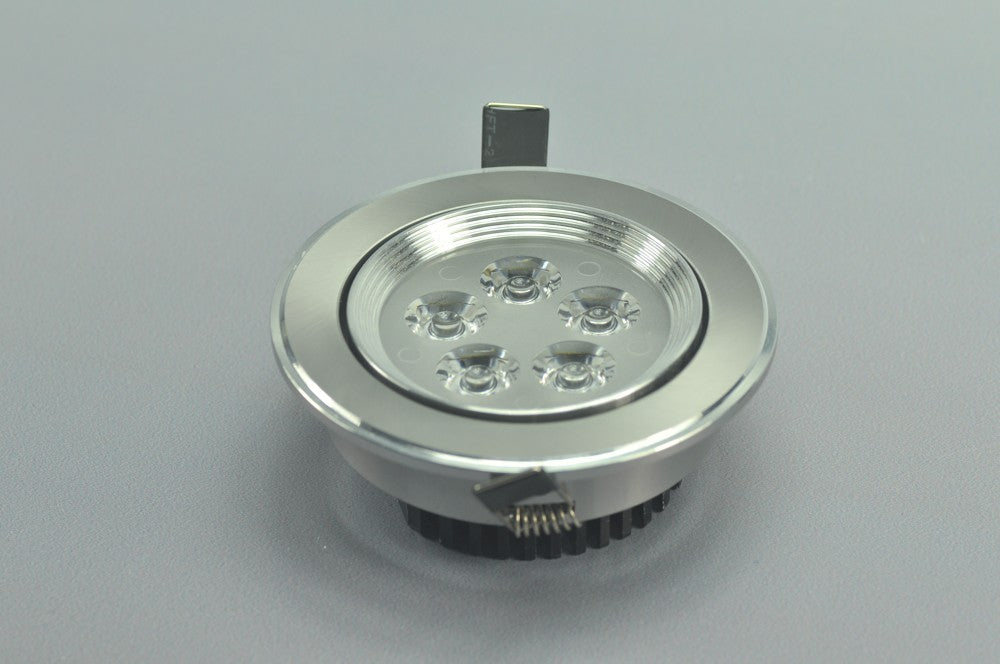

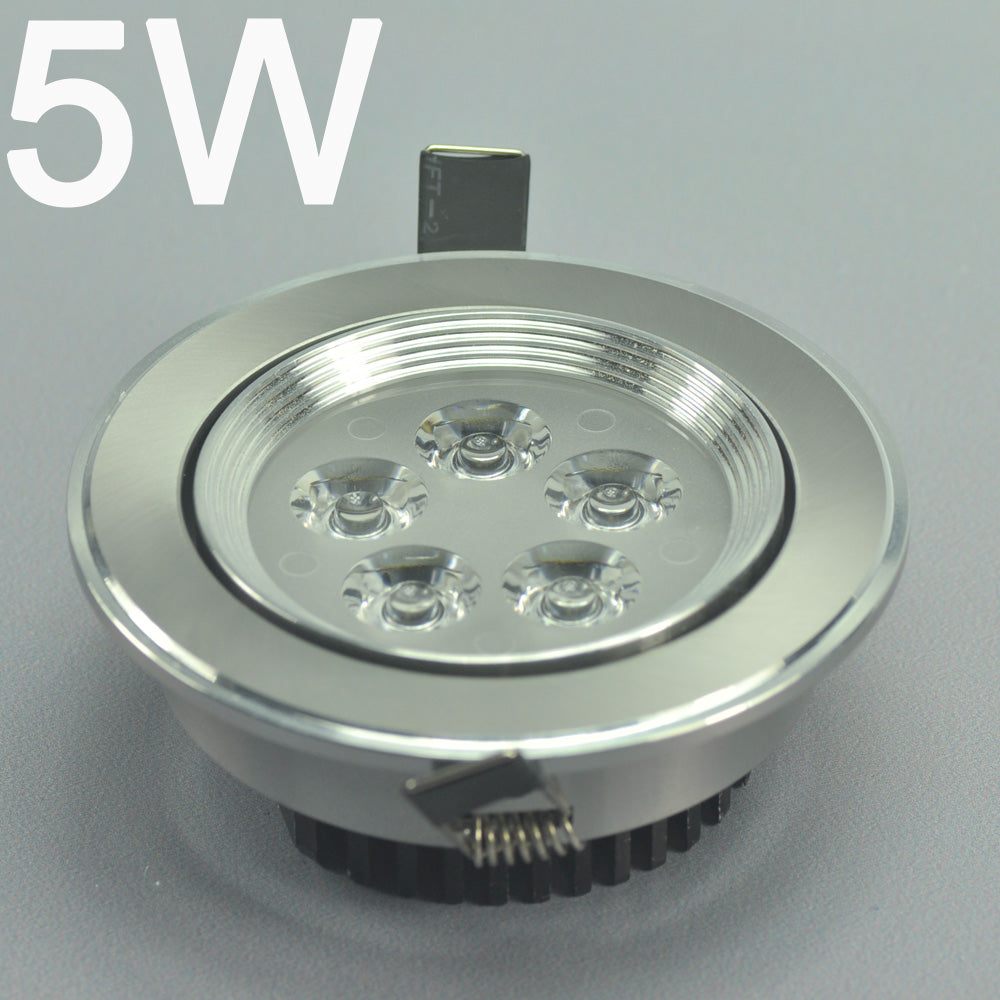

5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light

5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light

Pure White(6000-6500K) / With Driver
$12.40
Skip to product information
5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
  • 5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light
5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light

5W CL-HQ-04-5W LED Downlight Cut-out 91mm Diameter 4.3" Gray Recessed Dimmable/Non-Dimmable Ceiling light

$12.40
LED Color
Driver and Dimmable
724Light LD-CL-HQ-04 series 5W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, info@724light.com)
Product Specifications
Part number: LD-CL-HQ-04-5W
Cut-out: Φ91mm
Surface Diameter: 4.3"(109mm)
Power Consumption: 5W
Operating Voltage: 100~277VAC
Body Material: Aluminum
Replacement For: 7.5W CFL
Body Color: Gray
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 425 Lumens
LED Type: Epistar Chip
LED Quantity: 5*1W/PCS
Beam Angle: Approx. 60°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens: Clear
Lifetime: 50000 Hours
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.305 kg
Dimensions(D*H): 109mm x 44mm
Packaging list : 1* LED Downlight
1* LED Driver

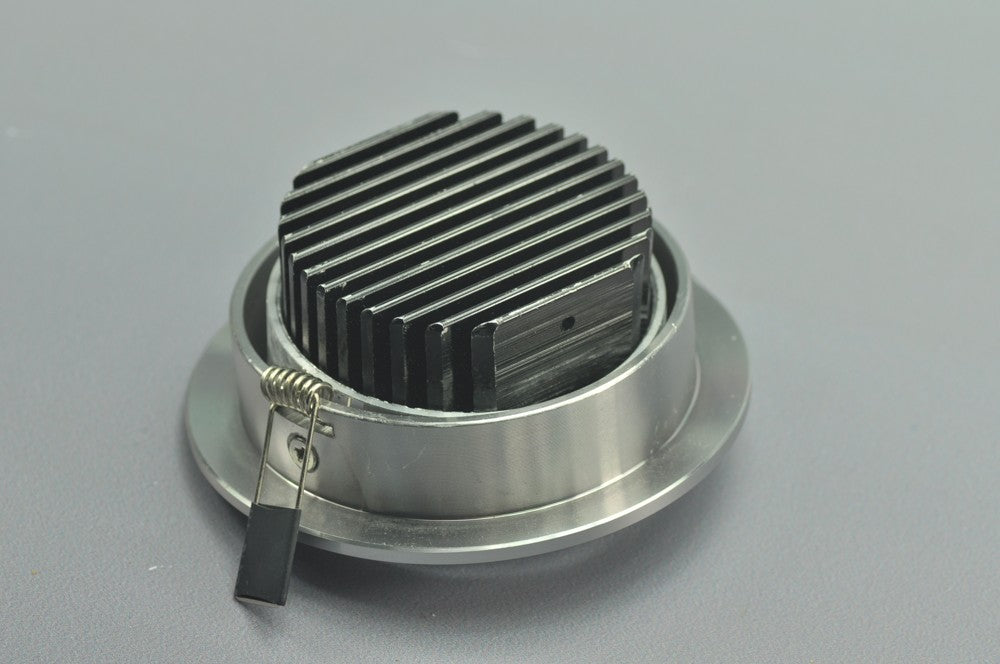

Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency

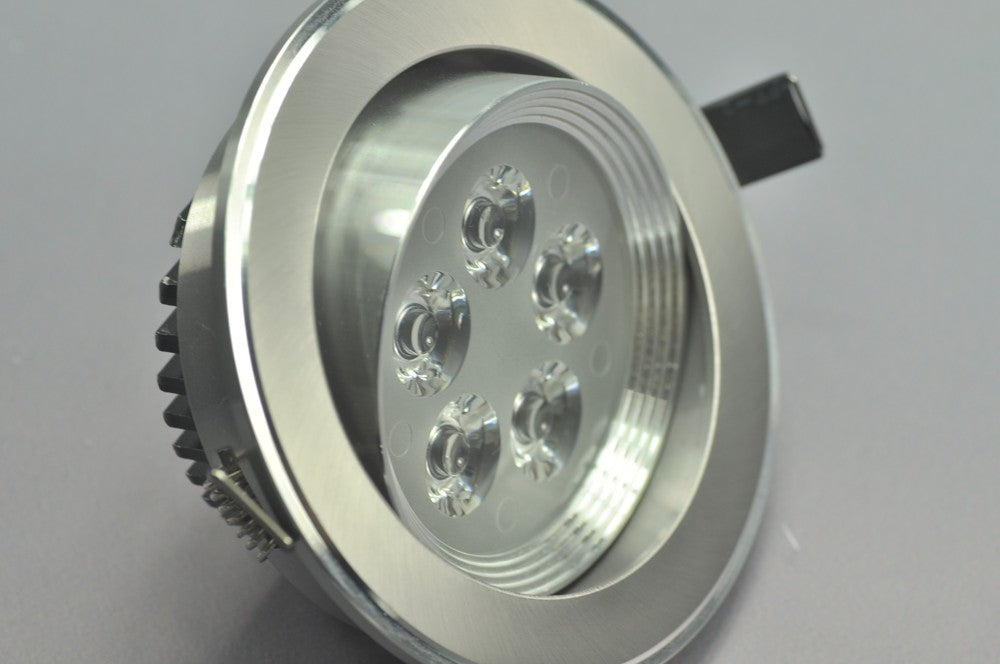

Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

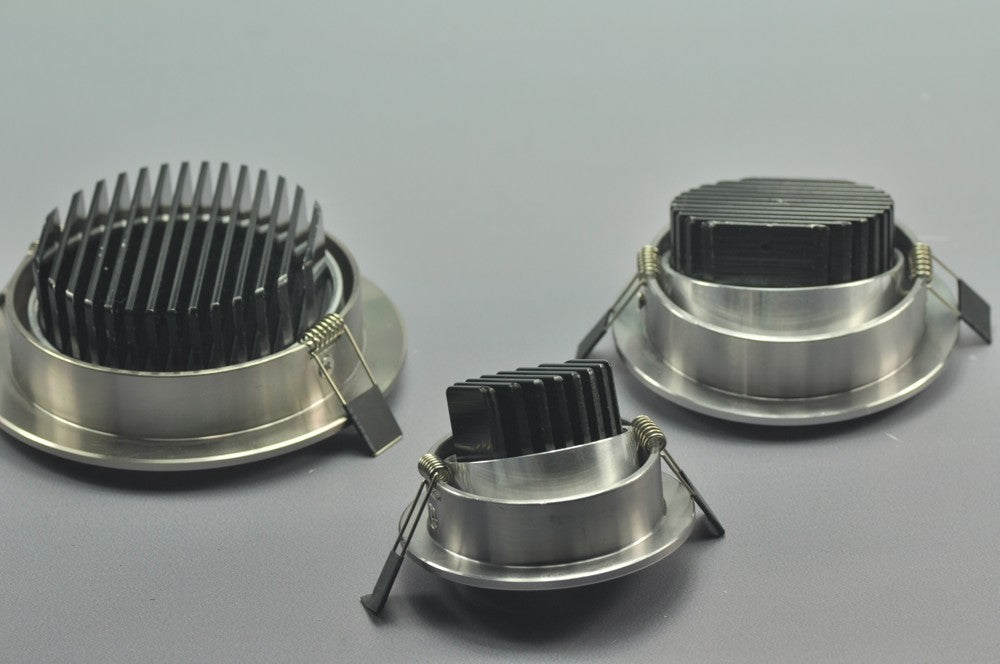

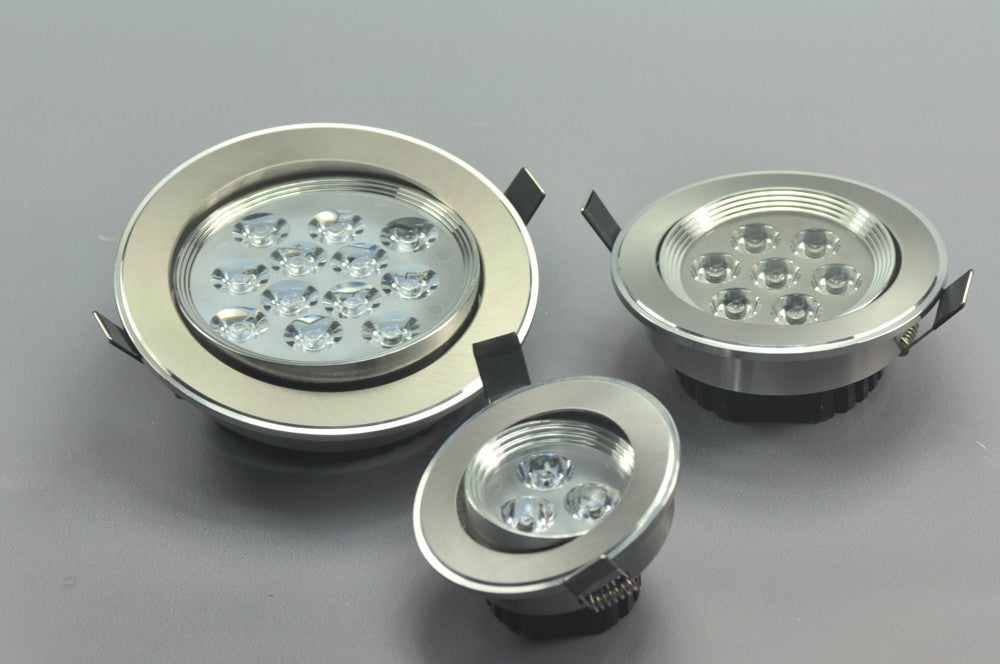

LD-CL-HQ-04 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ86mm*47mm
Φ70.5mm
3*1W LED
0.188kg
5W
Pure wthite/Warm White
Φ109mm*44mm
Φ91mm
5*1W LED
0.305kg
7W
Pure wthite/Warm White
Φ109mm*44mm
Φ91mm
7*1W LED
0.305kg
9W
Pure wthite/Warm White
Φ138mm*45mm
Φ114mm
9*1W LED
0.474kg
12W
Pure wthite/Warm White
Φ138mm*45mm
Φ114mm
12*1W LED
0.474kg
