6W DL-HQ-202-6W LED Panel light Round Diameter 90.5mm Height 46mm PVC Acrylic Cover Cabinet LED Down Lights

6W DL-HQ-202-6W LED Panel light Round Diameter 90.5mm Height 46mm PVC Acrylic Cover Cabinet LED Down Lights

$14.00
LED Color
Driver and Dimmable
724Light LD-DL-HQ-202 series 6W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, info@724light.com)
Product Specifications
Part number: LD-DL-HQ-202-6W
Cut-out: Φ90.5mm
Surface Diameter: 3.5"(90.5mm)
Power Consumption: 6W
Operating Voltage: 100~277VAC
Body Material: Aluminum
Replacement For: 9W CFL
Body Color: White
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 510 Lumens
LED Type: Epistar Chip
LED Quantity: 6*1W/PCS
Beam Angle: Approx. 360°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens: Clear
Lifetime: 50000 Hours
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.236 kg
Dimensions(D*H): 90.5mm x 46mm

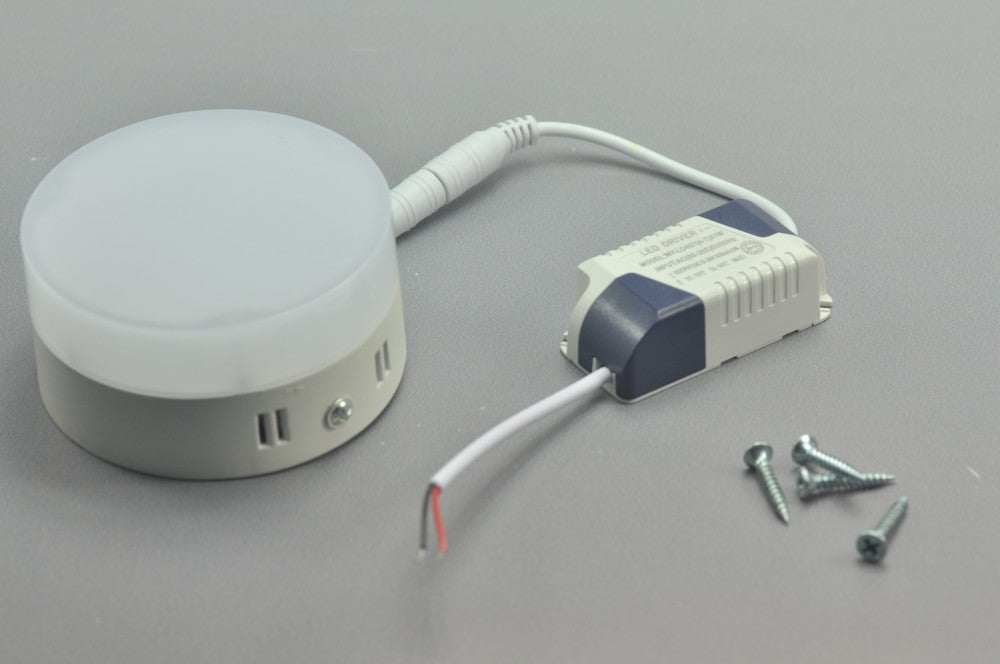

Packaging list : 1* LED Downlight
1* LED Driver
Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

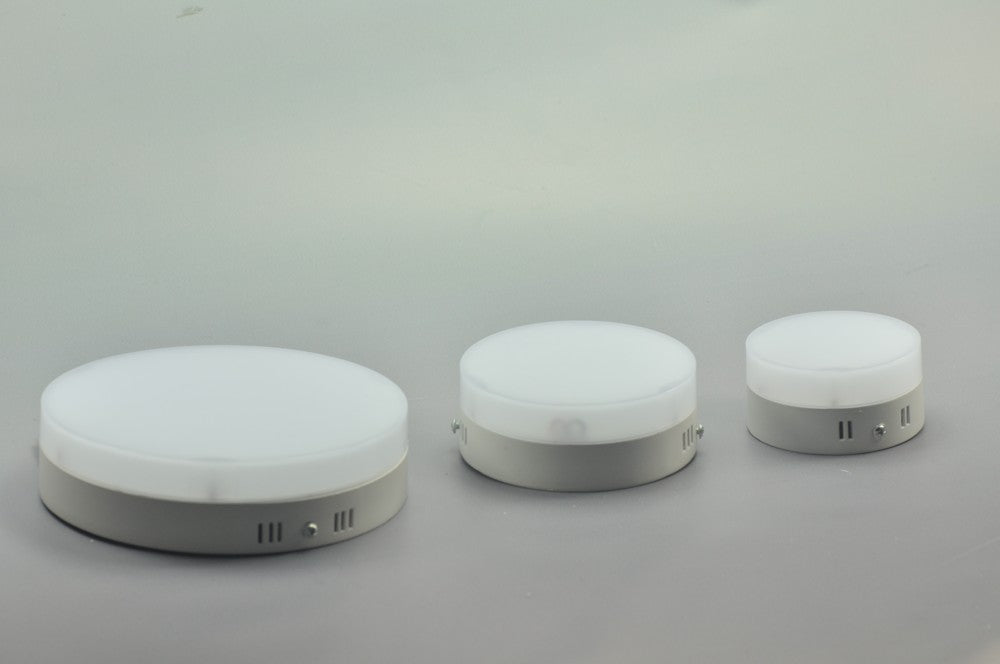

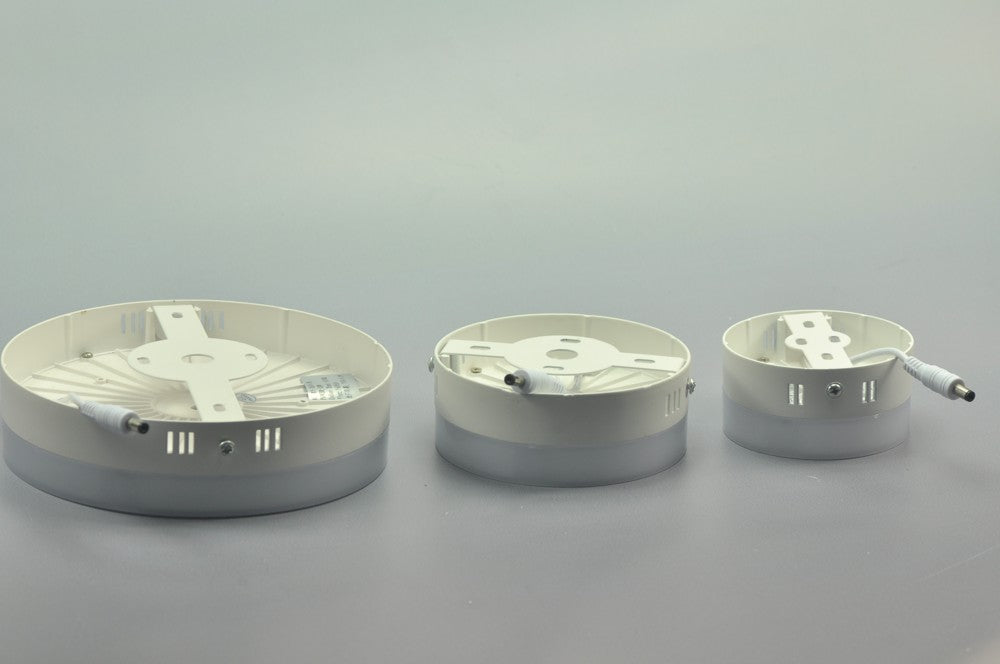

LD-DL-HQ-202 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
6W
Pure wthite/Warm White
Φ90.5mm*46mm
Φ90.5mm
SMD 2538
0.236kg
12W
Pure wthite/Warm White
Φ121mm*45.5mm
Φ121mm
SMD 2538
0.331kg
18W
Pure wthite/Warm White
Φ175mm*46mm
Φ175mm
SMD 2538
0.642kg
