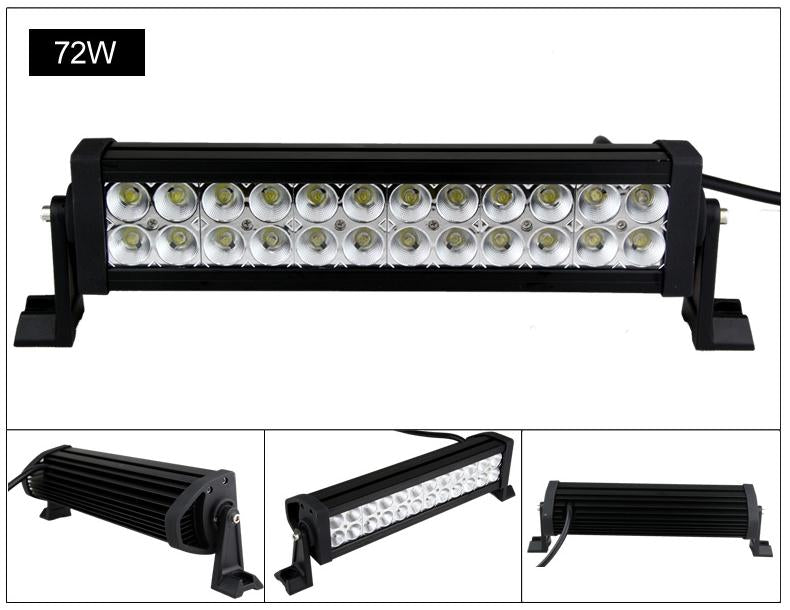

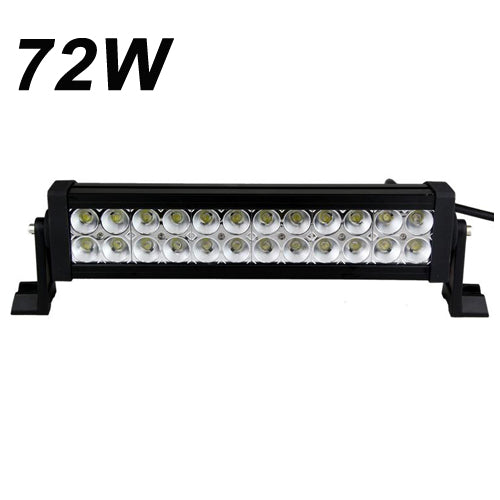

724Light 72 Watt Off Road LED light with 24 x 3 Watt high power CREE LEDs in a double row array.30 degree spot,60 degree flood and combo beam angle option. 9-32VDC operating voltage range. IP68 waterproof black painted aluminum housing with integral heatsink and PC lens and Aluminium Alloy Mounting Bracket..(Big order/need customized LED light bar, info@724light.com)

Product Specifications
Part Number:	LD-HT-CLB-1972
Power	72W
Beam Angle:	Spot(30°)/Flood(60°)
Lumens:	5040LM
LED Type:	3W CREE LED
LED Quantity:	24PCS
Length:	422mm
Color Temperature:	6500K
Working Voltage:	9-32V
Body Color:	Black
Material:	6063 Aluminum Housing+PC Lens+Aluminium Alloy Mounting Bracket
IP Rating:	IP68
Life-span:	30000hrs
Waorking Temperature:	-40℃~85℃
Certification:	CE ROHS
Warranty:	3 Years Warranty

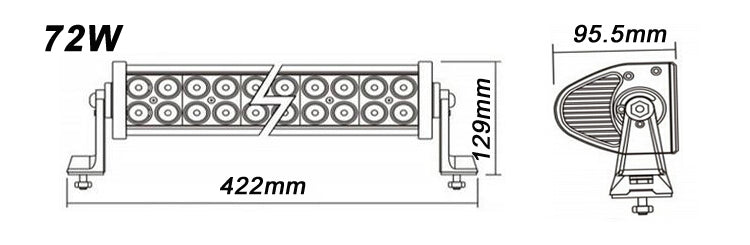

Size:	422*129*95.5mm
Weight:	2.33kg

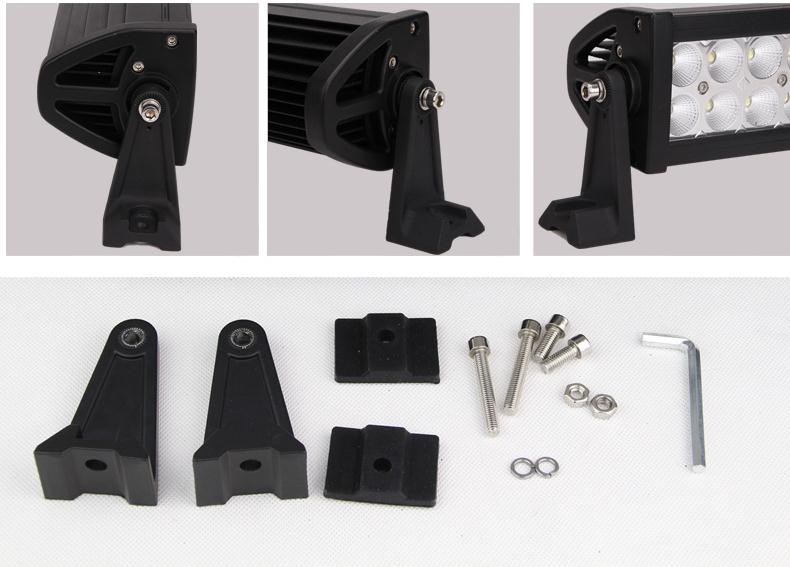

Packaging List	1 x 72W LED light bar 1 x Set of Installation accessories

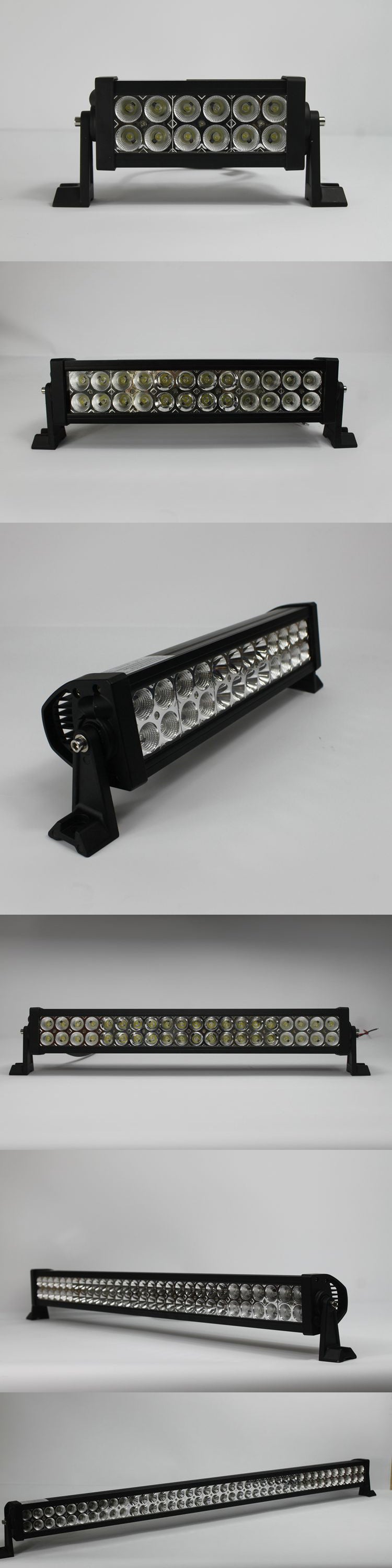

ALL LD-HT-CLB Series LED Light Bars

Images	Part Number	Power	LED Type	Lumens	Beam Angle	Dimensions	Weight
	LD-HT-CLB-1936	36W	12pcs * 3W CREE LED	2100LM	Spot(30°)/Flood(60°)	269*129*95.5mm	1.52Kg
	LD-HT-CLB-1960	60W	20pcs * 3W CREE LED	3500LM	Spot(30°)/Flood(60°)	371*129*95.5mm	2.06Kg
	LD-HT-CLB-1972	72W	24pcs * 3W CREE LED	5040LM	Spot(30°)/Flood(60°)	422*129*95.5mm	2.33Kg
	LD-HT-CLB-19120	120W	40pcs * 3W CREE LED	8400LM	Spot(30°)/Flood(60°)	629*129*95.5mm	3.4Kg
	LD-HT-CLB-19180	180W	60pcs * 3W CREE LED	10000LM	Spot(30°)/Flood(60°)	881*129*95.5mm	4.75Kg
	LD-HT-CLB-19240	240W	80pcs * 3W CREE LED	17280LM	Spot(30°)/Flood(60°)	1340*129*95.5mm	6.1Kg
	LD-HT-CLB-19288	288W	96pcs * 3W CREE LED	20080LM	Spot(30°)/Flood(60°)	1450*129*95.5mm	7.16Kg
	LD-HT-CLB-19300	300W	100pcs * 3W CREE LED	21000LM	Spot(30°)/Flood(60°)	1501*129*95.5mm	7.43Kg
