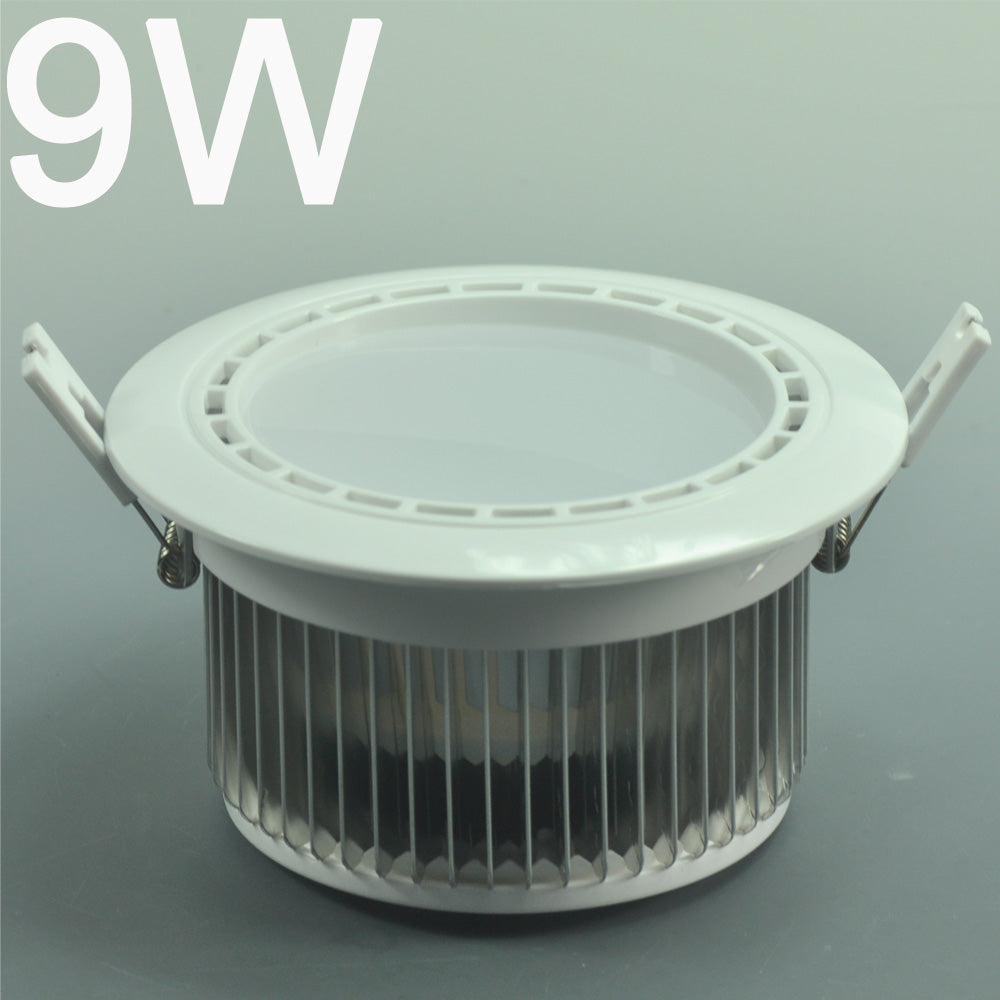

9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light

9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light

Pure White(6000-6500K) / With Driver
$30.90
Skip to product information
9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light
9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light

9W LD-DL-CPS-01-9W LED Down Light Cut-out 125mm Diameter 5.7" White Recessed Dimmable/Non-Dimmable LED Down Light

$30.90
LED Color
Driver and Dimmable
724Light LD-DL-CPS-01 series 9W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, info@724light.com)
Product Specifications
Part number: LD-DL-CPS-01-9W
Cut-out: Φ125mm
Surface Diameter: 5.7"(145mm)
Power Consumption: 9W
Operating Voltage: 100~277VAC
Body Material: Aluminum+Plastic
Replacement For: 13.5W CFL
Body Color: White
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 765 Lumens
LED Type: Epistar Chip
LED Quantity: 9*1W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens: Frosted
Lifetime: 50000 Hours
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 Years
Weight : 0.25 kg
Dimensions(D*H): 145mm x 78mm
Packaging list : 1* LED Downlight
1* LED Driver

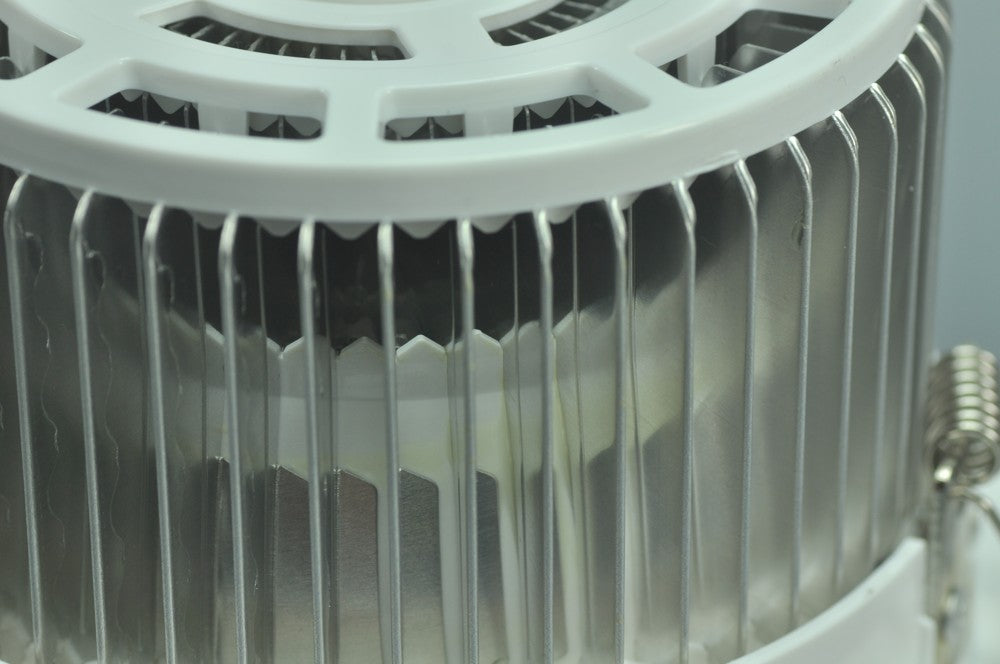

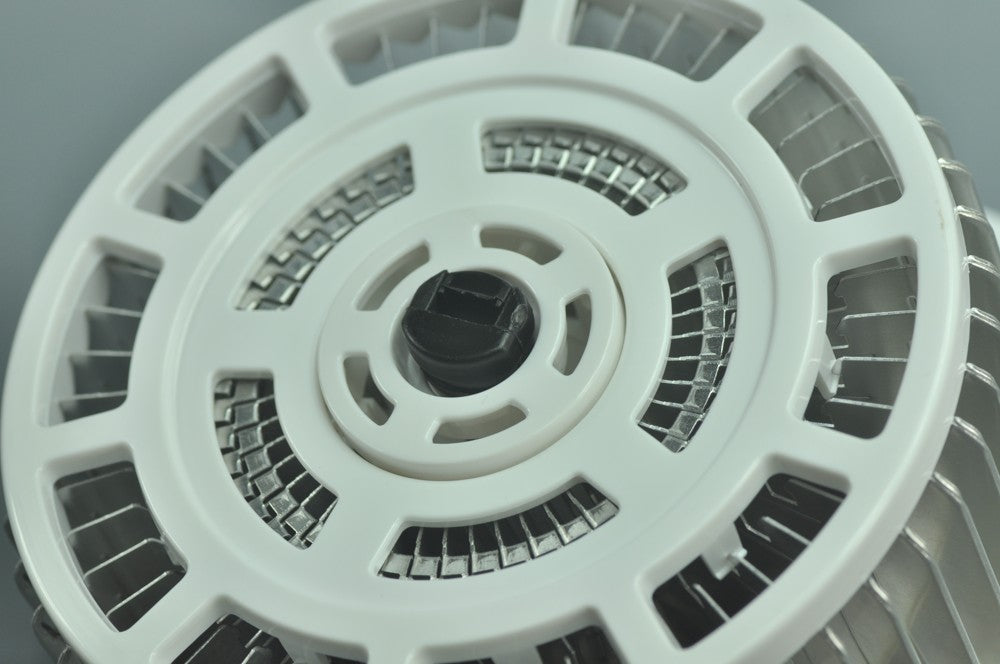

Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency

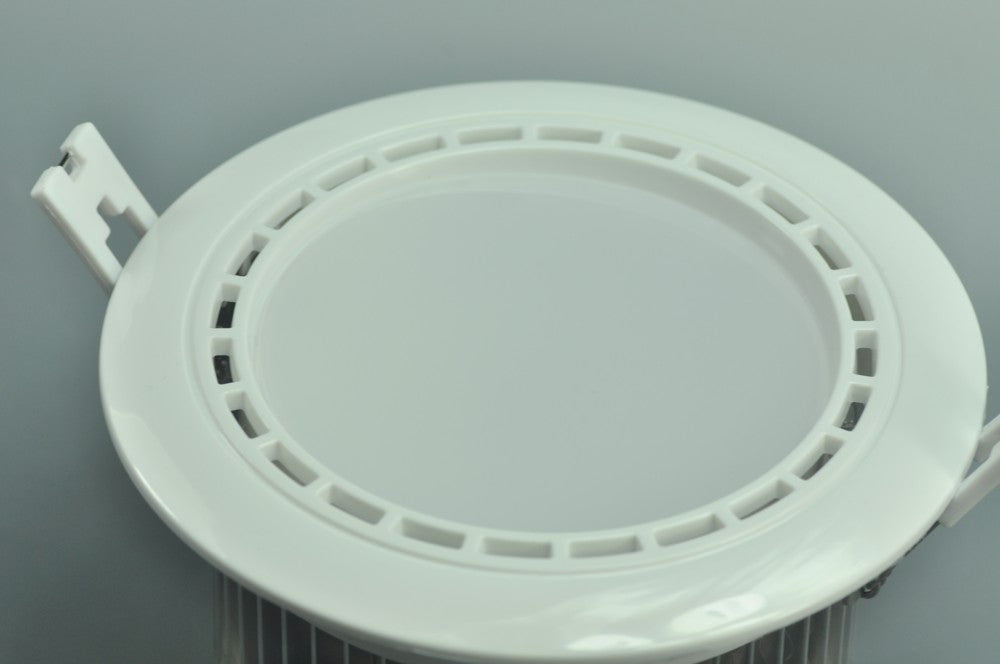

Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

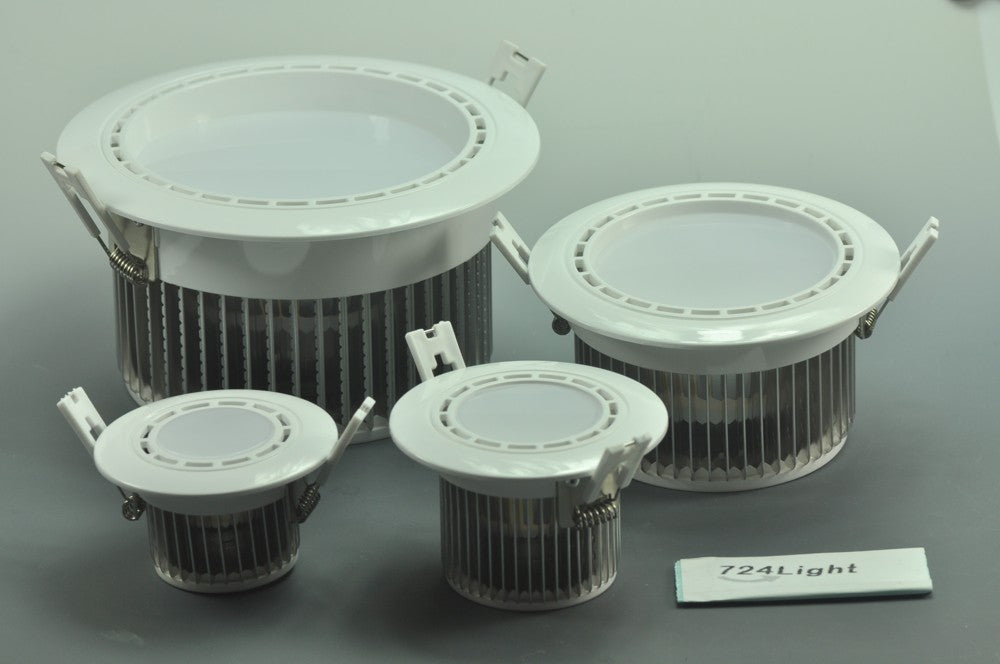

LD-DL-CPS-01 Series LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ90mm*52.3mm
Φ70mm
3*1W LED
0.085kg
5W
Pure wthite/Warm White
Φ102mm*65.9mm
Φ80mm
5*1W LED
0.12kg
7W
Pure wthite/Warm White
Φ102mm*65.9mm
Φ80mm
7*1W LED
0.12kg
9W
Pure wthite/Warm White
Φ145mm*78mm
Φ125mm
9*1W LED
0.25kg
12W
Pure wthite/Warm White
Φ145mm*78mm
Φ125mm
12*1W LED
0.25kg
24W
Pure wthite/Warm White
Φ195mm*105mm
Φ170mm
24*1W LED
0.474kg
36W
Pure wthite/Warm White
Φ240mm*106mm
Φ210mm
36*1W LED
0.724kg
