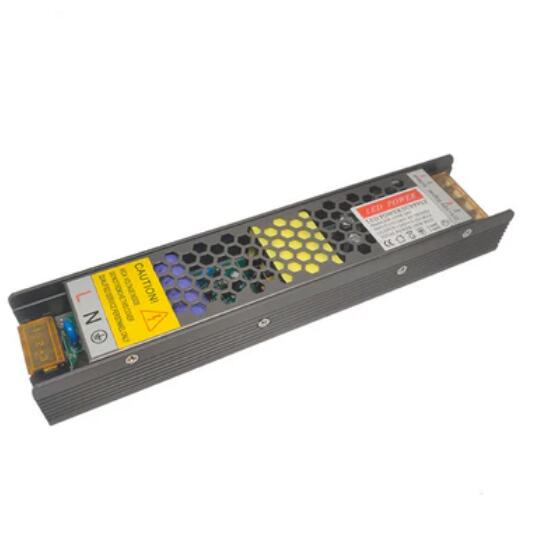

Constant Voltage TRIAC Dimmable Power Supply 110-220V AC to 12V /24V DC for LED Strip Lights
90-130VAC / 12V DC / 100W
$25.95
Skip to product information
Power parameters
Single channel constant voltage output, output voltage is 12V and 24V DC
Supports leading edge (Triac) and trailing edge (ELV) dimming
Dimming range 0-100% flicker-free dimming
87% efficiency
Smooth dimming curve, no jitter
Overload protection; short circuit protection
Suitable for indoor LED lamps, light strips, rigid light strips, wall washers, etc.
Output parameters
Voltage: 12V 24V DC
Current: Maximum 12V 12.5A ,24V 6.3A for 150W ; 12V 8.3A 24V ,4.12A for 100W (In actual applications, the current will be automatically adjusted according to the actual load) Power: at least 5w can be driven
Voltage accuracy: ±5%
Input Parameters
Voltage: 90-130V 200VAC-240VAC
Frequency: 50/60Hz
Dimming voltage range: 40-240VAC
Efficiency (typical): 87%
Current: 0.5A@230VAC
Inrush current: 15A@230VAC
Protection
Short circuit: hiccup, self-recovery after removing the fault
Overload: hiccup, self-recovery after removing the fault
Function
Dimming method: leading edge/back edge thyristor
Super high compatibility with dimming system and dimmer
Compatible with various intelligent dimming modules LDS INTERNATIONAL, Punch DALITEK, Philips PHILIPS dynalite, Lutron LUTRON, Clipsal, C-BUS dimming system, Crestron crodigy, ABB, Siemens SIEMENS, Schneider Merten, Osram 0- 100% flicker-free dimming. It has 99.9% compatibility with ordinary dimmers.

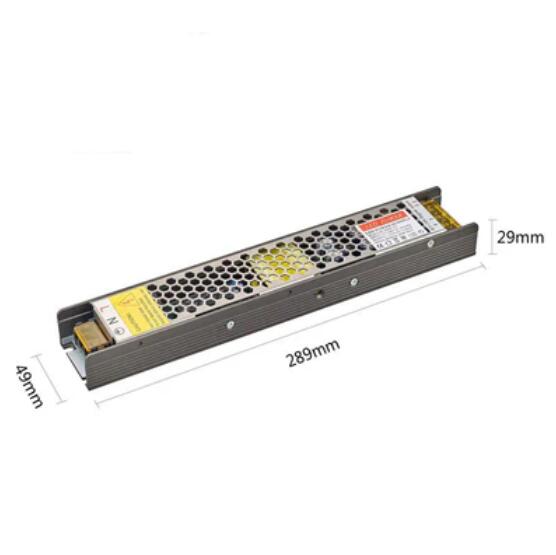

Code: ---- Input Voltage--------- Output Current: ------ Size:
100W:---- AC90-130V/190-265V---- 8.33Amp------- L235*W50*H30mm
150W:---- AC90-130V/190-265V---- 12.5Amp------- L288*W50*H30mm
