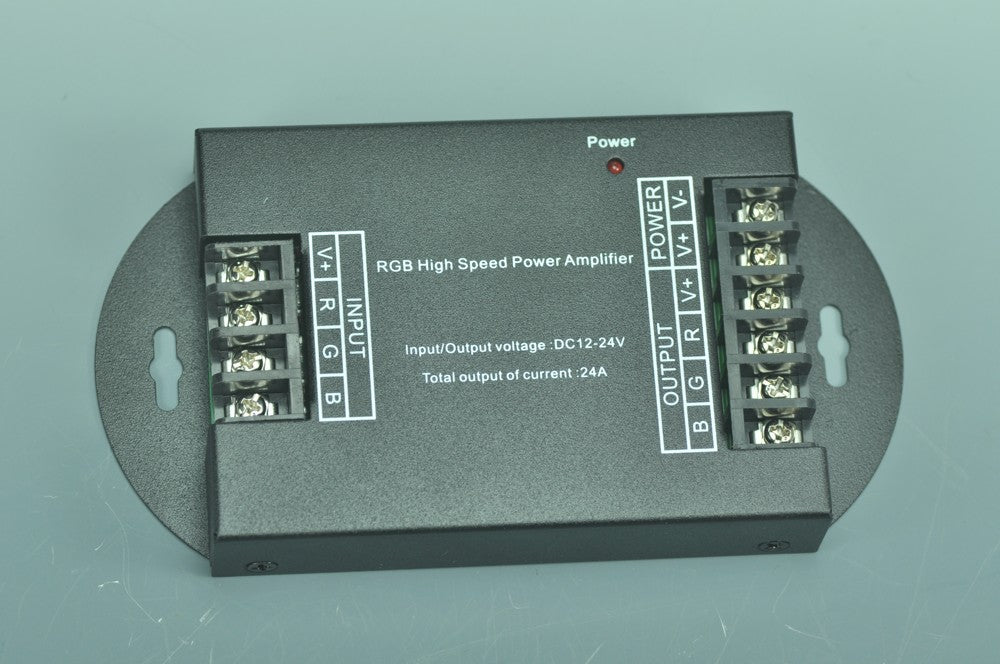

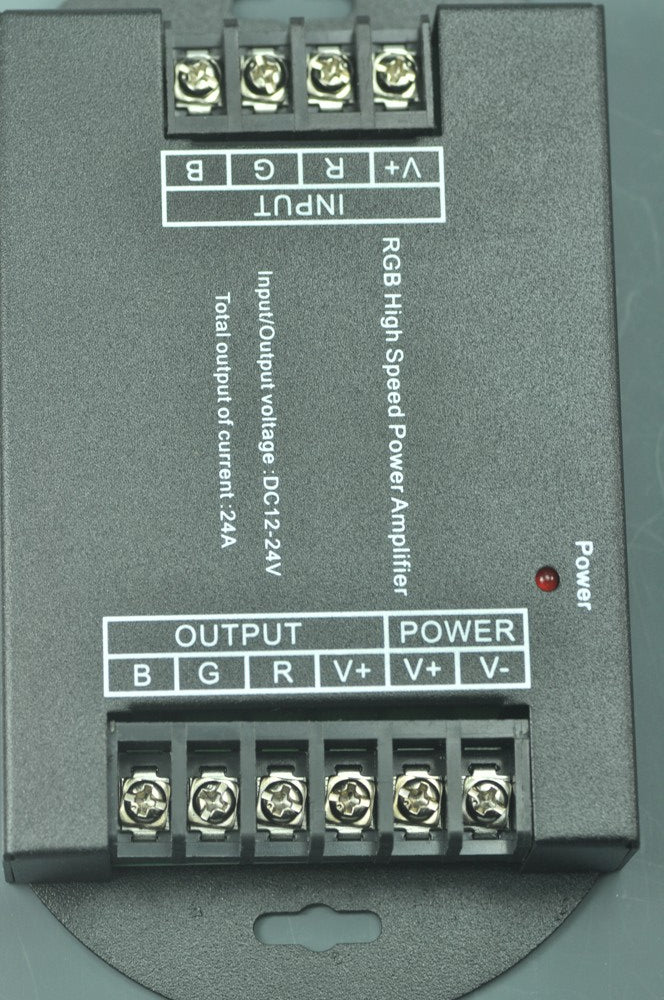

Name: DC12-24V 288-576W RGB High Speed Power Amplifier 3 Channels 24A Output Current Common Anode For LED Strip
Brand: My Store 7
SKU: LD-TAC-080-A
Price: 13.13 USD
Availability: InStock

DC12-24V 288-576W RGB High Speed Power Amplifier 3 Channels 24A Output Current Common Anode For LED Strip

$13.13

Summarization

RGB amplifier applies to all the voltage-controlled LED controller in our company, it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.

Technical parameters

1. Work temperature: -20-60 degree

2. Supply voltage: DC12-24V

3. Size: 98*45*18mmÂ Â Â Â Â Â Â Â Â Â

4. Package size:105*65*40mm

5. Carton size: L496*W272*H308mmÂ Â Â Â Â

6. Output: 3 channel (R/G/B/+)

7. Connecting mode: common anode

8. Static power: : <1WÂ Â Â

9. Output current : < 8A(each channel)Â Â Â

10. Output power: 12V< 288W,Â 24V<576W

11. Input / output optical isolation, not common ground
