DC12V SMD3528-600-IR InfraRed 850nm | 940nm Flexible IR LED Strips, 120LEDs 9.6W Per Meter Tape Light
Non-Waterproof / Infrared 850NM / 5M
$75.00
Skip to product information
DC12V SMD3528-600-IR InfraRed 850nm | 940nm Flexible IR LED Strips, 120LEDs 9.6W Per Meter Tape Light
NOTE:
1) The Infrared LED Strip is invisible light
2) To put the IR strip under the Camera with Night Vision (NO IR filter), you can see red spot
NOTE:
1) The Infrared LED Strip is invisible light
2) To put the IR strip under the Camera with Night Vision (NO IR filter), you can see red spot
Technical Specification
Wattage 9.6W/Meter Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD3528 Strip Section 3LED per 1inch
WxH 8x2(mm) LED QTY.: 120LED/Meter
Length Available 0.5 to 5 Meter
Available Color 850nm and940nm

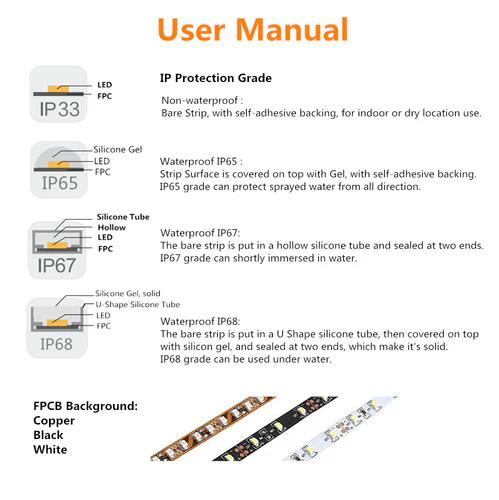

Protection Grade Non-waterproof, IP65, IP67, IP68
PCB Background White
Other Features
Item DC12V SMD3528-600-IR InfraRed (850nm/940nm) Single Chip Flexible LED Strips 120LEDs 9.6W Per Meter
Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip
Applications
*For the multitouch display
*For surveillance or security
*For Night Version Light
Features

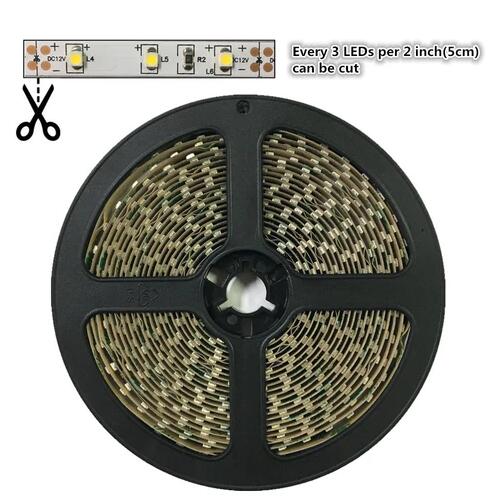

*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Strips.
*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm
*Do not connect LED Light Strips directly to 120V AC power.
*Apply power to test LED Light Strips before mounting.
