DC12V SMD5050-600-IR InfraRed 940nm | 850nm IR LED Lighting Strip, Double Row 120LEDs 28.8W Per Meter Tape
Non-Waterproof / Infrared 850NM / 5M
$135.00
Skip to product information
DC12V SMD5050-600-IR InfraRed 940nm | 850nm IR LED Lighting Strip, Double Row 120LEDs 28.8W Per Meter Tape
NOTE:
1) The Infrared LED Strip is invisible light
2) To put the IR strip under the Camera with Night Vision (NO IR filter), you can see red spot
Technical Specification
Wattage 28.8W/Meter Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD5050 Strip Section 6LED per 2inch

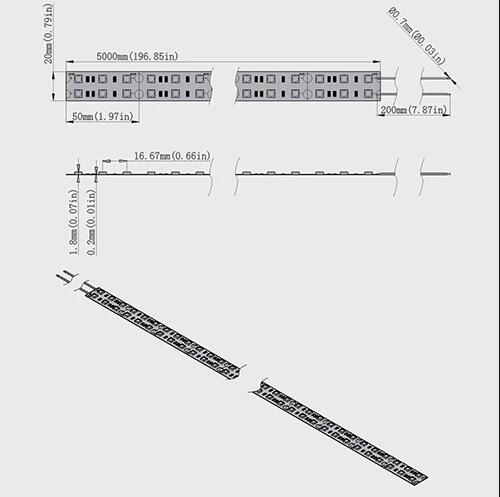

WxH 15x2(mm) LED QTY.: 120LED/Meter
Length Available 0.5 to 5 Meter
Available Color 850nm and940nm
Protection Grade Non-waterproof, IP65, IP67
PCB Background White
Other Features
Item DC12V SMD5050-600-IR InfraRed (850nm/940nm) Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter
Weight 0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65/IP67
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip
Applications
*For surveillance or security
*For Night Version Light
*For the multitouch display
Features

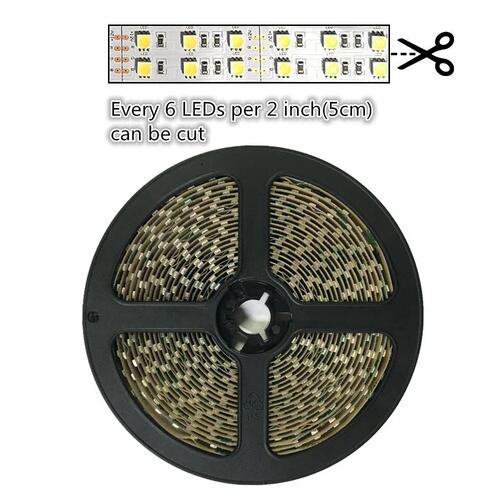

*Can be cut into 6-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Strips.
*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm
*Do not connect LED Light Strips directly to 120V AC power.
*Apply power to test LED Light Strips before mounting.
