Epistar 10W High Power LED Chip 850 Lumens 35*35mil For Diy LED light
Pure White(6000-6500K)
$3.90
Skip to product information
724Light Epistar 35mil*35mil series 10W LED high power chip to produce up to max 850 lumens. Color include:Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV. This suit for diy high power led light such as floodlight or the superbright led light.(We can do any color temperature led chip,if need custom/wholesale ,please contact info@724light.com:)
Epistar 10W High Power LED Chip 850 Lumens 35*35mil For Diy LED light
$3.90
| Product Specifications | |
|---|---|
| Part number: | CHIP-BC-JY-35mil-10W |
| Wattage: | 10W |
| Compares to: | 22 Watt Halogen Quartz |
| Color: | Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV |
| Color Temperature: | Pure White(6000-6500k),Warm White(2700-3500k),Blue(450-460nm),Green(520-525nm),Red(620-625nm),Yellow(605-610nm),Purple UV(440-445 nm) |
| Lumen: | 850 Lumens |
| LED Type: | Epistar 35mil*35mil |
| LED Quantity: | 3 x 3 series |
| Beam Angle: | Approx. 140° |
| CRI: | 80 CR |
| Operating Temperature: | -40~+50 °C |
| Materials: | Aluminum/Copper Holder |
| Operating Voltage: | 9-12V |
| Operating Current: | 900-1050mA |

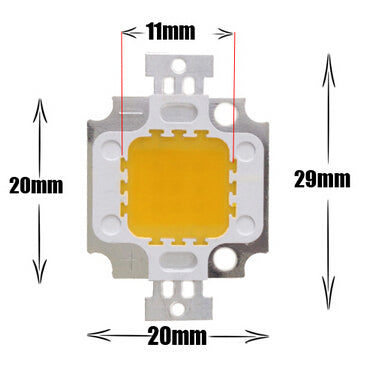

| Dimensions: | Chip Size: 11mm x 11mm PCB Size:29mm x 20mm |
| Lifetime: | 40000 Hours |
| Standards And Certifications: | CE/FCC/ROHS Compliant |
| Warranty: | 2 Years |
| Weight : | 0.03 kg |
| Packaging list: | 1 pcs x High Power Chip |
| Number into the box : | 50pcs |
