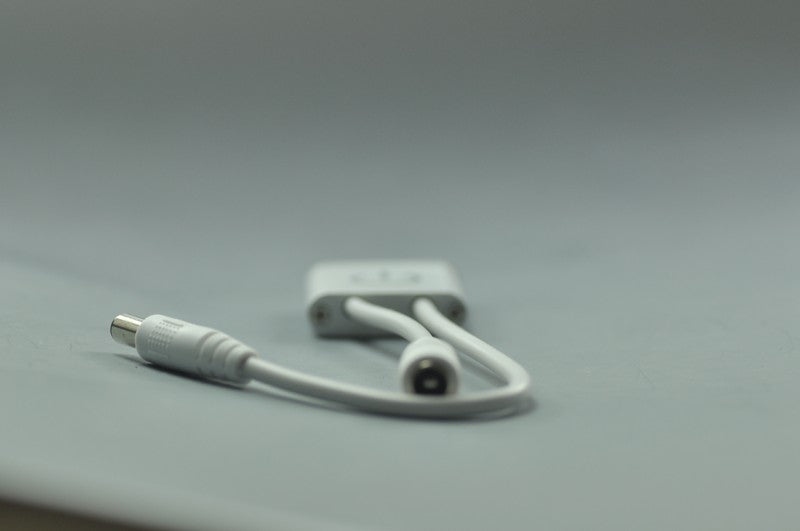

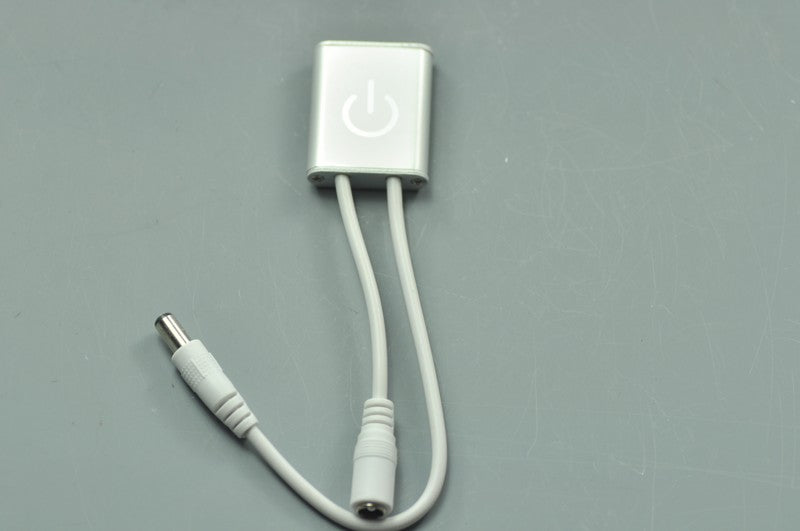

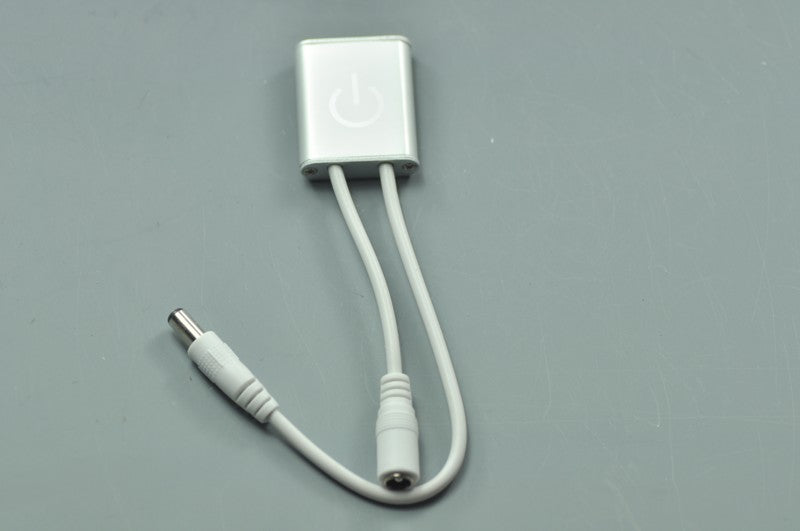

iTouch LED Dimmer 12 -24 V For LED Strips LED Cabinet light , Led Panel Light
$10.30
- Universal single color LED dimmer can turn ON/OFF and dim any 12VDC or 24VDC LED products from 10 to 100 percent using Pulse Width Modulation (PWM) circuit.
- Touch sensitive control for full intensity adjustment range and ON/OFF controls.
- Maximum Load is 3 Amps, has Male and Female 5.5mm barrel power connector for connecting in-line with our CPS series Power Supplies.
- 3M double sided adhesive included
- * Working Voltage:DC12V or DC24V
- * Power:Max 36W at DC12V input, Max 72W at DC 24V input
- * Max load current: 3 Amps
- * Output 1 channel
- * Working temperature: -10°C ~ +50°C
- * Static power consumption: < 1 Watt
- * Function: Dim LED product from 0~100% using PWM with CPS series Power Supplies
- * Size:30.8*8.7*38mm
- * Net Weight: 23g
- - Directions:
- * The finger touches dimmer metal body
- * The touch time is less than 5 seconds, it is on/off switch function
- * The touch time is more than 5 seconds, it is dimming function, the brightness will be raised to the highest or fallen to lowest
- * Cable: DC2.1 input cable 100mm, output cable 200mm
- - Safety Information:
- * Supply voltage of this product is 12 or 24 Volts DC, do not exceed 24VDC
- * Shorting output wires my cause damage to dimmer
- * Always observe proper polarity when connecting power and load
- * For indoor use only – this product is not waterproof or weatherproof
