LED Aluminium 1 meter(39.4inch) Extrusion for Staircase Lighting

This LED Stair Extrusion is an Aluminum Extrusion that is specially designed to illuminate your new or existing steps or staircase. With its state of the art design, this extrusion can be lit from the top using any of our LED Side Light Strip lights and also from the bottom using any of our standard 8mm wide or 10mm wide LED Strip Lights max 12.2mm. The stair extrusion is made from high quality double-anodized aluminum and can be used to illuminate stairs, and in particular as a discreet lighting for cinemas, shops, nightclubs and restaurants. (Big order/need customized aluminium LED Channel, info@724light.com)

• Length:1 meter(39.4 inch)
• Color:Silver
• For Strip Width:For Strip PCB 8mm,10mm, up to max width 12.2 mm
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover material:PC Light Diffusion
• Cover Color: Frosted, Clear
• Waterproof Type: Non(Indoor using)
• Light Source:SMD flexible or Rigid Led Strip(5050,3528,5630,5730 and so on)
• Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)
• Insize Dimension:12.2mm Width

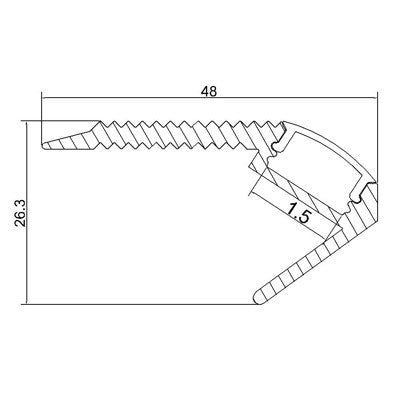

• Dimensions(HxW):26.7 mm x 48 mm(see follow first picture)


• Package Includes:
• 1 x LED Strip Aluminium Profile
• 2 x End Caps(one blank and one with hole)


• Application
• - Shelves
• - Stands for fairs
• - Furniture Construction
• - Kitchens
• - Cabinets
• - Interior


• Notice:
• 1. If need 2 meter(200cm) channel , the min order is 10pcs (20meter),please cotact us
• 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.
