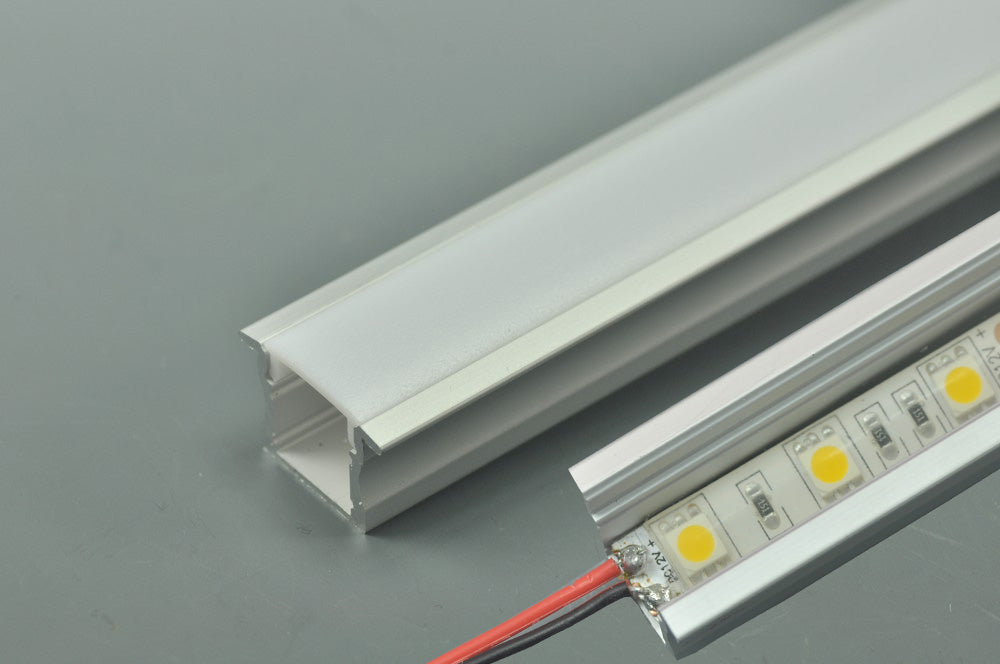

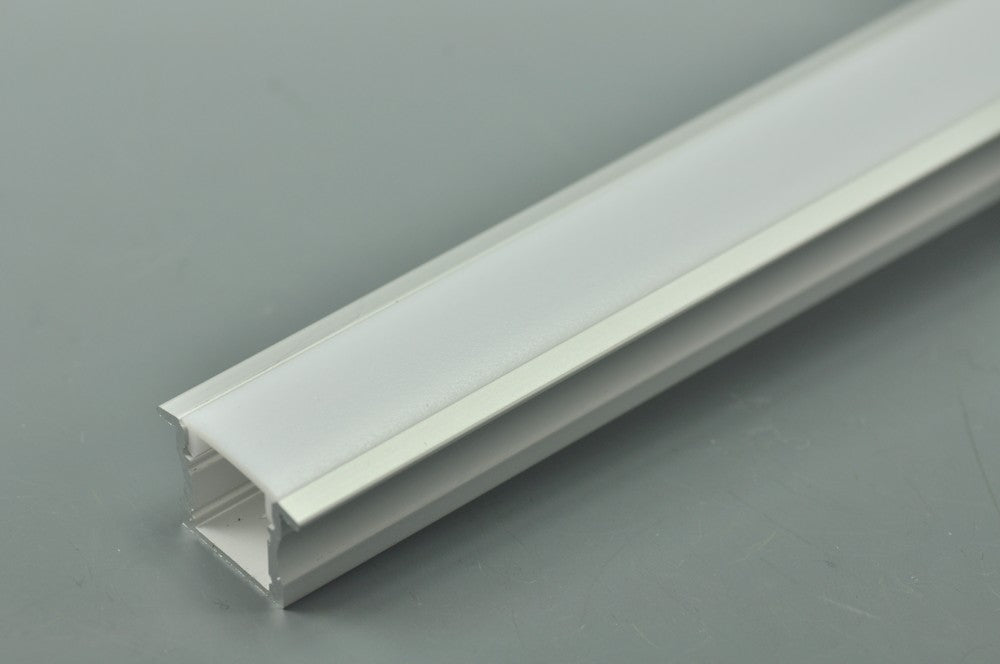

LED Aluminium Extrusion Width 12.2mm Recessed LED Aluminum Channel 1 meter(39.4inch) LED Profile With 23.3mm Flange

This LED aluminium profile with flange can be used for under cabinet lighting, floor lighting, wall lights, Kitchens display lights, window lights, exhibitions, pictures, and many other purposes. (Big order/need customized aluminium LED Channel, info@724light.com)

• Length:1 meter(39.4 inch)
• Color:Silver
• For Strip Width:For Strip PCB 8mm,10mm, up to max width 12.2 mm
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover material:PC Light Diffusion
• Cover Color: Frosted, Clear
• Waterproof Type: Non(Indoor using)
• Light Source:SMD flexible or Rigid Led Strip(5050,3528,5630,5730 and so on)
• Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)
• Inside Width:12.2mm

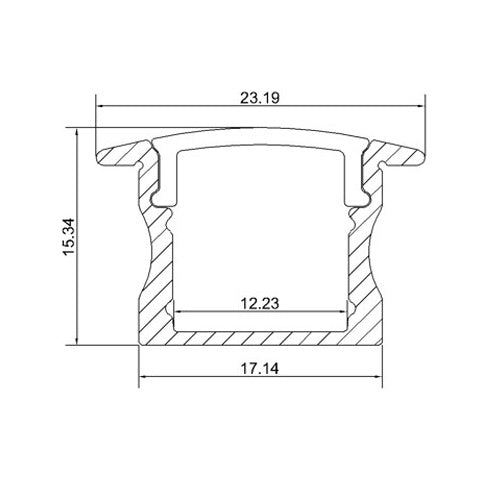

• Outside Dimensions(HxW):15.3 mm x 23.3 mm(see follow first picture)


• Package Includes:
• 1 x LED Strip Aluminium Profile

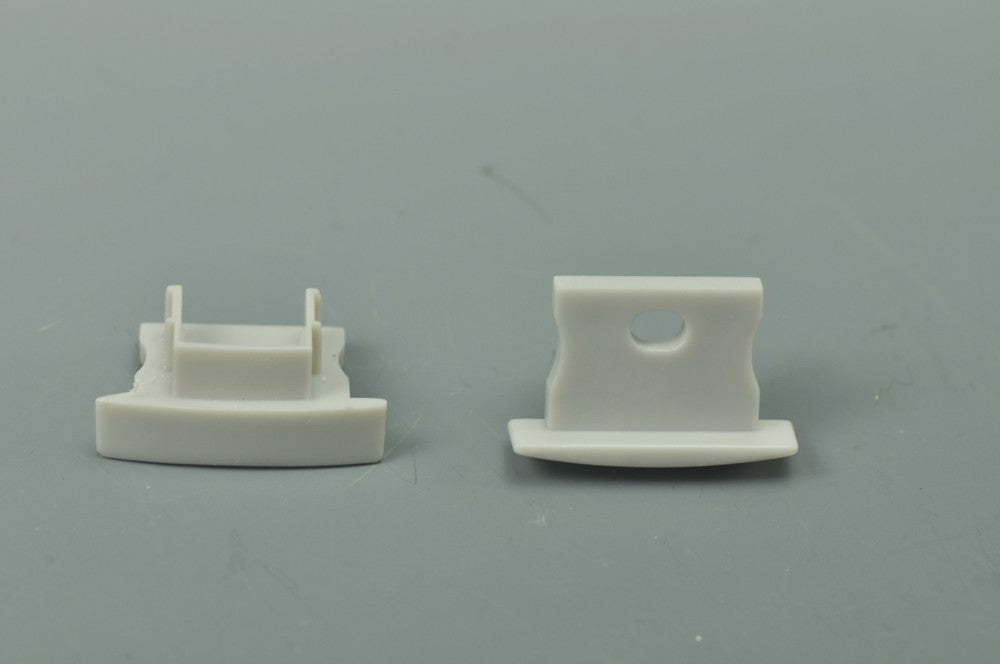

• 2 x End Caps(one blank and one with hole)


• Application
• - Shelves
• - Stands for fairs
• - Furniture Construction
• - Kitchens
• - Cabinets
• - Interior


• Notice:
• 1. If need 2 meter(200cm) channel , the min order is 10pcs (20meter),please cotact us
• 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.
