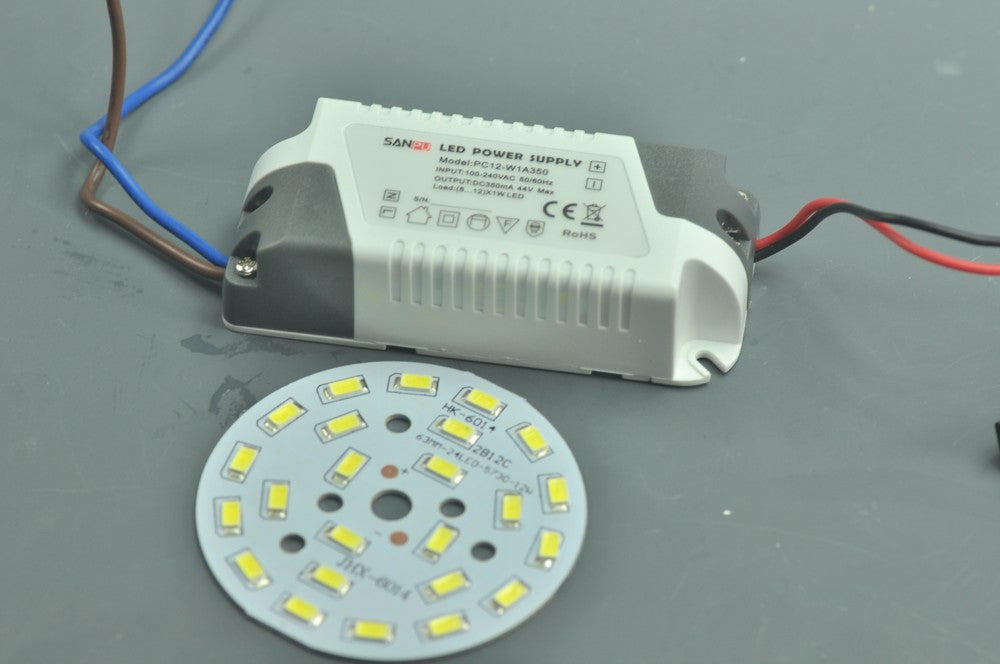

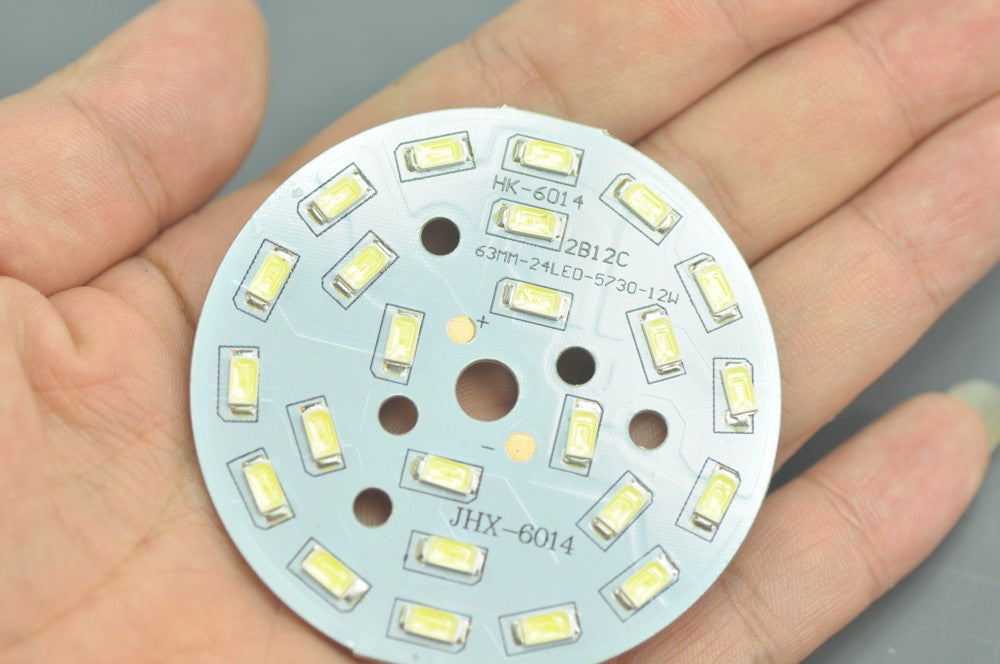

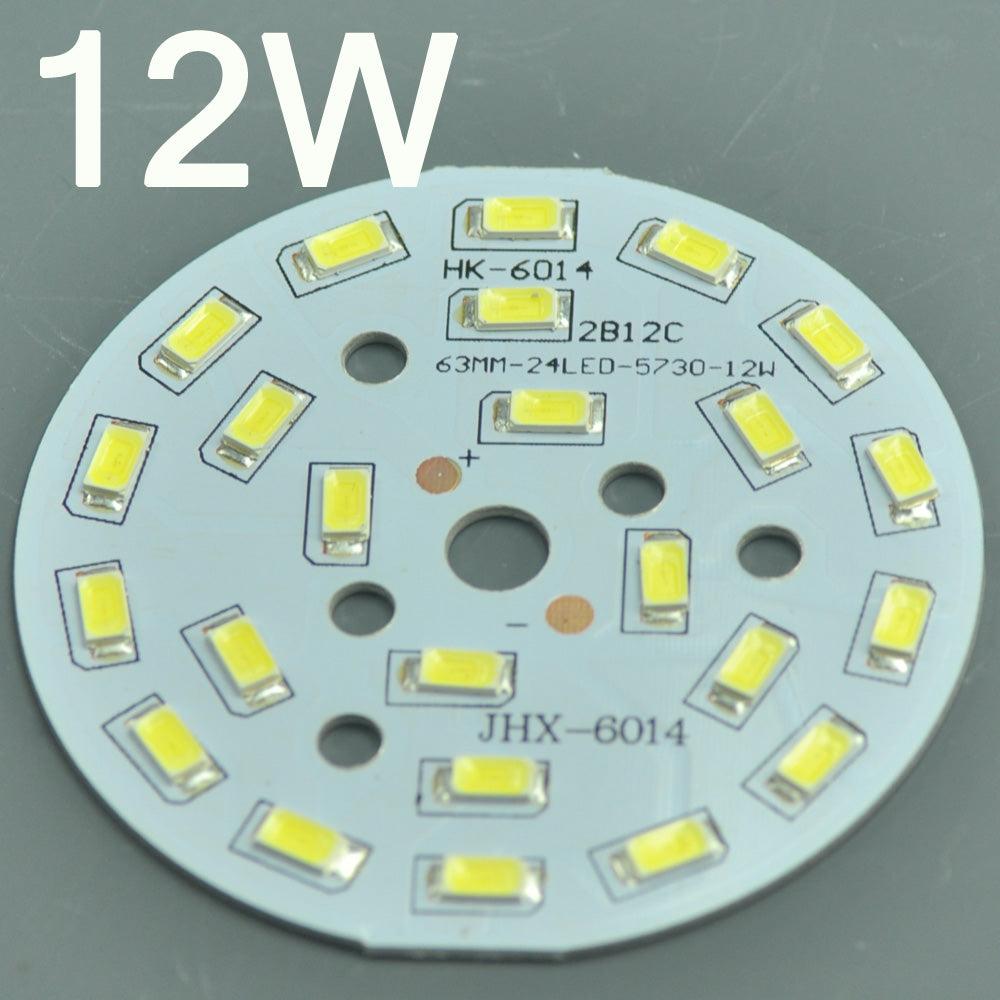

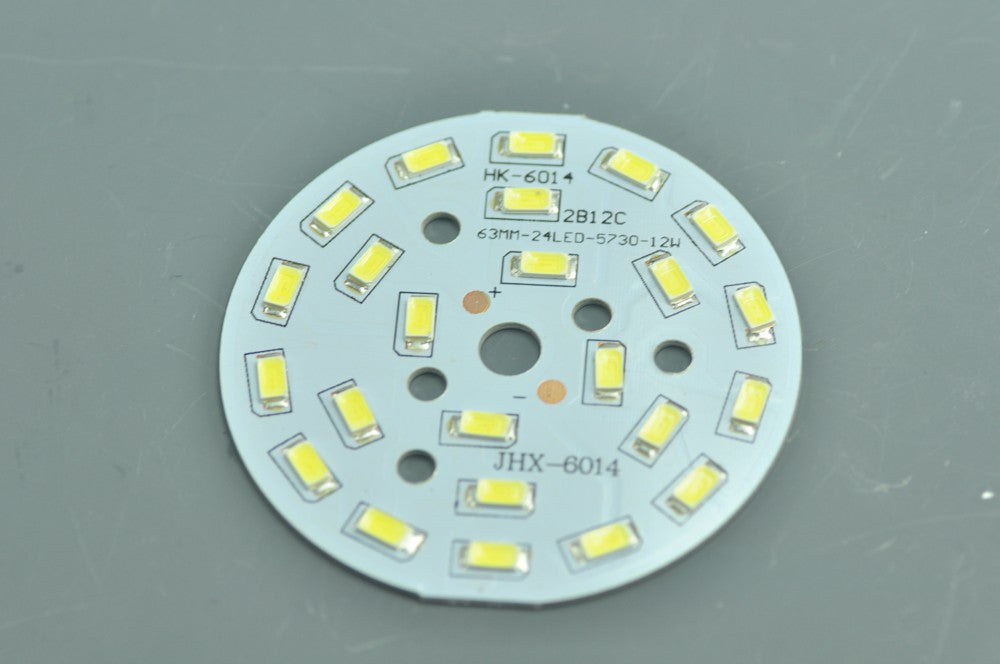

LED Dowlight 12W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Bulb
Pure White(6000-6500K)
$2.40
Skip to product information
724Light 12WÂ PCB For LED BULB/led downlight Dry ,this semi-finished chip to produce up to max 660 lumens. Color include:Pure White, Warm White.(We can do any color temperature led chip,if need custom/wholesale ,please contact info@724light.com:) Â
 Â
LED Dowlight 12W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Bulb
$2.40
 Â
| Product Specifications | |
|---|---|
| Part number: | PCBH-DW-H-5730-12W |
| Wattage: | 12W |
| Compares to: | 30 Watt Halogen Quartz |
| Color: | Pure White, Warm White |
| Color Temperature: | Pure White(6000-6500k),Warm White(2700-3500k) |
| Lumen: | 660 Lumens |
| LED Type: | SMD 5730 |
| LED Quantity: | 1x24 series |
| Beam Angle: | Approx. 140° |
| CRI: | 80 CR |
| Operating Temperature: | -40~+50 °C |
| Materials: | Aluminum |
| Operating Voltage: | 36-42V |
| Operating Current: | 260-300mA |
| Dimensions: | 65mm |
| Lifetime: | 40000 Hours |
| Standards And Certifications: | CE/FCC/ROHS Compliant |
| Warranty: | 2 Years |
| Weight : | 0.011 kg |
| Packaging list: | 1 pcs x  semi-finished pcb with led |
| Number into the box : | 100pcs |
