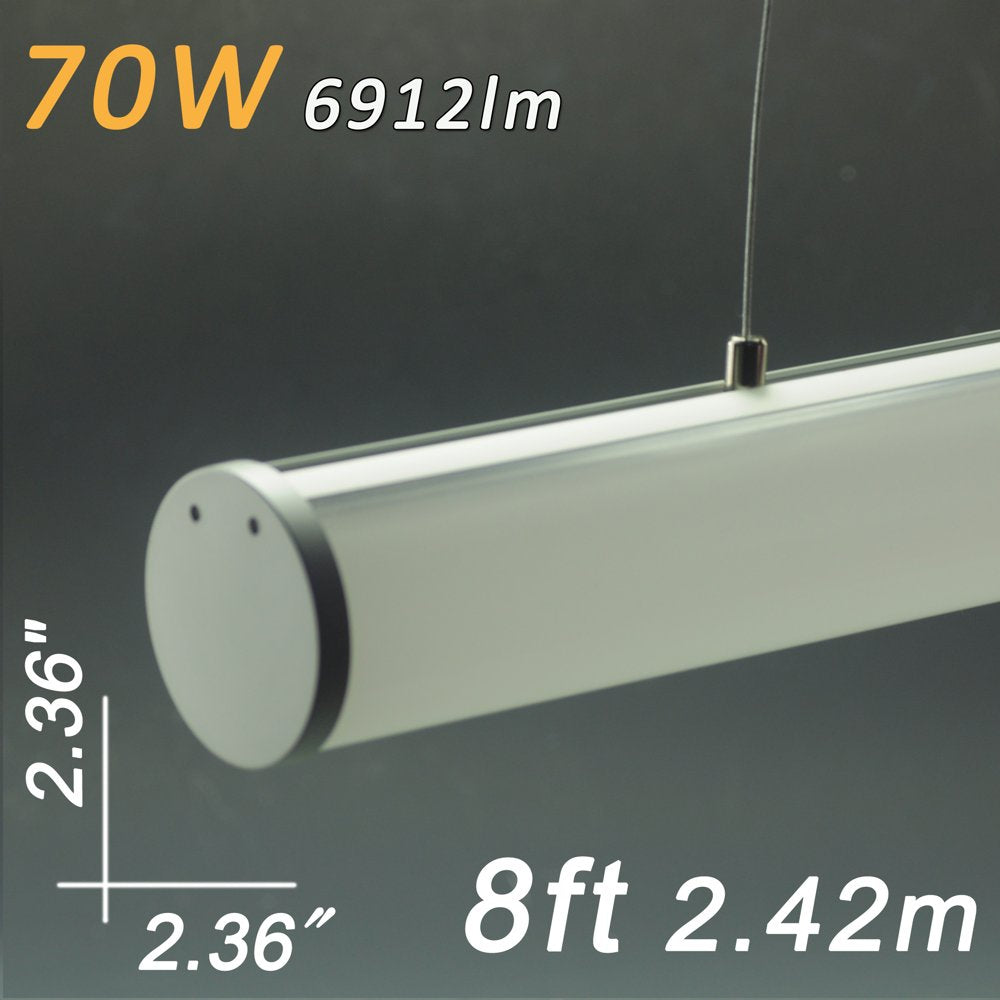

Linear Suspension Fixtures 8ft 2.4 Meter 2.36"x2.36" 70W DC 12V
Nature White(4000-4500K)
$232.00
Skip to product information
The 70W SPL-D-H-T60-series LED Suspension Linear is an energy-efficient, low maintenance alternative to traditional linear fluorescent in a variety of commercial, low bay lighting applications. Compact and sleek in design, the linear features a long rated life of 50,000 hours . Ideal for industrial, commercial and light assembly applications. DC12V input ,Consumes 70 Watts of power using 288PCS high power 5050 SMD LEDs. welcome wholesale , also If need any length and color please contact info@724light.com
Linear Suspension Fixtures 8ft 2.4 Meter 2.36"x2.36" 70W DC 12V
$232.00
| Product Specifications | |
|---|---|
| Part number: | SPL-D-H-T60-8F |
| Mount Type: | Suspended |
| Finish: | Silver Oxide |
| Length: | 96Â inch(2.4meter) |
| Operating Voltage: | DC 12V(With 1pcs Power Supply) |
| Power Consumption: | 70W |
| Replacement For: | T8 105W to 110W Fluorescent |
| Color option: | Pure White , Warm White,Cool White,Double White(PW+WW) |
| Color Temperature: | Pure White(6000-6500k),Warm White(2700-3500k),Cool White, |
| Lumen: | Pure White:6912 Lumens Warm White:6612 Lumens |
| LED Type: | SMD5050 |
| LED Quantity: | 288 |
| Beam Angle: | Approx. 120° |
| CRI: | 80 CR |
| Operating Temperature: | -40~+45 °C |
| Power Input: | DC12V |
| Dimmable: | No |
| Power Factor: | 0.97 |
| Connector: | OneSide AC 3Pin Power Cord Brown:L(LIVE) Blue: N(NEUTRAL) Yellow/Green:E(EARTH) |
| Lens: | Frosted |
| Lifetime: | 50000 Hours |
| Standards And Certifications: | CE/FCC/ROHS Compliant |
| Warranty: | 4 Years |
| Weight : | 1 kg |
| Dimensions(L*H*W): | 96" x 2.36"x2.36"(1440mm x 60mm x 60mm) |
| Packaging list : | 1* LED Linear 1* Power Supply 2 * Droplight Accessories package(steel line and Binding screw) |
| Housing: | |
| |
| Electrical: | |
| |
| Mounting : | |
| |
| Controller optional: | |
| |
| Applications: | |
| |
