T1000S SD Card LED Pixel Controller For LPD8806 6803 5-24V

1、T-1000S System features
  1、32—256 Gray level，Support software Gamma correction。
  2、Support the rules and special-shaped handle.
  3、Single-port output，can support 2048 pixels。
  4、Off-line(SD Card) control, play back content stored in the SD card.
  5、T-1000S store a maximum of 16 programs，copy multiple files to the SD card in order, after formatting the SD card as “FAT” format.
  6、The program must be named in orders . just as ：00_1.led, 01_1.led, 02_1.led.
  7、Compatible with single line or double line chips.
  NOTE：1. When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.

2、Support chips：

Chip type	Software code&           Controller type	Lamps/(MAX)	Note
LPD6803,D705,1101,6909, 6912	T-1000-6803	2048 pixels
LPD8806,LPD8809	T-1000-8806	2048 pixels
TM1803,TM1804,TM1809,TM1812	T-1000-TM	2048 pixels	TM1804 and TM1809 are divided into high and low
TM1903，TM1904，TM1909，TM1912	T-1000-TM19	2048 pixels
UCS6909，UCS6912，UCS7009，UCS5903	T-1000-UCS-32	2048 pixels
UCS1903，UCS1909，UCS1912	T-1000-UCS-256	2048 pixels	1903 and 1909 are divided into high and low
UCS3903	T-1000-UCS-1024	2048 pixels
DMX512	T-1000-DMX	170/512 pixels	Compatible with standard DMX512
WS2801,WS2803	T-1000-WS	2048 pixels
WS2811	T-1000-WS2811	2048 pixels	WS2811 be divided into high and low
DS189	T-1000-DS189	2048 pixels
TLS3001,TLS3002，TLS3008	T-1000-TLS	* pixels
P9813	T-1000-P9813	2048 pixels
SM16715	T-1000-SM16715	2048 pixels	SM16715 be divided into high and low
SM16716	T-1000-SM16716	2048 pixels
BS0901,BS0902	T-1000-0901	2048 pixels
BS0815	T-1000-0815	2048 pixels

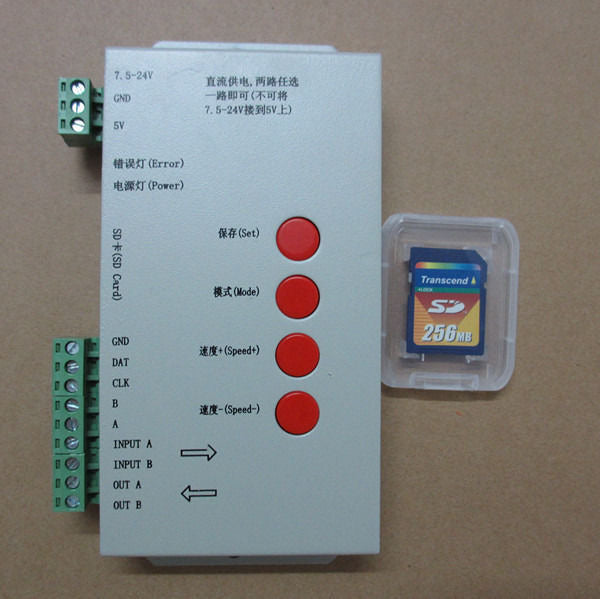

3、Definition of printing：

Buttons	Meaning
SET	Save Settings （ to save current settings file and the playback speed ）。
MODE	Change programs
SPEED+	Speed up	Press speed+ and speed- at the same time the program will play circularly.
SPEED-	Speed down

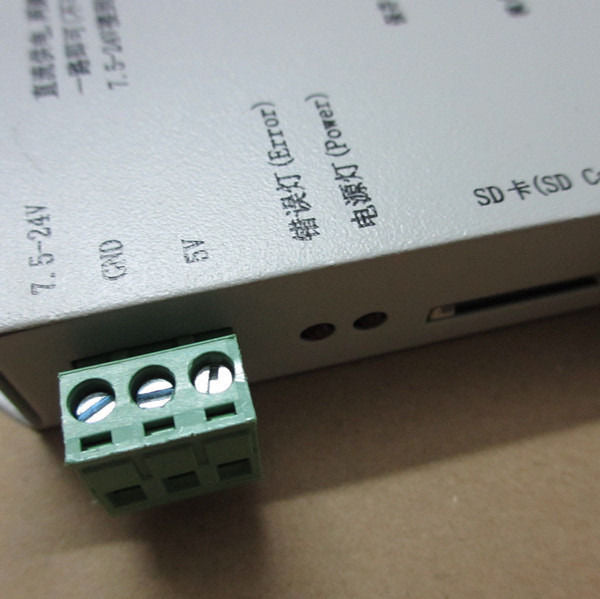

DC5V	+5V power input
GND	Power GND input
7．5-24V	+7.5-24V power input
POWER	Power indicator
ERROR	Error indicator
SD卡SD CARD	SD card slot

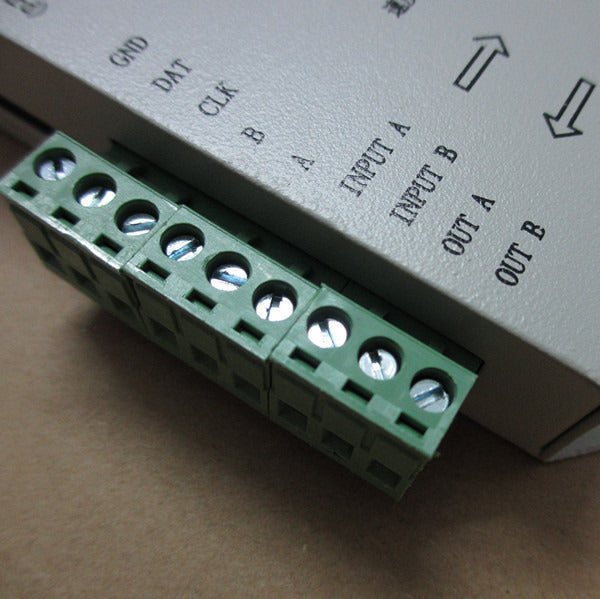

TTL signal（245/spi signal）：               RS485 signal.

CLK	Clock signal	B	Signal A / DMX+
DAT	Data signal	A	Signal B / DMX-
GND	Signal ground	GND	Signal ground

NOTE：For the TTL(SPI) signal, the controller signal ground must connect to the LED ground directly.

4、 Mode of connection
1. Multiple T-1000S controllers can be cascaded together and work synchronously.
2. T-1000S one TTL(SPI) signal and one RS485 signal port output，can control 2048 pixels/lamps；
3. When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller. 4. If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller B interface with LED lamps B(DMX-),
5. If you need to control a new IC type by the controller， software code mode is：T-1000-IC model.
5、Special parameters
        Memory card：
           type：SD card（suggest using high-speed SD card)
           Capacity：128MB—2GB
           Format：FAT
           Store file：*.led
    Physical parameters:
           Working temperature ：-30℃—85℃
           Working voltage：DC5V / DC7.5-24V
           Working power：1W
  Size：L165mm×W80mm×H30mm
  Weight：0.35KG
  Signal port：3pin connect port
  Note：
  Before copy files to SD card ，The SD card must be       formatted as FAT format

Package included:
  1x RF Controller
