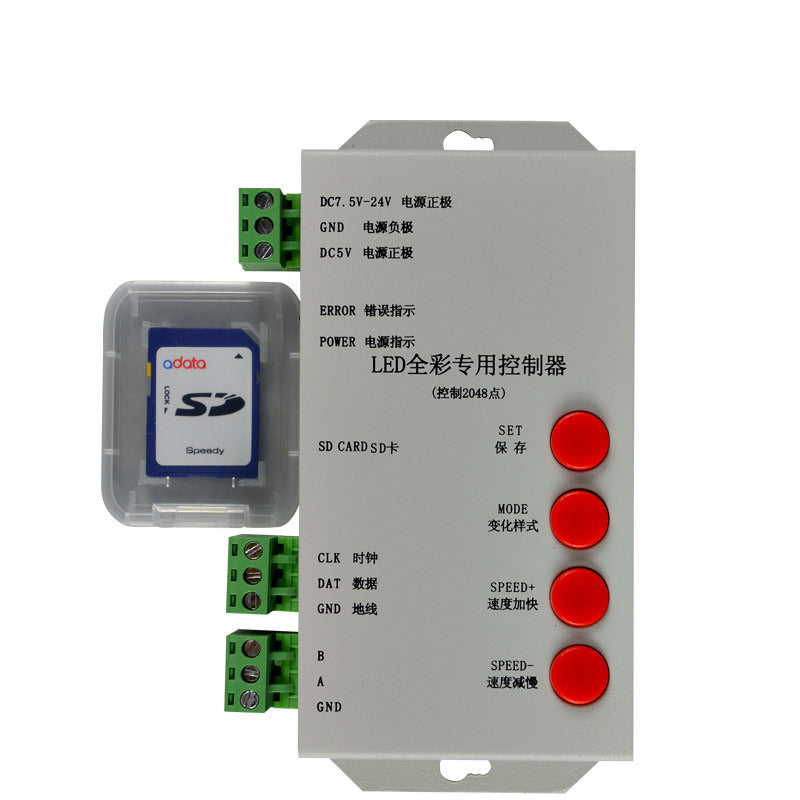

T1000S SD Card LPD6803 LED 2048 DC5~24V Pixels Controller
$31.50
Skip to product information
Memory card:Â
Definition of buttons                       Â
 Â
 Features:
  1. 256 Gray,Gamma correction processing software.
  2. Support the rules and special-shaped handle.
  3. Controller, a port output, may bring 1024/2048 light.
  4. Off-line control, play back content stored in the SD card
  5. T-1000C store a maximum of 16 documents
  Note: The model T-1000S with one port output, When it control 512  pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically  Connection diagram:           Â
Regulatory function button: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
 System architecture diagram:
  Specific parameters:
  Memory Card:
  . Type: SD Card
  . Capacity: 128MB-2GB
  . File Format: FAT file format
  . Store files: *.led
  Physical parameters:
  . Weight:0.2kg
  . Size:122mm*67mm*25mm
  . Temperature :-40-85 Degree
  . Volgate: DC5V / DC7.5-24V
  . Power:3W
   Note:
  To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
  SD card must be formatted as "FAT" format. Â
 SD Card* 1piece
T1000S SD Card LPD6803 LED 2048 DC5~24V Pixels Controller
$31.50
type:SD card
Capacity:128MB-2GB
Store file:*.led
Physical parameters:
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Working power:2W
Weight:0.3kg
Size:L165mm×W80mm×H30mm
Signal port:3pin connect port
2.Support point, line, surface, rules and special-shaped handle.
3.Single-port output,can support 2048 pixels.4.Multiple controllers can be cascaded together and work synchronous,
play back content stored in the SD card.
5.Compatible with single line or double line chips.
NOTE:
When T1000S controller load less than 512 pixels the frame rate can reach 30fps.
When T-1000s control more than 512 pixels the frame rate will slow down automatically.
Capacity:128MB-2GB
Store file:*.led
Physical parameters:
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Working power:2W
Weight:0.3kg
Size:L165mm×W80mm×H30mm
Signal port:3pin connect port
T-1000S System features
1.32-65536 Gray,Support software Gamma correction.2.Support point, line, surface, rules and special-shaped handle.
3.Single-port output,can support 2048 pixels.4.Multiple controllers can be cascaded together and work synchronous,
play back content stored in the SD card.
5.Compatible with single line or double line chips.
NOTE:
When T1000S controller load less than 512 pixels the frame rate can reach 30fps.
When T-1000s control more than 512 pixels the frame rate will slow down automatically.
Support IC (one IC symbolize a pixel point )Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
| IC Type | LedEdit Software      Corresponding mode | Drive Pixel |
| TM1803,TM1804,TM1809, Â Â Â Â Â TM1812 | T-1000S-TM1803 | 2048pixel |
| TM1829 | T-1000S-TM1829 | 2048pixel |
| UCS1903,UCS1903B ,UCS1909, Â Â Â Â Â UCS1912 | T-1000S-UCS1903 | 2048pixel |
| UCS2903,UCS2909,UCS2912, | T-1000S-UCS2903 | 2048pixel |
| UCS3903 | T-1000S-UCS1024 | 2048pixel |
| UCS6909,UCS6912,UCS7009, Â Â Â Â Â UCS5903 | T-1000S-UCS6909 | 2048pixel |
| TA9909 | T-1000S-TA9909 | 2048pixel |
| MBI6021 | T-1000S-MBI6021 | 2048pixel |
| P9813 | T-1000S-P9813 | 2048pixel |
| WS2811 | T-1000S-WS2811 | 2048pixel |
| INK1003 | T-1000S-INK1003 | 2048pixel |
| TLS3100 | T-1000S-TLS3100 | 2048pixel |
| DMX512 | T-1000S-DMX | 170/512pixel |
| SM16711 | T-1000S-SM16711 | 2048pixel |
| SM16716 | T-1000S-SM16716 | 2048pixel |
| SM16726 | T-1000S-SM16726 | 2048pixel |
| LPD6803,D705,1101 | T-1000S-6803 | 2048pixel |
| LPD8806,LPD8809 | T-1000S-8806 | 2048pixel |
| LPD1882,LPD1889 | T-1000S-1882 | 2048pixel |
| LPD6812 | T-1000S-6812 | 2048pixel |
| LPD6813 | T-1000S-6813 | 2048pixel |
| TM1903,TM1904,TM1909, Â Â Â Â Â TM1912 | T-1000S-TM1903 | 2048pixel |
| TM1829 | T-1000S-TM1829 | 2048pixel |
| UCS1903,UCS1903B ,UCS1909, Â Â Â Â Â UCS1912 | T-1000S-UCS1903 | 2048pixel |
| UCS2903,UCS2909,UCS2912, | T-1000S-UCS2903 | 2048pixel |
| DMX-Monochrome | T-1000S-DMXMonochrome | 1536pixel |
| Monochrome | T-1000S-Monochrome | 2048pixel |
| WS2801,WS2803 | T-1000S-WS2801 | 2048pixel |
| D7710,D7720 | T-1000S-D7710 | 2048pixel |
| QC1109 | T-1000S-QC1109 | 2048pixel |
| TLS3001,TLS3008 | T-1000S-TLS3001 | pixel |
| APA102 | T-1000S-APA102 | 2048pixel |
| MY9221 | T-1000S-MY9221 | 2048pixel |
| BS0815 | T-1000-0815 | 2048pixel |
| GW6203 | T-1000S-GW6203 | 2048pixel |
| BS0825 | T-1000S-0825 | 2048pixel |
| BS0901 | T-1000S-0901 | 2048pixel |
| HL32 | T-1000S-HL32 | 2048pixel |
| HL1809 | T-1000S-HL1809 | 2048pixel |
| HL2803 | T-1000S-HL2803 | 2048pixel |
Definition of buttons                       Â
| Buttons | Definition | |
| SET | Save Settings ( to save current settings file and the playback speed ) | |
| MODE | Change programs | |
| SPEED+ | Speed up | Press speed+ and speed- on the same time the program       will play circularly. |
| SPEED- | Speed down | |
| DC5V | +5V power input |
| GND | Power GND input |
| 7.5-24V | +7.5-24V power input |
| POWER | Power indicator |
| ERROR | Error indicator |
| SD CARD | SD card slot |
  1. 256 Gray,Gamma correction processing software.
  2. Support the rules and special-shaped handle.
  3. Controller, a port output, may bring 1024/2048 light.
  4. Off-line control, play back content stored in the SD card
  5. T-1000C store a maximum of 16 documents
  Note: The model T-1000S with one port output, When it control 512  pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically  Connection diagram:           Â
| 7.5V-24V | DC power input, to provide two sets of power input, select a group can be. |
| 5V | Power Ground. |
| GND | Error indicator |
| ERROR | Power LED |
| POWER | SD card slot |
| SD CARD | Output CLK |
| CLK | Output DATA |
| DAT | Signal Ground |
| GND | Â |
| B Â Â Â Â Â A |
Compatible with DMX signal, differential A, and differential B |
| GND | Signal Ground |
| SET | Save Settings to save current settings file and the playback speed |
| MODE | Switch File |
| SPEED+ | Speed up the playback speed |
| SPEED- | Slow down the playback speed |
  Specific parameters:
  Memory Card:
  . Type: SD Card
  . Capacity: 128MB-2GB
  . File Format: FAT file format
  . Store files: *.led
  Physical parameters:
  . Weight:0.2kg
  . Size:122mm*67mm*25mm
  . Temperature :-40-85 Degree
  . Volgate: DC5V / DC7.5-24V
  . Power:3W
   Note:
  To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
  SD card must be formatted as "FAT" format. Â
  TTL signal(245/spi signal):   RS485 signal.                                Â
NOTE:For the TTL(SPI) signal, the controller signal ground must connect to
  the LED lamp ground directly. Â
| CLK | Clock signal | B | Signal A / DMX+ |
| DAT | Data signal | A | Signal B / DMX- |
| GND | Signal ground | GND | Signal ground |
Package List:
 T1000S Controller* 1piece SD Card* 1piece
