V Style LED Aluminium Extrusion LED Aluminum Channel 1 meter(39.4inch) with Reflector

This V U Aluminium Profile LED Extrusion can be used for under cabinet lighting, furniture lighting, night lights, retail display lights, window lights , exhibitions, pictures, and many other purposes. (Big order/need customized aluminium LED Channel, info@724light.com)

• Length:1 meter(39.4 inch)
• Color:Silver
• For Strip Width:For Strip PCB 8mm,10mm, up to max width 10 mm
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover material:PC Light Diffusion
• Cover Color: Frosted, Clear
• Waterproof Type: Non(Indoor using)
• Light Source:SMD flexible or Rigid Led Strip(5050,3528,5630,5730 and so on)
• Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)
• Insize Dimension:12.6mm Width

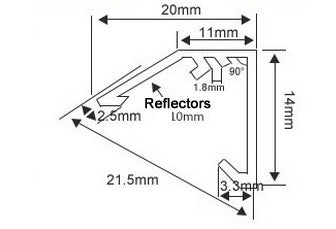

• Dimensions(HxW):13.9 mm x 20.6 mm(see follow first picture)


• Package Includes:
• 1 x LED Strip Aluminium Profile
• 1 x Reflector

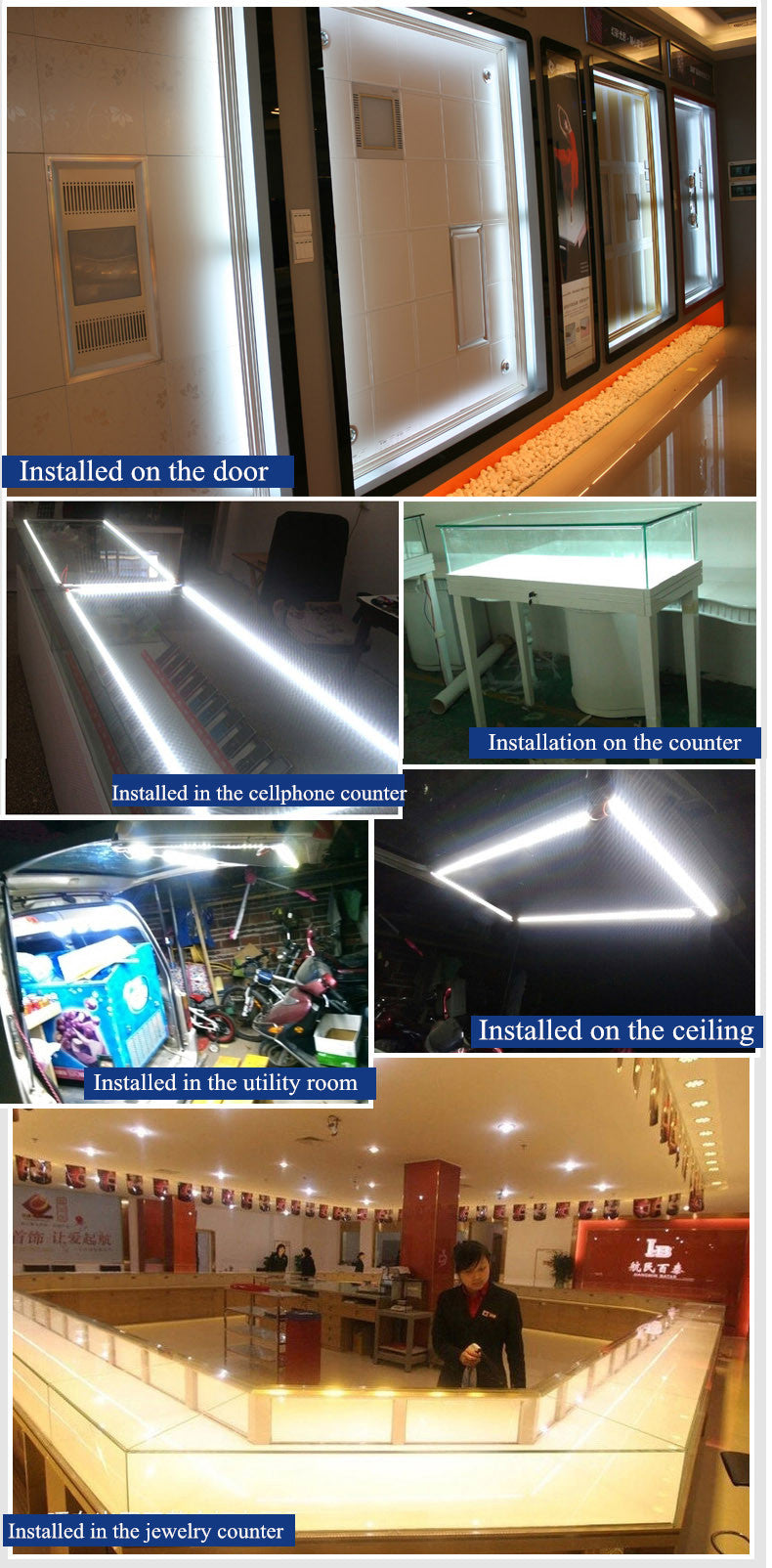

• Application
• - Shelves
• - Stands for fairs
• - Furniture Construction
• - Kitchens
• - Cabinets
• - Interior


• Notice:
• 1. If need 2 meter(200cm) channel , the min order is 10pcs (20meter),please cotact us
• 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.

Jewelry Table Light 002

Images	Part Number	Type	Description
	PB-AP-HQ-V001-0.5M	LED Aluminium Channel	0.5 Meters V Style LED Aluminium Channel with Reflector
	PB-AP-HQ-V001-0.6M	LED Aluminium Channel	0.6 Meters V Style LED Aluminium Channel with Reflector
	PB-AP-HQ-V001-1M	LED Aluminium Channel	1 Meters V Style LED Aluminium Channel with Reflector
	PB-AP-HQ-V001-1.2M	LED Aluminium Channel	1.2 Meters V Style LED Aluminium Channel with Reflector
	PB-AP-HQ-V001-1.5M	LED Aluminium Channel	1.5 Meters V Style LED Aluminium Channel with Reflector
	PB-AP-HQ-V001-2M	LED Aluminium Channel	2 Meters V Style LED Aluminium Channel with Reflector
	PB-AP-AC-TB-01	Small line tube	Small Tubing To Run Wire Through For V Style LED Aluminium Channel
	PB-AP-HQ-V001-C	Connector	For PB-AP-HQ-V001 Connector,90/180/135/270 Degree
