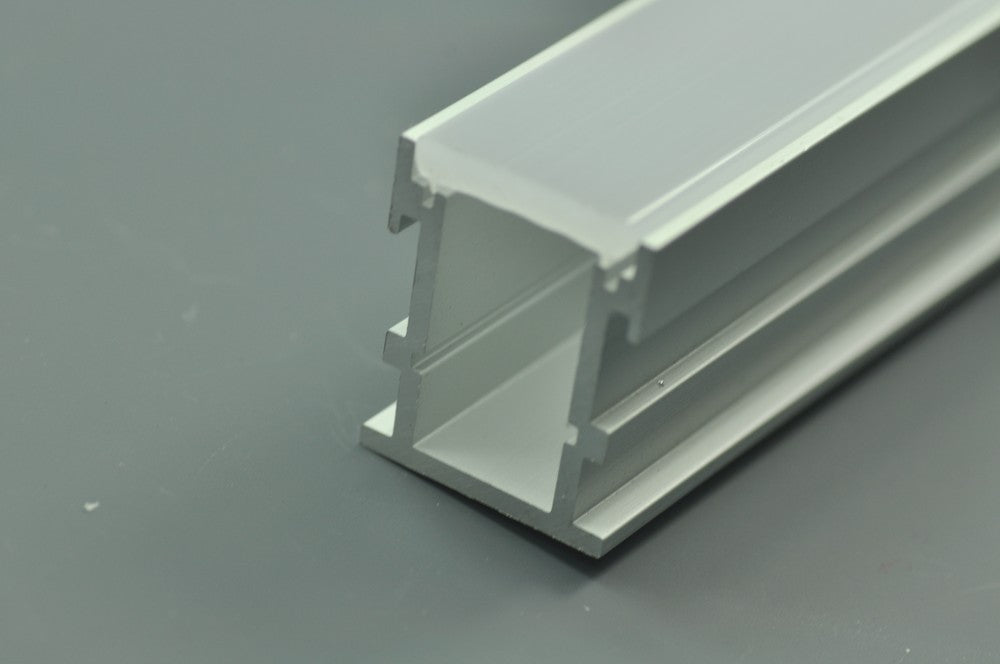

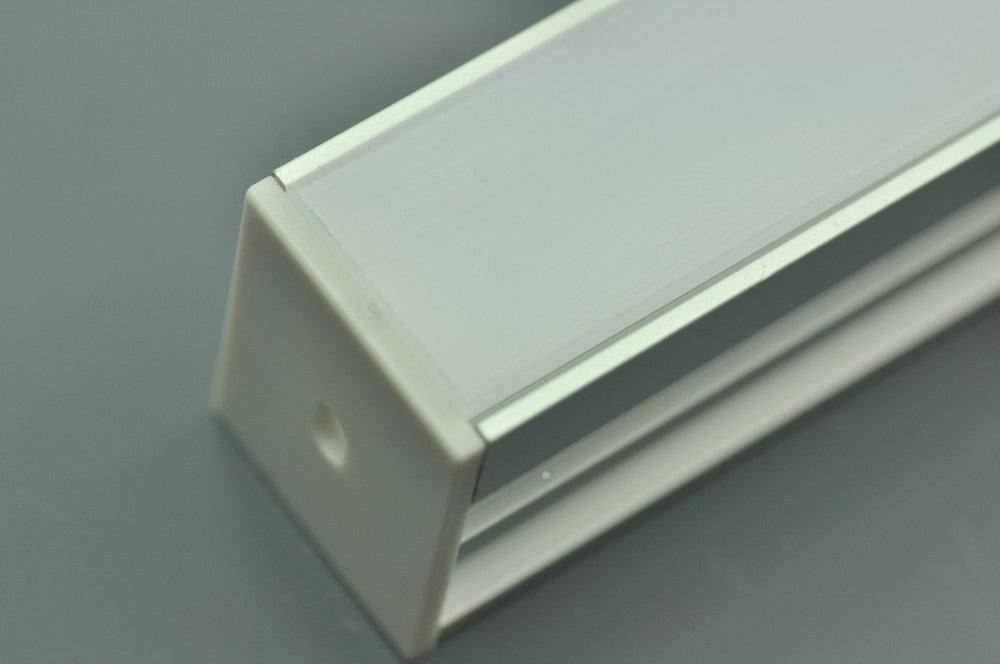

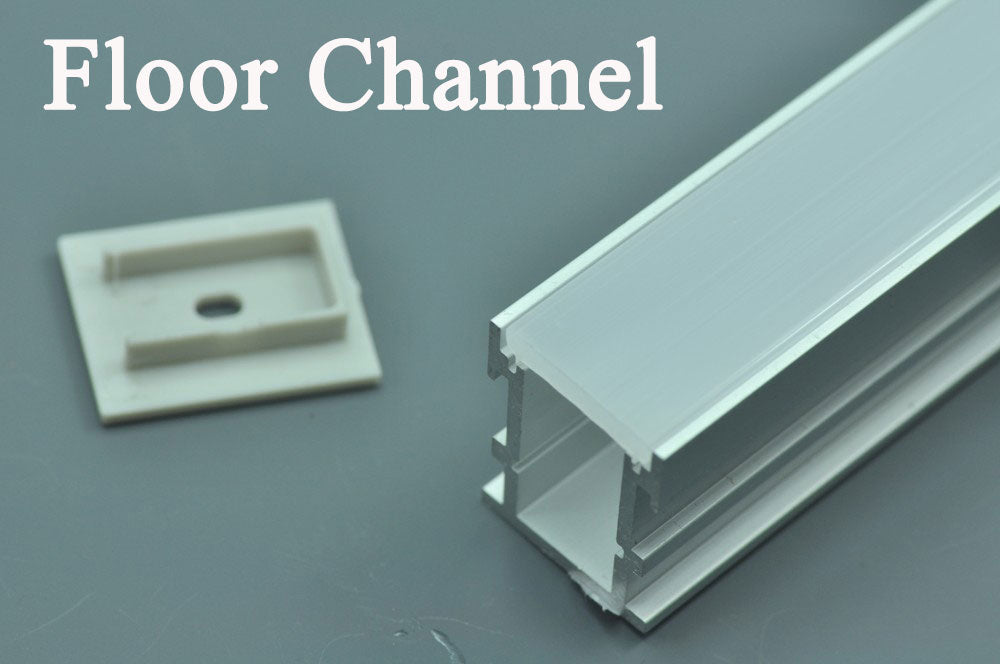

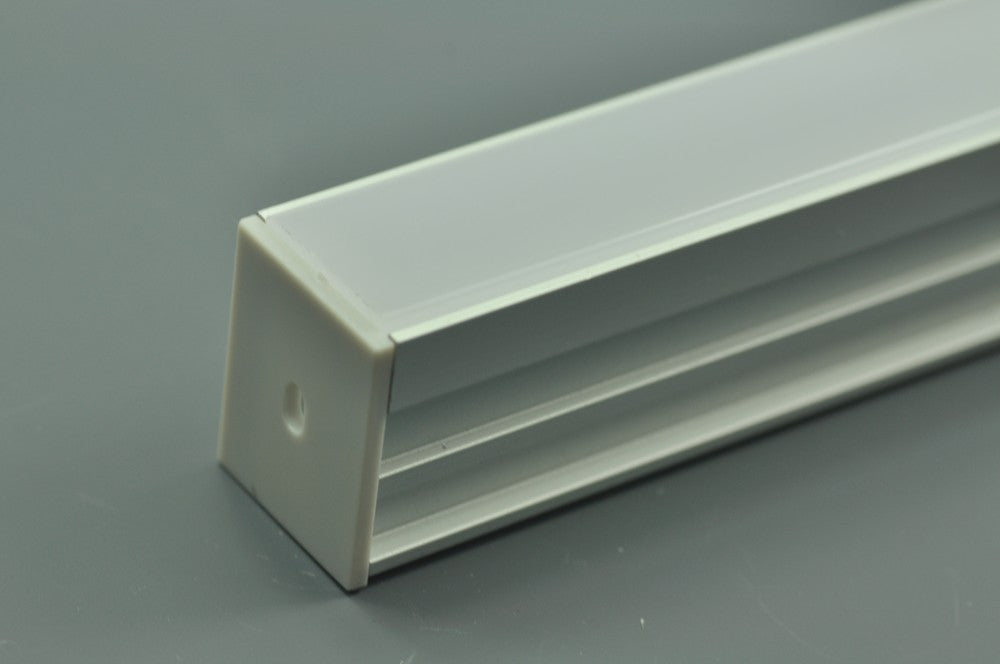

Waterproof LED Floor Channel Aluminum LED Profile(WxH):12.2 mm x 20.1 mm 1 meter (39.4inch) Diffuser 3mm thickness

This LED aluminium Channel can be used for floor with strengthen 3mm waterproof Diffuser.The Price include the cover and end caps. (Big order/need customized aluminium LED Channel, info@724light.com)

• Length:1 meter(39.4 inch)
• Color:Silver
• For Strip Width:For Strip PCB 8mm,10mm, up to Inside max width 12.2 mm,high 20.5mm
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover material:PC Light Diffusion
• Cover Color: Frosted, Clear
• Waterproof Type: Waterproof
• Light Source:SMD flexible or Rigid Led Strip(5050,3528,5630,5730 and so on)
• Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)

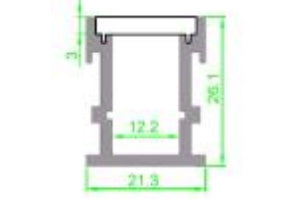

• Out Dimensions(WxH):21.3 mm x 26.1 mm(see follow first picture)


• Package Includes:
• 1 x LED Aluminium Channel
• 1 x LED Channel Cover

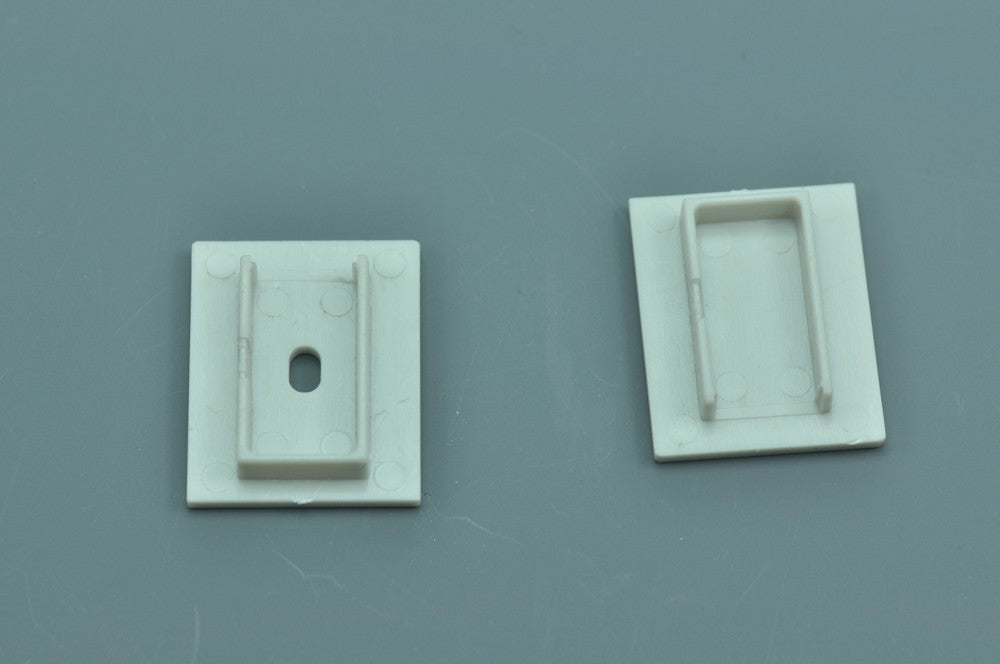

• 2 x End Caps(one blank and one with hole)


• Application
• - Cabinets
• - Floor
• - Furniture Construction
• - Kitchens
• - Interior


• Notice:
• 1. If need 2 meter(200cm) channel , the min order is 10pcs (20meter),please cotact us(1meter pcs)
• 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.
