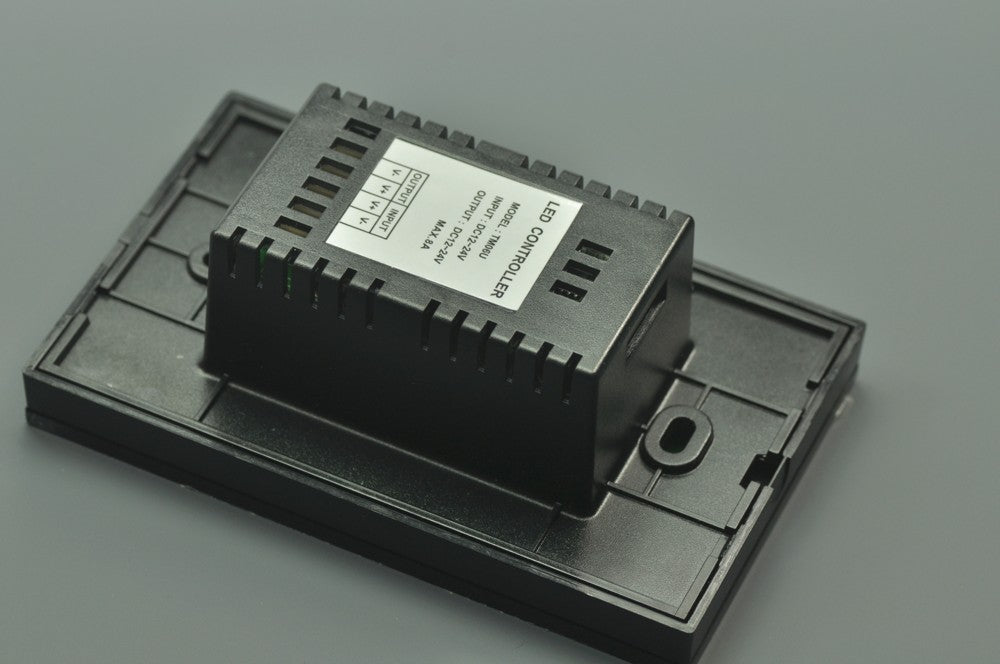

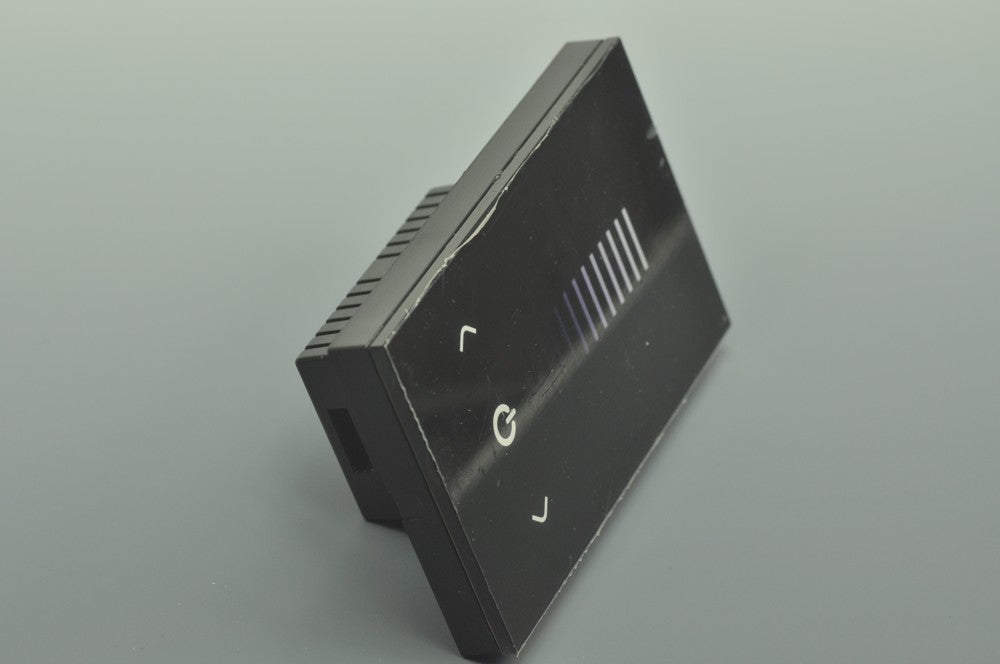

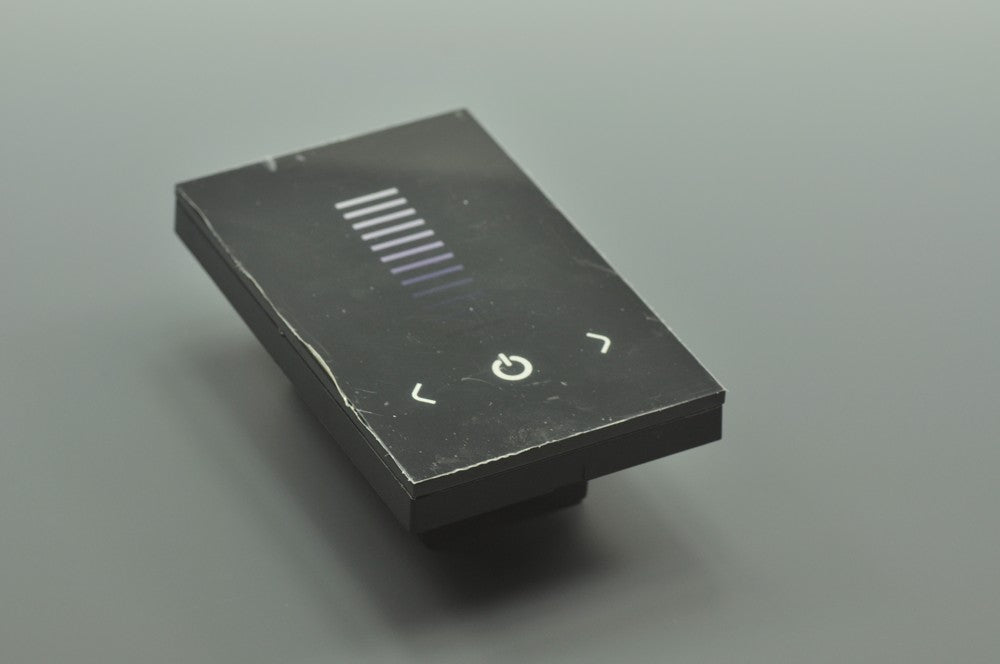

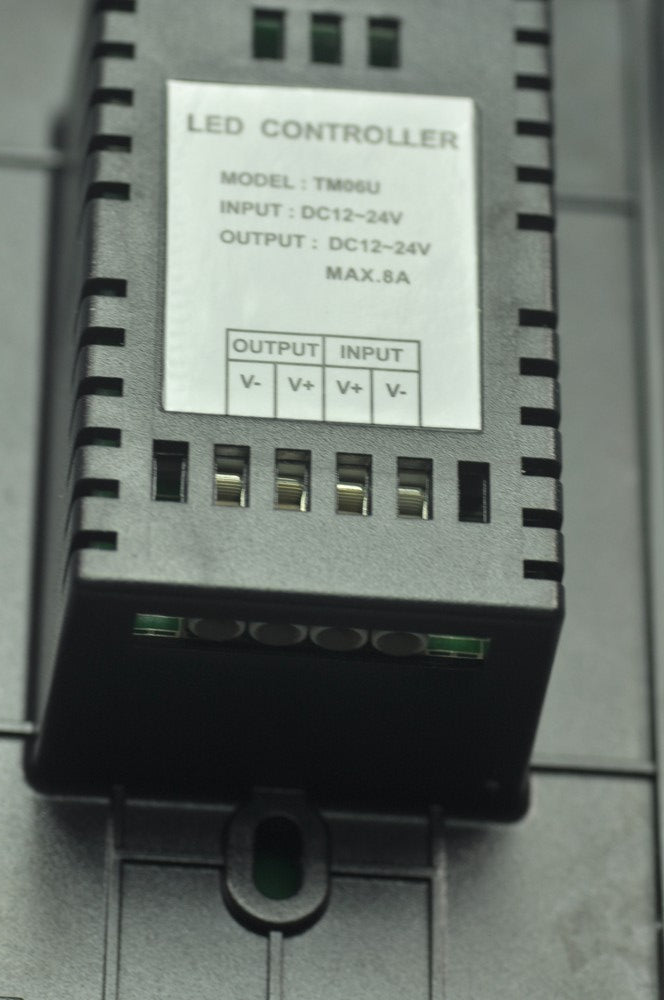

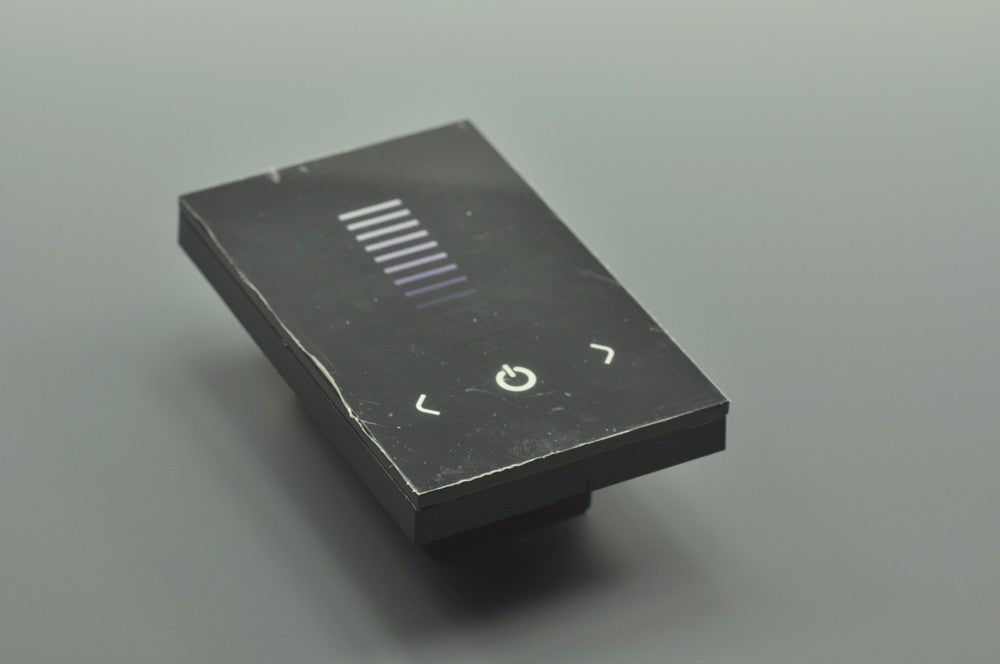

LED Dimmer Switch 12V-24V Brightness Controller For Single Color Strip

Touch paneldimmer is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controllinga variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc.,it has many advantages such as convenient to connect, easy to use and others.

• Working temperature: -20-60°
• Supply voltage: DC12~24V
• Output voltage: DC12~24V
• Output: 1 channel
• Connection mode: common anode
• External dimension: L74 Χ W120 Χ H41.8mm
• Packing size: L150 Χ W100 Χ H57 mm
• Net weight: 150g
• Gross weight: 207g
• Static powerconsumption: <1W
• Output current: <8A
• Output power:12V<96W, 24V<192W

• 1*LED Touch Panel Controller
